2003issue C121-16

Fractional MACD and linear-regression reversal construction

A historical workflow builds fractional-momentum and fractional-macd from the same close series used for a short linear-regression-curve, then uses trigger-activation so each long or short rule can be switched on or off. The two families stay separate constructions rather than a single blended overlay.

  • Fractional-momentum and fractional-macd rewrite momentum and MACD as ratios of closes or of simple averages of close, and they use a unit line as the reference instead of a zero line.
  • A comparison chart can hold plain momentum, plain MACD, fractional-momentum, and fractional-macd at once, with trigger-activation turning each long or short rule on or off.
  • MACD-family crosses use a spurious-cross-guard after the first two bars, because the oscillator and its smoothed average are identical on the first bar and would otherwise fire a false cross.
  • A five-bar linear-regression-curve of close is a separate baseline: linear-regression-reversal flips when the one-bar change in that fit changes sign, and a worksheet form can label long, short, or neutral from the slope.
Entries in this reading3 entries
Linear regression112 readingsCurrent trackMACD115 readingsPrice-indicator divergence142 readings

Two families from one close series

The archive workflow starts from a single close series and builds two indicator families side by side. One family rewrites momentum and MACD as ratios referenced to a unit line. The other family fits a short linear-regression-curve of close and reads local swing direction from that fit.

The constructions are meant to be held as separate on-off rules. A comparison strategy can keep all four oscillator forms in view at once, then use trigger-activation so any long or short rule is live or silent. The linear-regression family is the explicit baseline for swing direction, not a layer mixed into the oscillator plot.

Fractional-momentum and fractional-macd

Fractional-momentum is the current close divided by the close a chosen number of bars earlier. Its horizontal reference is the unit line at 1, not a zero line.

Fractional-macd is the short-period simple average of close divided by the long-period simple average of close, again referenced to 1. Smoothed-fractional-macd is a moving average of that ratio and is the signal line used for cross events.

A comparison strategy can hold plain momentum, plain MACD, fractional-momentum, and fractional-macd together. Each long or short rule is enabled or disabled by setting trigger-activation to 1 or 0.

When the oscillator family may enter

Fractional-momentum long and short entries require the ratio to sit on the correct side of 1 and to be at least as extreme as its prior bar. The buy or sell-short then waits for the next bar and is placed at a stop one point above the high.

Both MACD-family entries wait until after the second bar. They fire on a cross of the oscillator through its smoothed average. A spurious-cross-guard is required because the oscillator and that average are identical on the first bar and would otherwise confirm a false cross. The same bar-count check ignores the first two bars for that reason.

Linear-regression-curve and linear-regression-reversal

A five-bar linear-regression-curve of close, with zero displacement, is the explicit baseline used to identify local swing direction. Linear-regression-reversal is a binary state. It changes sign when the difference between successive regression values reverses relative to the prior difference.

A worksheet construction of the same five-bar fit can skip any series with fewer than five closes. It then labels long, short, or neutral from whether the slope of that fit is positive, negative, or zero.

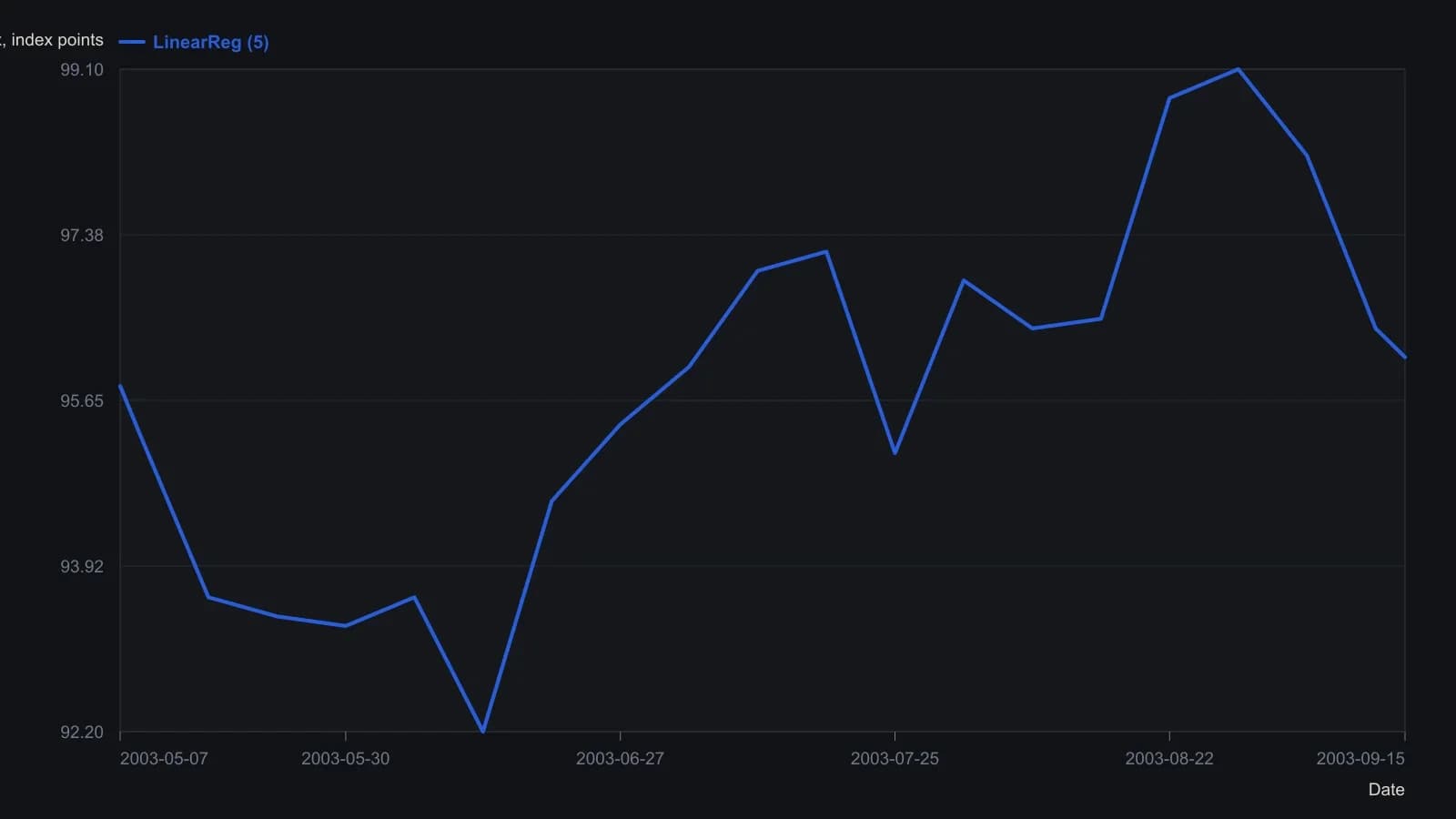

US Dollar Index five-period linear-regression curve, May–September 2003

The short linear-regression fit of the US Dollar Index close falls from the mid-95s into a mid-June low near 92, then climbs toward 99 in late August before giving back the last swing. A trader should read slope changes on this curve as the same information the linear-regression-reversal construction records as a +1/−1 flip. Weekly levels were read from the plotted LinearReg line against the 0.50 index grid; the screenshot header states the window 7 May–15 September 2003 and a last index print of 96.08.
The short linear-regression fit of the US Dollar Index close falls from the mid-95s into a mid-June low near 92, then climbs toward 99 in late August before giving back the last swing. A trader should read slope changes on this curve as the same information the linear-regression-reversal construction records as a +1/−1 flip. Weekly levels were read from the plotted LinearReg line against the 0.50 index grid; the screenshot header states the window 7 May–15 September 2003 and a last index print of 96.08.US Dollar Index · Daily · 2003-05-07T00:00:00.000Z to 2003-09-15T00:00:00.000Z

Star’s tip plots a five-period linear regression of the close with zero displacement. Digitised points are approximate to one decimal on a 0.50 grid. The 96.08 header figure is the last close of the index, not a tabulated LinearReg print, so the final curve point is the last green-line reading (~96.1).

One-sided testing or stop-and-reverse

The same chart can be restricted to long-only or short-only testing by activating both sides and then reformatting the unwanted side as an exit-only signal. When both sides remain live entries, the chart runs as stop-and-reverse. That choice is the stop-and-reverse-toggle: keep both a long trigger and a short trigger, or reformat the opposite trigger as exit-only, to choose two-sided versus one-sided testing.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
