Square-root lookbacks for combined MACD and RSI

A daily Dow Jones Industrial Average chart from September 2013 through February 2014 displayed MACD and RSI built from square-root operations on the index. Periods came from price-derived iterations, and difference-line action, signal-line crosses, and dual RSI crosses were the marks shown for a short swing.

  • Successive square-root iterations of one index supplied the lookback lengths for both MACD and two overlaid RSI lines.
  • The MACD difference subtracted the second-iteration slow average from the third-iteration fast average, and the signal line smoothed that difference with the fourth iteration.
  • Both RSI lines read the first-iteration series and differed only by whether the second or third iteration set the period.
  • Levels, turns, and crosses, including stretches with no dual RSI cross, were presented as the marks of a short swing, without a multi-year extraction of net point results.
Entries in this reading2 entries
Current trackMACD115 readingsRelative Strength Index186 readings

What the daily chart displayed

A daily Dow Jones Industrial Average chart from September 2013 through February 2014 displayed both MACD and RSI built from square-root operations on the index.

Square-root-iteration names a repeated square-root transform of a price series used to produce a lookback or smoothing length for an indicator. Those iterations set the time elements for both tools on the same chart.

MACD lengths from later iterations

The MACD slow average used the second square-root-iteration and the fast average used the third. The macd-difference was the fast result minus the slow result after both averages received those iteration-based lengths.

The signal-line was a moving average of that macd-difference. Its length came from the fourth square-root-iteration.

Two RSI lines on one series

A dual-rsi-overlay placed two relative-strength calculations on one series. The first square-root-iteration was the data input, the second iteration set the slower RSI, and the third iteration set the faster RSI.

The two RSI lines therefore differed only by which iteration set each period.

Periods taken from price

Indicator periods were taken from numbers derived from price. That is price-derived-periodicity: choosing indicator time elements from numbers computed from price instead of from a fixed calendar default.

Those periods were described as related to, but not the same as, fully pairing price with time.

Marks on a short swing

Difference-line levels and turns, signal-line crosses, and dual-rsi-overlay crosses were presented as the observable marks for a short swing. Those marks included stretches with no dual-RSI cross.

No multi-year extraction of net point results for the construction was reported.

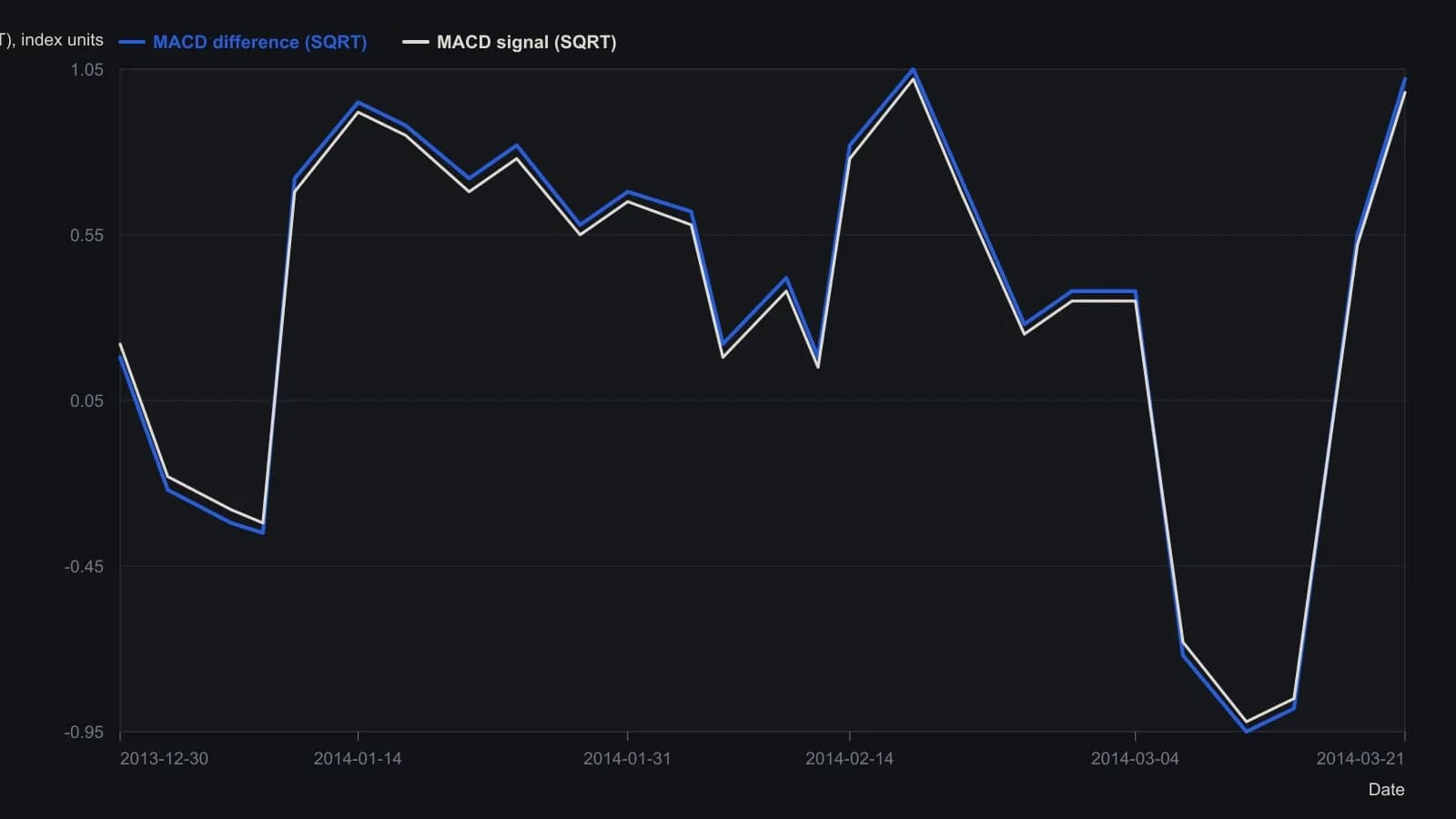

DJIA with square-root MACD and dual RSI

From late December 2013 through mid-February 2014 the daily Dow swings while the square-root MACD difference and signal lines turn together, and the fast (pink) and slow (blue) RSI lines cross on the same price-derived lookbacks. Values were read off the plotted daily chart, not from a table.
From late December 2013 through mid-February 2014 the daily Dow swings while the square-root MACD difference and signal lines turn together, and the fast (pink) and slow (blue) RSI lines cross on the same price-derived lookbacks. Values were read off the plotted daily chart, not from a table.DJIA · daily · 2013-12-30T00:00:00.000Z to 2014-02-18T00:00:00.000Z

MACD uses later square-root iterations for the fast, slow, and signal averages; both RSI lines are built from the first three iterations of the same price series. Dates and oscillator readings are approximate because they were taken from the raster.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
