1994issue C111-8

Constructing entry and exit on a relative-strength MACD

A relative-strength ratio, one security close divided by a benchmark close, replaces raw price as the MACD input. Specified pairings then use polarity, a trigger-line cross, and in one case a one-point trailing stop as bar-by-bar entry and exit rules.

  • A relative-strength ratio is formed by dividing a security close by a benchmark close and is used as the series on which MACD is calculated.
  • One specified ratio MACD uses 12- and 26-period averages, with a 9-period average of the MACD as the trigger line.
  • Three pairings buy and sell from polarity against zero and the signal average, from the sign of a ratio MACD histogram, or from a next-open trigger-line rule.
  • The histogram pairing adds a one-point trailing stop as a separate exit, and weekly compression applies the same MACD and scan rules to weekly bars.
Entries in this reading3 entries
Trailing stop87 readingsCurrent trackMACD115 readingsRule-based entry174 readings

How the relative-strength ratio is formed

A relative-strength ratio is formed by dividing a security close by a benchmark close. That constructed series is then used as the input on which MACD is calculated, in place of raw price.

How the ratio MACD and trigger line are specified

One specified MACD on that ratio uses 12- and 26-period averages. A 9-period average of the MACD is the trigger line. The trigger line is the signal average of the ratio MACD, used to define a cross and to confirm polarity.

A database filter can keep only cases in which the ratio MACD crosses from below its trigger line to above it.

How entry and exit are paired

One pairing buys on the close when the ratio MACD is above both zero and its signal average, and sells on the close when the ratio MACD is below both zero and its signal average.

Another pairing buys when a histogram of ratio MACD minus its signal is above zero and sells when that histogram is below zero. The histogram pairing also specifies a one-point trailing stop as an additional exit. That trailing stop follows price by a fixed distance and can force an exit independently of the MACD rules.

A third pairing buys at the next open when the ratio MACD is above its trigger line and above zero, and exits a long at the next open when the ratio MACD is below the trigger line.

Each pairing is a rule-based entry. The stated buy, sell, or exit condition is applied the same way on every bar.

Weekly compression and scaling

Daily relative-strength charts can be compressed to weekly bars before the same MACD and scan rules are applied. Scaling the ratio by 10 is stated as a viewing convenience that does not change the MACD.

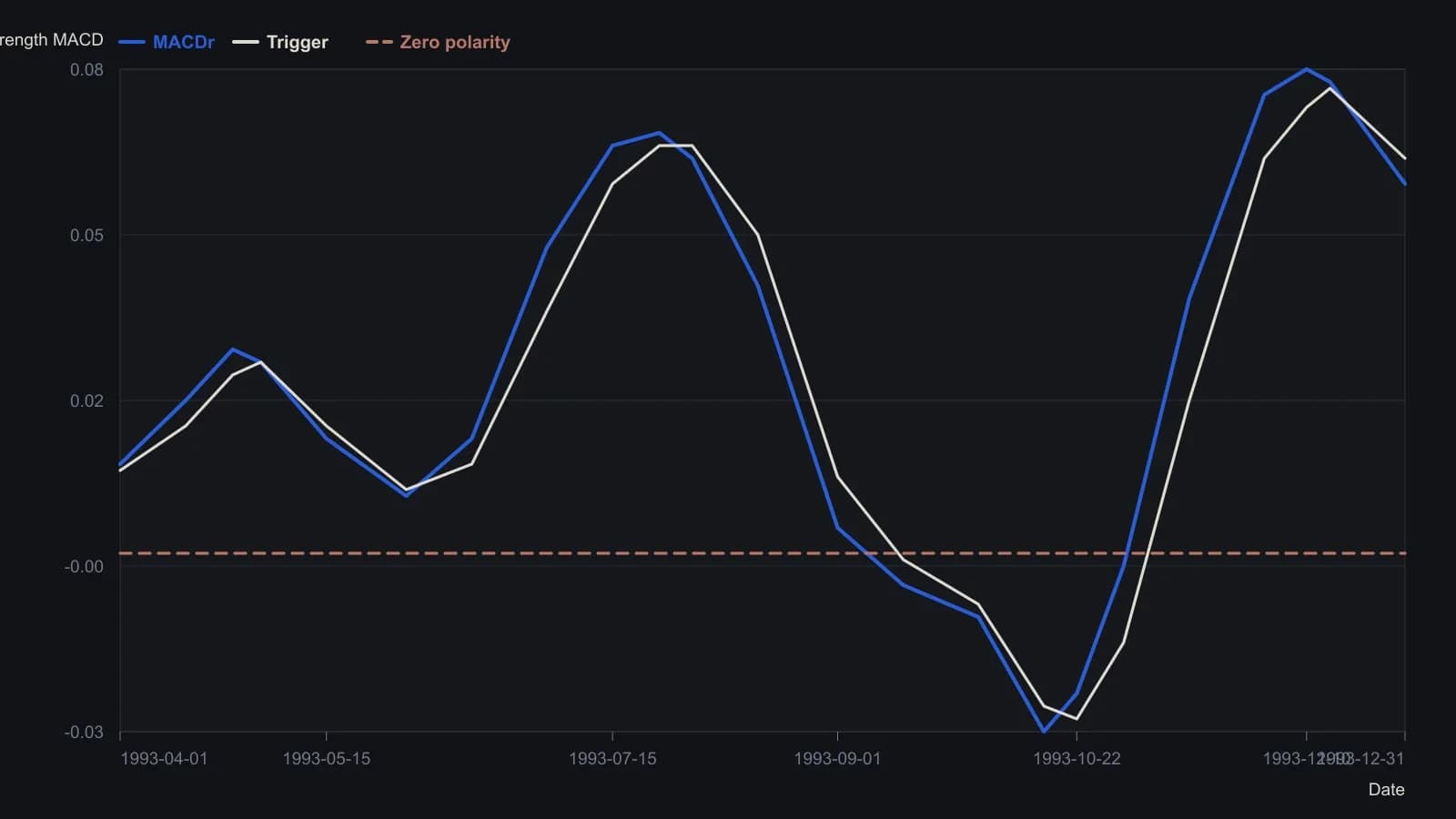

GM relative-strength MACD versus its trigger, 1993

Longs on this pairing only stand when the relative-strength MACD is above both its trigger and the zero line. That window is open through the June–July advance, shuts on the August cross-down, and reopens only after the October trough once the oscillator recrosses the trigger and then zero. Point values were read from the printed Behold! MACDr chart of General Motors versus the NYSE index.
Longs on this pairing only stand when the relative-strength MACD is above both its trigger and the zero line. That window is open through the June–July advance, shuts on the August cross-down, and reopens only after the October trough once the oscillator recrosses the trigger and then zero. Point values were read from the printed Behold! MACDr chart of General Motors versus the NYSE index.General Motors / NYSE · Daily · 1993-04-01T00:00:00.000Z to 1993-12-31T00:00:00.000Z

Readings are approximate from the raster; the source did not tabulate the series. Behold! built MACDr as the 22-period EMA of (GM close / NYSE close)×10 minus the 44-period EMA, with a 9-period EMA trigger. The long rule required MACDr above both the trigger and zero; the exit was a trigger cross down.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
