1995issue C011-9

Consensus presignal filters for Relative Strength Index, MACD and the Stochastic oscillator

A consensus index can be built from the presignal zones of mixed indicators so a scan shows when a majority is already committed to the same next signal. Open and solid commitment boxes on one shared timeline make that agreement visible without stacking full oscillator panes.

  • A consensus index can be built from the presignal zones of mixed indicators so a scan shows when a majority is already committed to the same next signal.
  • Relative Strength Index and the Stochastic oscillator %K line enter a prebuy zone below a lower bound and a presell zone above an upper bound, and they fire only after they recross those bounds.
  • MACD enters a prebuy zone when the indicator sits below its buy line and that line first drops below zero, and a presell zone when it sits above its sell line and that line first rises above zero.
  • An Insync-style buy occurs after the consensus reading has been below its lower threshold and then crosses back up, which requires a required share of components to be in their presignal zones and then at least one of them to fire.
Entries in this reading3 entries
Current trackMACD115 readingsStochastic oscillator170 readingsRelative Strength Index186 readings

A scan for majority commitment

A consensus index can be built from the presignal zones of mixed indicators so a scan shows when a majority is already committed to the same next signal. The mix can include threshold-crossing tools such as Relative Strength Index and the Stochastic oscillator beside a zero-crossing oscillator such as MACD.

Plotting only open and solid commitment boxes for many indicators on one shared timeline makes it possible to see which tools are in sync without stacking full oscillator panes.

How the component zones are marked

Threshold-crossing tools such as Relative Strength Index and the Stochastic oscillator %K line enter a prebuy zone below a lower bound and a presell zone above an upper bound. They fire only after they recross those bounds.

Zero-crossing oscillators such as MACD enter a prebuy zone when the indicator sits below its buy line and that line first drops below zero. They enter a presell zone when the indicator sits above its sell line and that line first rises above zero.

An Insync-style buy

An Insync-style buy occurs after the consensus reading has been below its lower threshold and then crosses back up. That sequence requires a required share of components to be in their presignal zones and then at least one of them to fire.

When the filter stays silent

When the consensus bounds are set so every component must be in sync, some tickers generate no signals. Bounded tools such as Relative Strength Index can also stay silent because their readings do not always travel far enough.

In the source simulations, raising the percentage of indicators that must be in sync reduced the number of signals and, in most tabulated cases, raised net gain. The source ranked component tools by relative net gain after dropping the best gain and worst loss, and treated that ranking as more important than any absolute percentage.

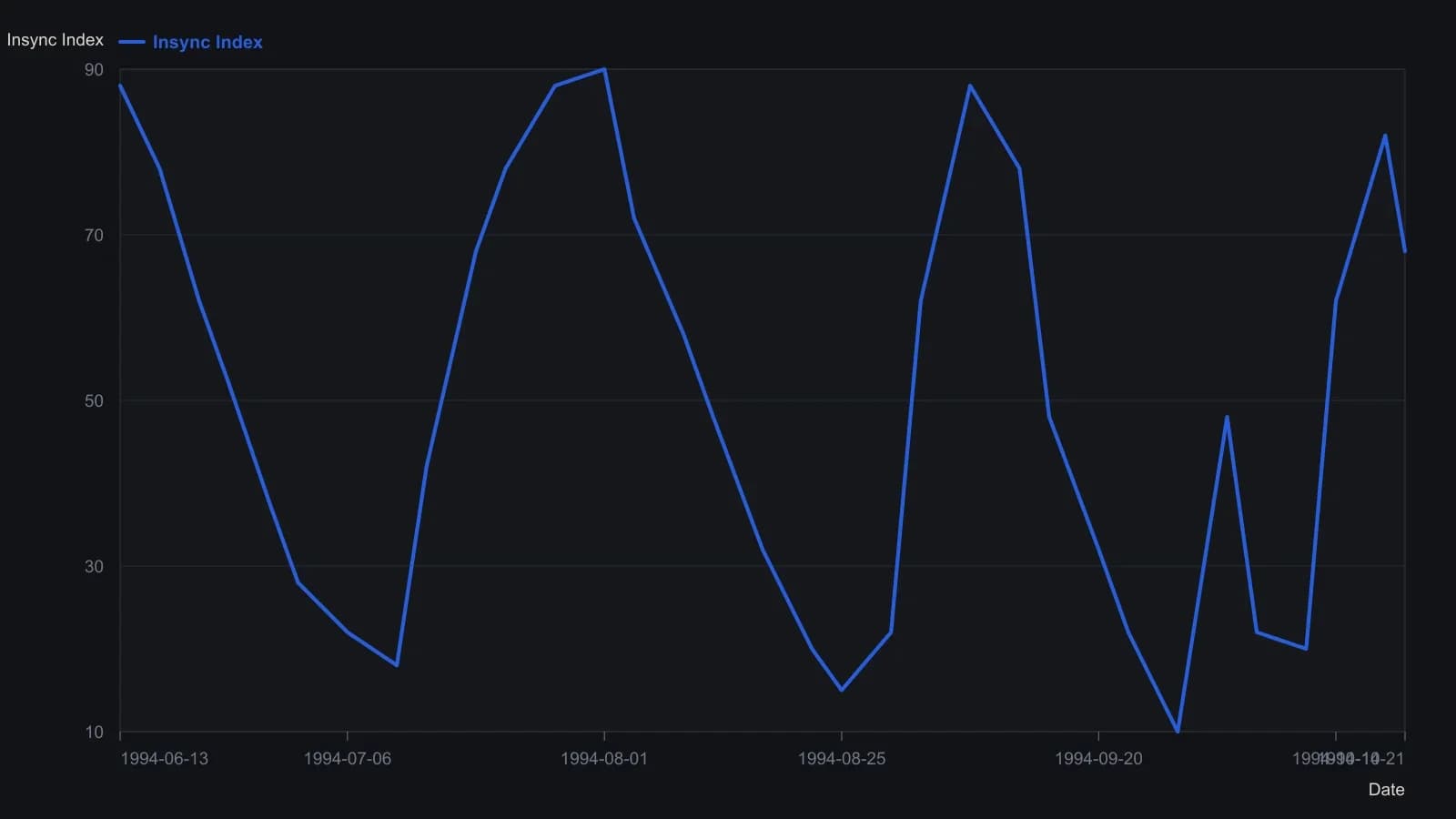

AlliedSignal Insync consensus, June–October 1994

Readings near 90 mean most of the ten components are already in a presell zone; those two crests sit on AlliedSignal’s late-July and mid-September highs. Readings near 10 mean majority prebuy commitment and sit under the August and late-September lows. Mid-scale stretches are the filter staying quiet. The series was read from the printed Insync pane (scale marked only at 10 and 90), not from a table.
Readings near 90 mean most of the ten components are already in a presell zone; those two crests sit on AlliedSignal’s late-July and mid-September highs. Readings near 10 mean majority prebuy commitment and sit under the August and late-September lows. Mid-scale stretches are the filter staying quiet. The series was read from the printed Insync pane (scale marked only at 10 and 90), not from a table.ALD · daily · 1994-06-13T00:00:00.000Z to 1994-10-21T00:00:00.000Z

The source pane labels only 10 and 90, so each reading is approximate to a few index points. Daily AlliedSignal session from 13 June 1994 through 21 October 1994. Insync is the consensus of ten component indicators.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
