Confirm the MACD turn with price, then exit on the histogram

The historical workflow builds MACD from two moving averages of closing price and still rejects the conventional crossover as a complete rule. A long setup needs a rising weekly MACD and a price break above the prior week's high. After the histogram turns down, the exit is a sell-stop at that bar's low for the following week.

  • The MACD line is the difference between a shorter and a longer moving average of closing price, then compared with a moving average of that difference.
  • Conventional crossovers can lag the early part of a major move and can force an early exit on the sell side.
  • A long setup is defined only when last week's MACD is higher than the MACD two weeks ago and this week's price exceeds the prior week's high.
  • After a downturn in the MACD histogram, the exit rule places a sell-stop at that bar's low for the following week.
Entries in this reading3 entries
Current trackMACD115 readingsPrice-indicator divergence142 readingsMoving average449 readings

Two moving averages, then a second average

The MACD line is the difference between a shorter and a longer moving average of closing price, then compared with a moving average of that difference.

A conventional signal is to buy when a rising MACD line crosses above its signal line and to sell when it crosses below.

The archive notes two practical drawbacks of that conventional reading: lag that misses the early part of a major move, and sell signals that can force an early exit.

Direction matters more than the signed level

In the worked examples the MACD is scaled as a percent of close so its magnitude can be compared across securities with different prices.

The archive treats the direction of MACD as more important than its signed level, including the case of a rising but still negative reading.

The long setup and the following-week stop

A long setup is defined only when last week's MACD is higher than the MACD two weeks ago and this week's price exceeds the prior week's high.

After a downturn in the MACD histogram, the exit rule places a sell-stop at that bar's low for the following week.

Price-indicator divergence and weekly charts

Price making a new high while MACD fails to confirm, or price making a new low while MACD holds a higher low, is presented as price-indicator divergence that can warn of a turn.

The archive prefers weekly MACD charts over daily ones in these examples and warns that searching for historically outstanding parameter sets does not guarantee later results.

Value Line weekly closes through the 1987 peak

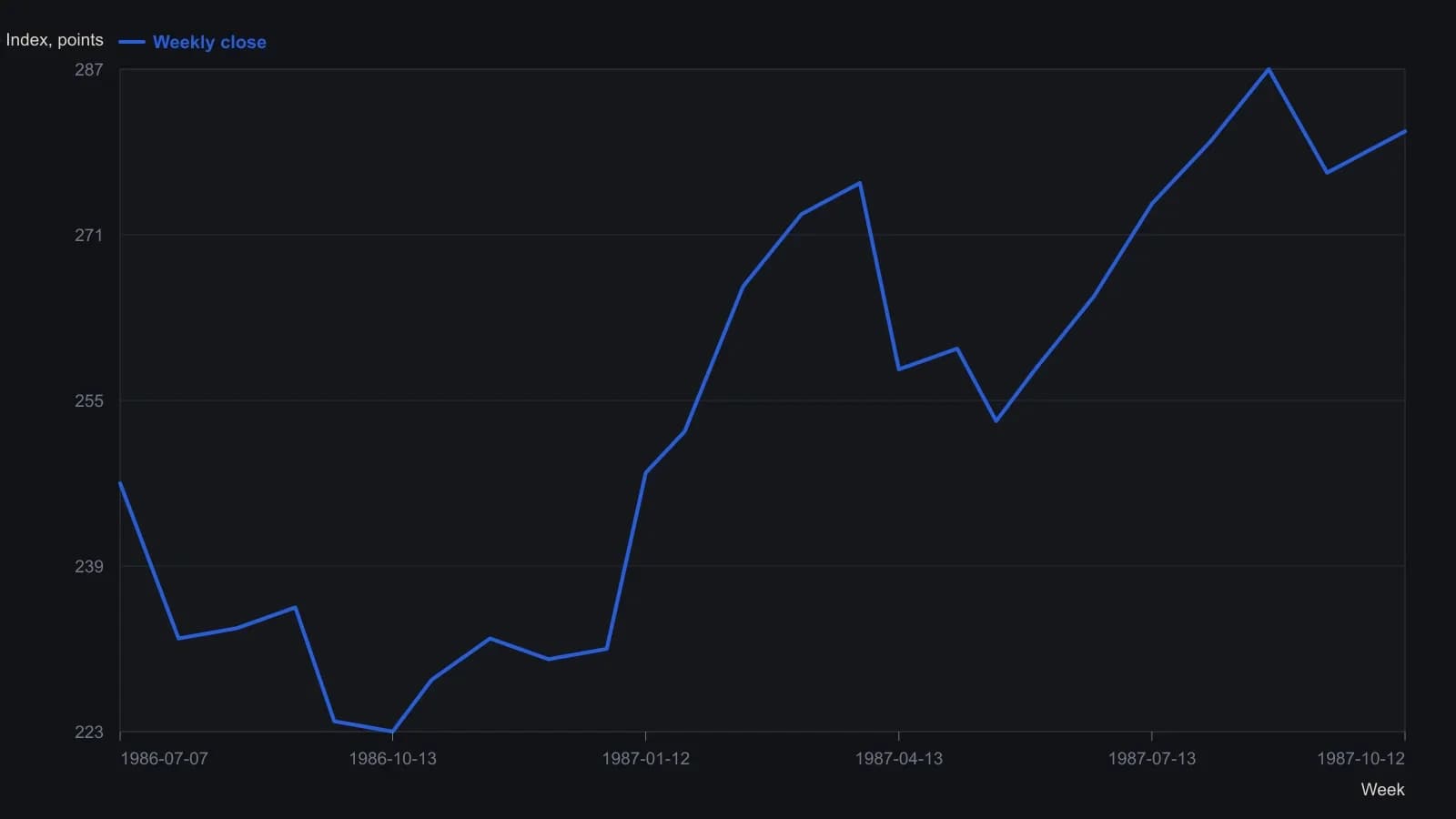

Weekly Value Line closes chop in the low 220s through late 1986, confirm a long with the January 1987 breakout, pause near 250, then print a higher high around 287 in August — the high Vakkur flags as unconfirmed by MACD. Closes were read from the SuperCharts weekly candlestick pane of that 1986–87 chart.
Weekly Value Line closes chop in the low 220s through late 1986, confirm a long with the January 1987 breakout, pause near 250, then print a higher high around 287 in August — the high Vakkur flags as unconfirmed by MACD. Closes were read from the SuperCharts weekly candlestick pane of that 1986–87 chart.Value Line Index · Weekly · 1986-07-01T00:00:00.000Z to 1987-10-31T00:00:00.000Z

The source’s mechanical examples fix a 9-week minus 12-week MACD on weekly bars and ignore the signal line. Digitized closes are approximate to the nearest few index points.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
