Separate bounded and trend-following oscillator rules

The relative strength index, the stochastic oscillator, and MACD are often treated as interchangeable momentum tools. Their constructions are not equivalent, so overbought and oversold bands that fit one closed-range oscillator do not transfer to the other, or to an open-ended reading that scales with trend velocity.

  • The relative strength index, the stochastic oscillator, and MACD are often treated as interchangeable momentum tools even though their constructions are not equivalent.
  • Lengthening the relative strength index lookback shrinks its swing range, so conventional 70 and 30 bands are often pulled toward 60 and 40, and 0 or 100 readings become nearly unreachable after about nine periods.
  • After the stochastic lookback is lengthened, the oscillator can still travel between 0 and 100 and can reach those extremes even in a weak trend, because it does not scale with trend velocity.
  • MACD belongs with open-ended, trend-following oscillators that lack fixed overbought and oversold levels, because a faster price trend produces a steeper, larger reading.
Entries in this reading3 entries
Current trackMACD115 readingsStochastic oscillator170 readingsRelative Strength Index186 readings

These oscillators are not equivalent

The relative strength index, the stochastic oscillator, and MACD are often treated as interchangeable momentum tools even though their constructions are not equivalent.

The relative strength index is a bounded oscillator whose reading comes from the balance of up periods against down periods over a chosen lookback. The stochastic oscillator is a bounded oscillator that places the latest close inside the high-low range of a lookback window. MACD is an unbounded oscillator formed by subtracting a longer moving average from a shorter moving average.

Closed-range tools still do not share one band rule

Lengthening the relative strength index lookback shrinks its swing range, which is why conventional 70 and 30 bands are often pulled in toward 60 and 40. Because the relative strength index is driven by the count of up days versus down days, two trends with the same directional-day mix produce the same reading. Lookbacks longer than about five to nine periods make 0 or 100 values nearly unreachable as the oscillator drifts toward its 50 midpoint.

After the stochastic lookback is lengthened, the oscillator can still travel between its fixed 0 and 100 bounds, whereas the relative strength index almost never reaches those bounds once the lookback exceeds nine periods. On two price paths that differ in speed but not in directional geometry, the stochastic close-to-range ratio can print the same value, so the oscillator does not scale with trend velocity and can reach its extremes even in a weak trend.

The relative strength index and the stochastic oscillator belong with closed-range tools that can mark overbought and oversold conditions regardless of trend strength. The stochastic oscillator keeps that range behavior at longer lookbacks, but the relative strength index does not after about nine periods.

MACD follows trend direction and speed

MACD is the gap between a shorter and a longer moving average, so a faster price trend produces a steeper, larger MACD reading and the indicator tracks trend direction and speed.

MACD belongs with open-ended, trend-following oscillators that lack fixed overbought and oversold levels.

Short directional runs in a daily sample

In one multi-year daily sample, about 45 percent of the time was spent in one-day directional runs, about 86 percent in one- to three-day runs, and runs of six to ten days accounted for less than 1 percent of the time.

Editorial reading: because the relative strength index depends on the mix of up days and down days, a longer lookback that covers many of these short runs sits nearer the 50 midpoint and rarely prints a 0 or 100 value.

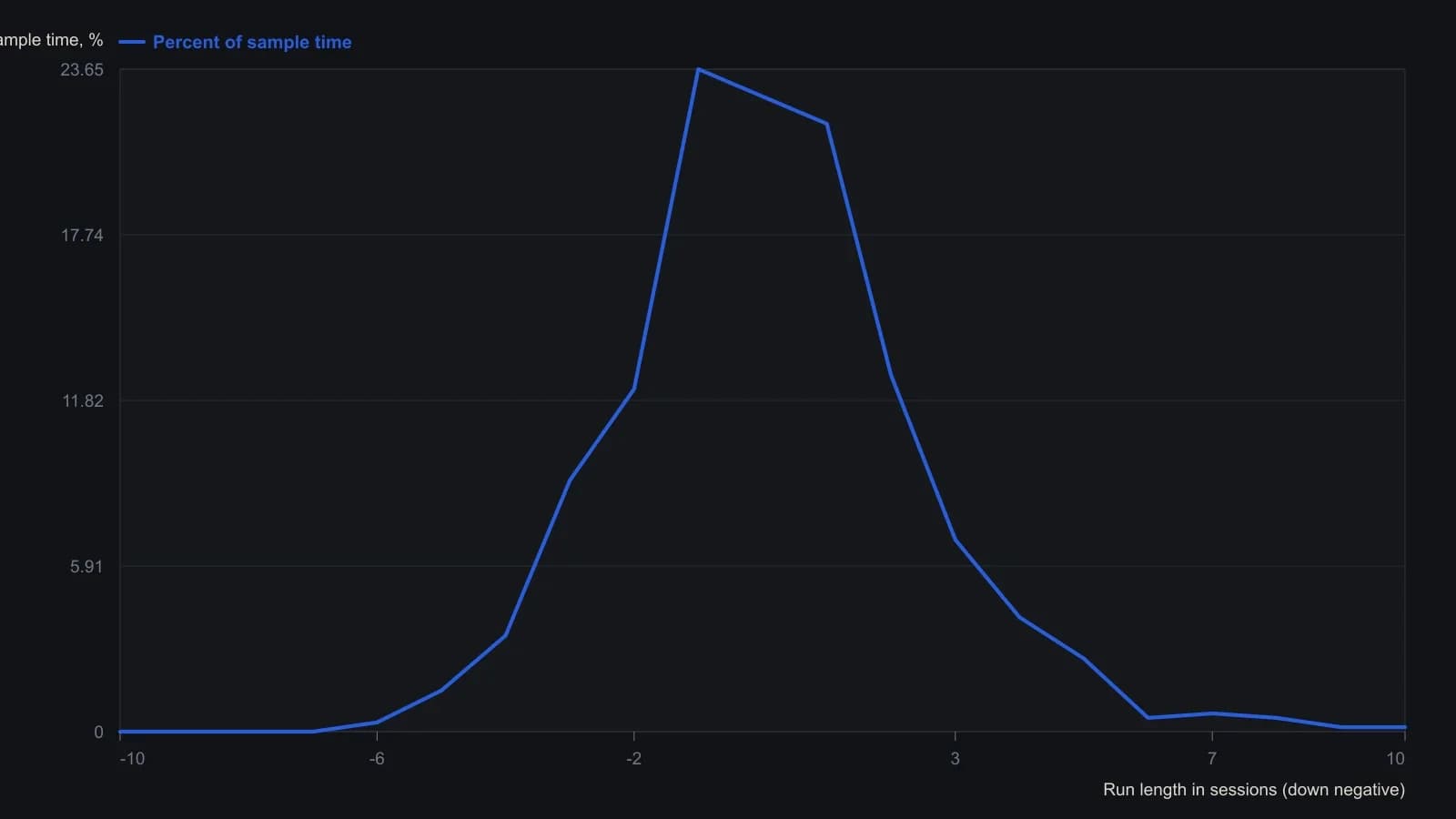

DJIA consecutive daily runs, 1996–2001

One- to three-day one-way runs take most of the sample, and streaks of six days or longer stay under one percent of the time, which is why a longer RSI almost never prints 0 or 100. The percents are the article’s tabulated share of time for each up-move and down-move length, not a tracing of the printed bell-curve figure.
One- to three-day one-way runs take most of the sample, and streaks of six days or longer stay under one percent of the time, which is why a longer RSI almost never prints 0 or 100. The percents are the article’s tabulated share of time for each up-move and down-move length, not a tracing of the printed bell-curve figure.DJIA · daily · 1996-04-01T00:00:00.000Z to 2001-04-30T00:00:00.000Z

The printed table header dates the sample April 1996–April 2001; the body also says April 1995 and 1,290 sessions. Down runs of seven to ten days are recorded as zero.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
