2018issue C028-11

Weekly and daily PPO scale versus MACD, with bounded RSI and stochastic readings

The weekly-and-daily momentum stack can keep MACD signal language while changing only the unit of the gap. Editorial interpretation: keep MACD when the hypothesis is absolute average separation, switch to the percentage price oscillator when those readings must stay comparable after large price changes or across securities, and leave overbought and oversold questions to the relative strength index and the stochastic oscillator.

  • Editorial interpretation: keep MACD when the hypothesis is absolute average separation, switch to the weekly-and-daily percentage price oscillator when that structure must stay comparable after large price changes or across symbols, and reserve the relative strength index and the stochastic oscillator for overbought and oversold readings.
  • The combined stack uses a weekly percentage line and a relative daily percentage line, with relative-daily crossovers, daily and weekly centerline crossovers, and divergences matching weekly-and-daily MACD signal language.
  • Percentage oscillator levels can be compared across securities and across long intervals even after price has doubled or tripled, which the absolute MACD form does not support in the same way.
  • The weekly-and-daily percentage price oscillator is not range-limited, so the relative strength index and the stochastic oscillator are better suited to overbought and oversold conditions.
Entries in this reading3 entries
Current trackMACD115 readingsStochastic oscillator170 readingsRelative Strength Index186 readings

Absolute gaps and percentage gaps

Weekly or daily MACD records the absolute gap between two exponential moving averages. The weekly-and-daily percentage price oscillator divides that gap by the slowest average, the 130-day exponential moving average, and multiplies the result by 100.

The weekly percentage price oscillator equals the 60-day exponential moving average minus the 130-day exponential moving average, divided by the 130-day exponential moving average, then multiplied by 100. The daily percentage price oscillator equals the 12-day exponential moving average minus the 26-day exponential moving average, divided by the 130-day exponential moving average, then multiplied by 100.

An exponential moving average is a recursively weighted average of closing prices. The 12-day, 26-day, 60-day, and 130-day lengths are the defaults used to build both the absolute and percentage forms.

Weekly and relative daily lines

The combined construction uses a weekly percentage line and a relative daily percentage line. The relative daily percentage price oscillator is the weekly percentage oscillator plus the daily percentage oscillator, used as the faster line in the combined stack.

The listed signal types are relative-daily line crossovers, daily and weekly centerline crossovers, and divergences, matching the signal language of the weekly-and-daily MACD form. A centerline crossover is a sign change through zero on the weekly or daily percentage line, read as a shift between net upside and net downside average separation.

The weekly percentage line is positive when the 60-day exponential moving average is above the 130-day exponential moving average and becomes more positive as that gap widens. It is negative when the 60-day average is below the 130-day average, with more negative readings as that downside gap widens.

What changes when the unit is a percent

In one worked comparison the weekly-and-daily MACD values spanned -33.56 to +36.59 while the matching percentage oscillator spanned -2.94 to +3.07.

On a longer-horizon chart the percentage form keeps moving up and down, whereas the absolute MACD form can remain nearly unchanged for extended stretches. Moving averages were computed from closes, so signals are judged against closes, and a calculation window of at least 250 periods was described as needed for more accurate spreadsheet values.

Percentage oscillator levels can be compared across securities and across long intervals even after price has doubled or tripled, which the absolute MACD form does not support in the same way.

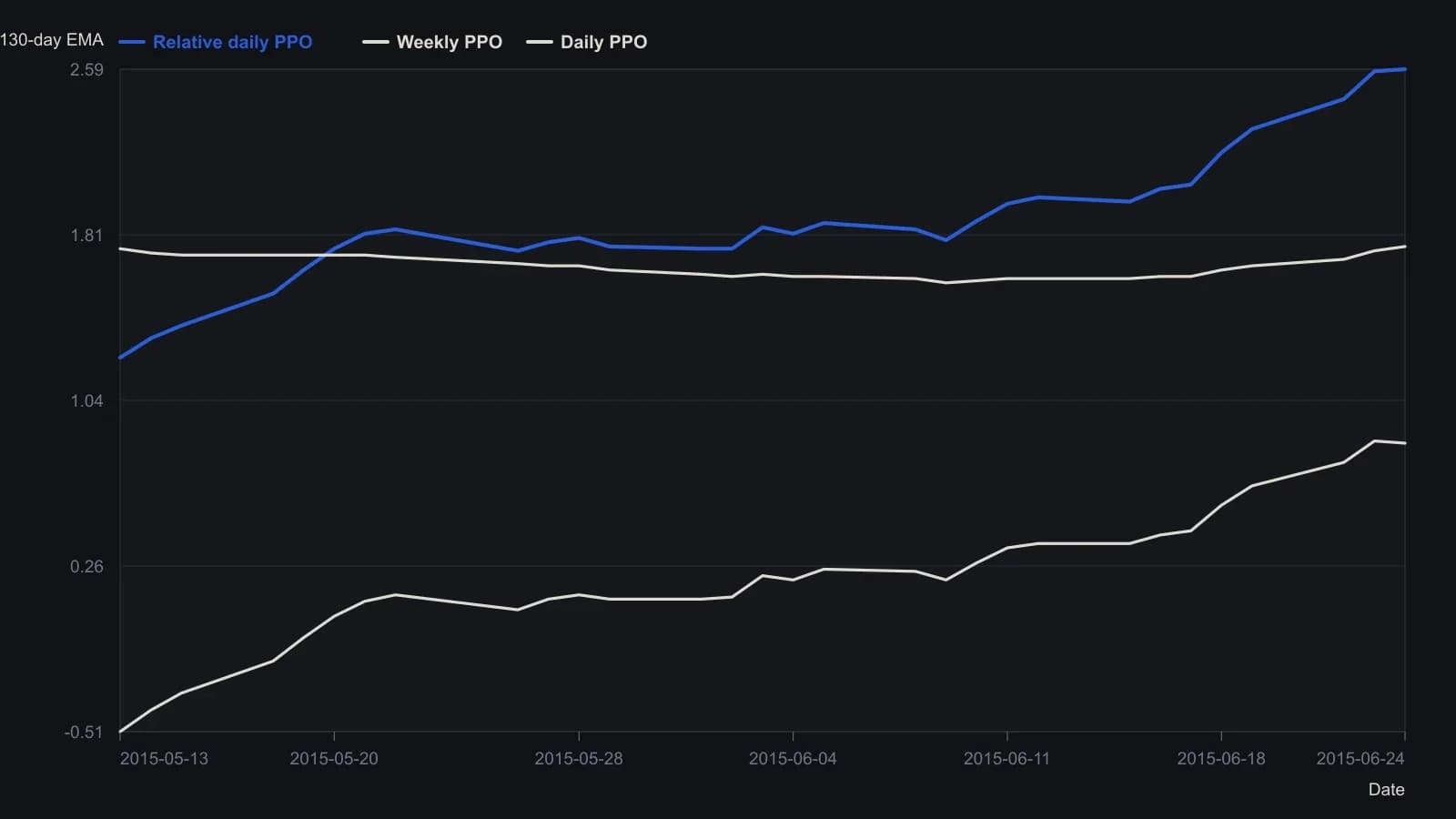

Russell 2000 weekly PPO versus the faster daily stack

Over these thirty sessions the slower weekly PPO barely budged, holding near 1.6 to 1.8 percent of the 130-day average, while the daily PPO crossed from a 0.51 percent discount to a 0.84 percent premium and lifted the combined relative daily line from 1.24 to 2.59. A trader watching the stack would have seen daily upside momentum accelerating inside an already positive weekly regime. Every point is taken from the article’s Russell 2000 calculation spreadsheet.
Over these thirty sessions the slower weekly PPO barely budged, holding near 1.6 to 1.8 percent of the 130-day average, while the daily PPO crossed from a 0.51 percent discount to a 0.84 percent premium and lifted the combined relative daily line from 1.24 to 2.59. A trader watching the stack would have seen daily upside momentum accelerating inside an already positive weekly regime. Every point is taken from the article’s Russell 2000 calculation spreadsheet.Russell 2000 · Daily · 2015-05-13T00:00:00.000Z to 2015-06-24T00:00:00.000Z

The author warns that these exponential averages are still settling; a seed of 250 bars or more would have been more accurate.

Bounded readings the percentage stack cannot supply

The weekly-and-daily percentage price oscillator cannot mark overbought or oversold conditions because its readings are not range-limited. The relative strength index and the stochastic oscillator are range-limited and are therefore better suited to that task.

The relative strength index is a bounded oscillator built from ordered price observations over a defined lookback, used to locate overbought and oversold zones that an unbounded percentage momentum line cannot mark. The stochastic oscillator locates price within a lookback range and is therefore suited to overbought and oversold readings that unlimited-range percentage momentum cannot supply.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
