Weekly and daily MACD on a single daily chart

A weekly-and-daily MACD construction computes a conventional daily MACD and a longer-lookback weekly-scale MACD from the same daily close series, then plots their sum as a relative daily line against the weekly-scale line and a zero line.

  • Both a daily MACD and a longer-lookback weekly-scale MACD are computed from the same daily close series, so one daily chart can host two horizons.
  • The relative daily line is the weekly-scale MACD plus the daily MACD, plotted with the weekly-scale line and a zero line. A signal event is their cross.
  • The same construction also carries weekly and daily centerline crossovers and price-to-MACD divergences, with weekly-scale divergences treated as the higher-priority form.
  • Lookback pairs are user parameters, shown as 12 and 26 for the daily pair and 60 and 130 for the weekly-scale pair. Any coded example requires daily bars, with a default 20-day exit.
Entries in this reading1 entry
Current trackMACD115 readings

Two horizons on one daily chart

The construction computes both a daily MACD and a longer-lookback weekly-scale MACD from the same daily close series. The weekly-and-daily MACD pair therefore lets a single daily chart host two horizons.

The weekly-scale MACD is built from daily closes with longer fast and slow lengths chosen to approximate a weekly MACD without leaving the daily chart. The daily series uses a conventional daily lookback pair.

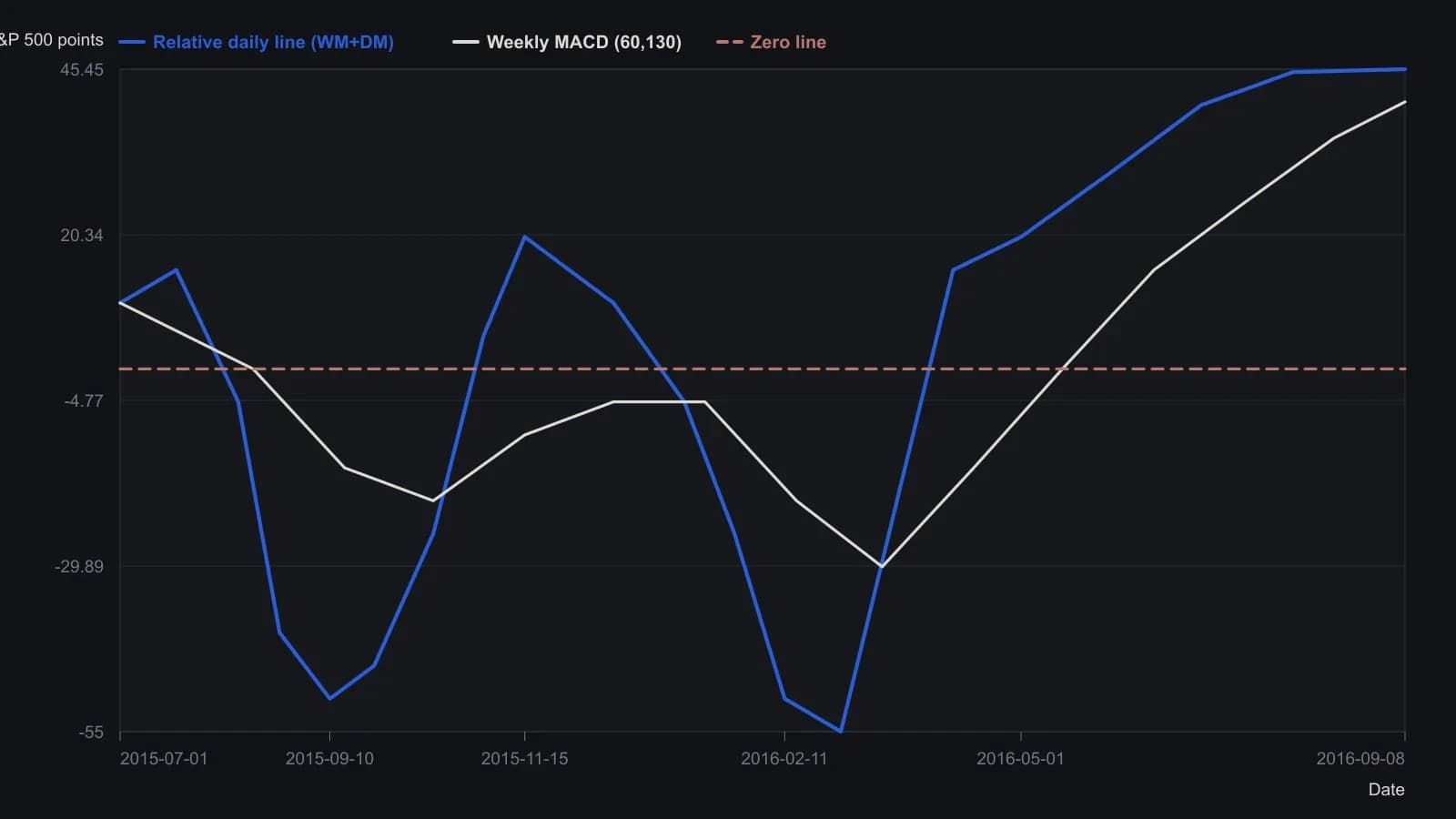

S&P 500 weekly MACD versus relative daily line

Traders can watch a weekly-scale MACD and a faster relative daily line on one daily S&P 500 chart: both dropped below zero in the 2015 and 2016 selloffs, then recrossed the centerline on the 2016 advance, with the relative line turning first. Printed AmiBroker readings on 8 September 2016 are 40.5 for the weekly line and 45.45 for the relative line; other points were digitized from those two curves.
Traders can watch a weekly-scale MACD and a faster relative daily line on one daily S&P 500 chart: both dropped below zero in the 2015 and 2016 selloffs, then recrossed the centerline on the 2016 advance, with the relative line turning first. Printed AmiBroker readings on 8 September 2016 are 40.5 for the weekly line and 45.45 for the relative line; other points were digitized from those two curves.S&P 500 · Daily · 2015-07-01T00:00:00.000Z to 2016-09-08T00:00:00.000Z

Both oscillators use the daily close with lookbacks 60/130 (weekly-scale) and 12/26 (daily). Intermediate points are approximate readings from the chart image, not the computed tick series.

The relative daily line

A relative daily line is formed by adding the weekly-scale MACD to the daily MACD. That line is plotted with the weekly-scale MACD and a zero line.

A checkable signal event is defined when the relative daily line crosses above or below the weekly-scale MACD. That crossing is treated as a separate hypothesis from a centerline crossover.

Centerline crossovers and weekly divergences

Additional hypotheses attached to the same construction include weekly and daily centerline crossovers plus price-to-MACD divergences. A centerline crossover is a zero-line event on either the weekly-scale MACD or the daily MACD.

In this construction, weekly-scale MACD divergences are treated as more important than daily MACD divergences. A weekly divergence is a disagreement between price extremes and the weekly-scale MACD.

A bearish divergence is specified as price making a higher high, or a series of higher highs, while the weekly-scale line makes a lower high. The inverse defines a bullish divergence.

Lookback pairs and the daily interval constraint

Default lookbacks shown for the daily pair are 12 and 26, and for the weekly-scale pair are 60 and 130. Lookback intervals for both MACD pairs are exposed as user parameters so alternative lengths can be substituted without changing the construction logic.

An example coded strategy requires daily bars and exits after a user-set number of days, with a default exit horizon of 20 days. The daily interval constraint is the requirement that the indicator and any coded strategy run on daily bars so the lengthened weekly lookbacks remain meaningful.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
