Constructing a weekly and daily percentage price oscillator

This archive note shows how a weekly-and-daily percentage price oscillator is assembled from four exponential averages of one price series. Both the weekly component and the daily component use the weekly-slow average as their scale, and a combined plot adds the two percentage terms against a zero line.

  • The oscillator is built from four exponential averages of one price series: a weekly-fast and weekly-slow pair plus a daily-fast and daily-slow pair.
  • The weekly component and the daily component both divide by the weekly-slow average, so the two horizons share one scale.
  • A combined plot adds the daily component to the weekly component and draws a zero reference line.
  • The percentage construction is presented as better suited to comparing different securities, while the related MACD difference construction is presented as better suited to overbought and oversold readings on a single security.
Entries in this reading3 entries
Current trackMACD115 readingsExponential smoothing117 readingsMoving average449 readings

Four exponential averages

The weekly-and-daily percentage price oscillator is constructed from four exponential averages of the same price series: a weekly-fast and weekly-slow pair plus a daily-fast and daily-slow pair.

An exponential average is a recursively weighted average of successive prices that gives more weight to recent observations than a simple moving average of the same length.

One documented implementation uses default lengths of 60 and 130 for the weekly pair and 12 and 26 for the daily pair.

How the two percentage terms are scaled

A percentage price oscillator scales the gap between a faster and a slower exponential average as a percentage of the slower average rather than as a raw price difference.

The weekly component is the longer-horizon percentage term formed from the weekly-length exponential averages. It is 100 times the difference of the weekly-fast and weekly-slow averages divided by the weekly-slow average, and is set to zero when that denominator is zero.

The daily component is the shorter-horizon percentage term formed from the daily-length exponential averages. It uses the daily-fast and daily-slow averages in the numerator but still divides by the weekly-slow average, so both horizons share a common scale.

A combined plot with a zero line

A combined plot is formed by adding the daily component to the weekly component and drawing a zero reference line.

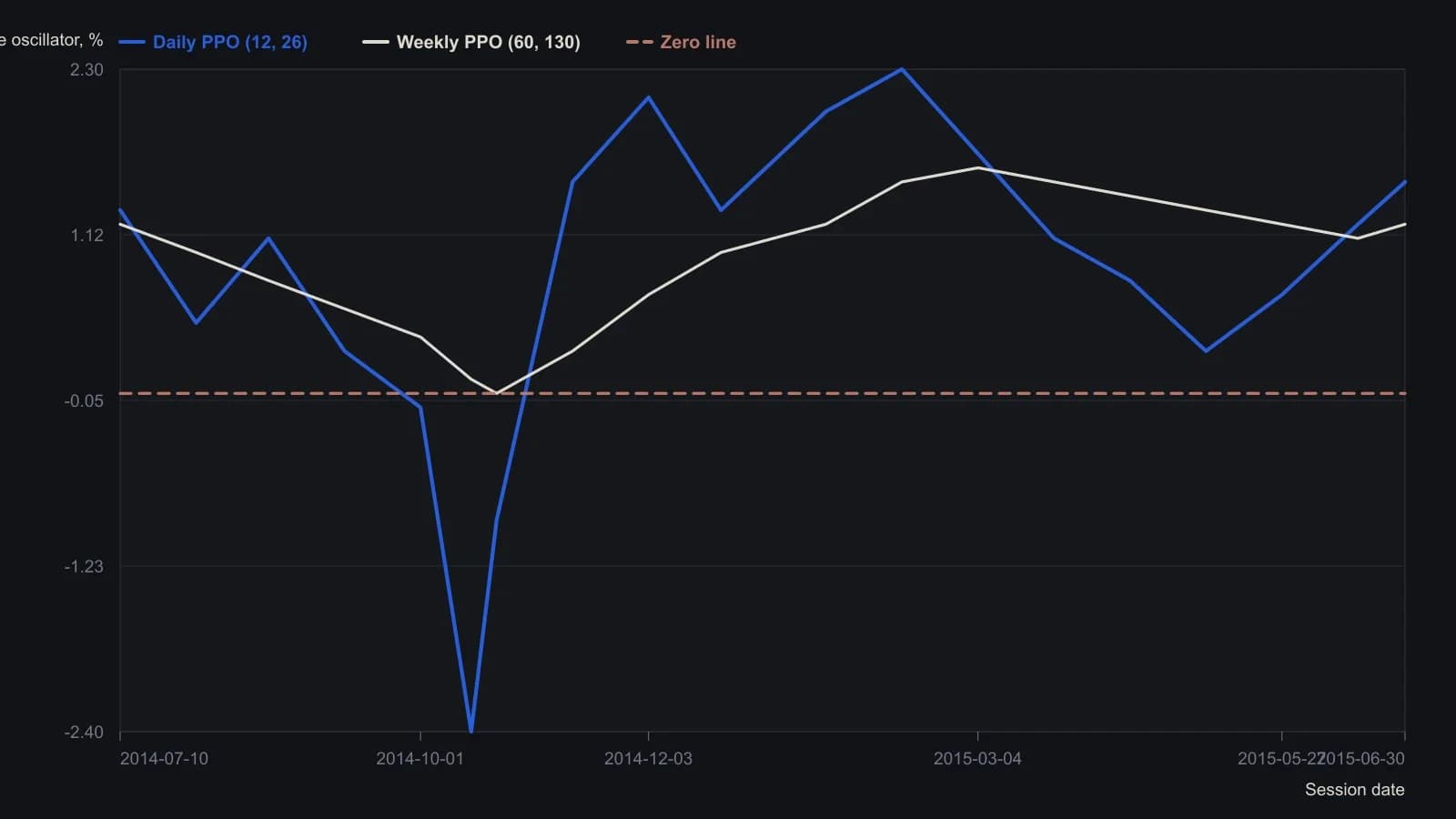

Russell 2000 weekly and daily percentage price oscillators

On the Russell 2000 the fast 12–26 percentage oscillator drops to about −2.4 in the October 2014 selloff while the slower 60–130 weekly term only grazes the zero line, then both climb back and hold above zero into June 2015. The readings were taken from the PPO pane of the Excel workbook screenshot, not from a printed table, so they are approximate to one tenth of a percent.
On the Russell 2000 the fast 12–26 percentage oscillator drops to about −2.4 in the October 2014 selloff while the slower 60–130 weekly term only grazes the zero line, then both climb back and hold above zero into June 2015. The readings were taken from the PPO pane of the Excel workbook screenshot, not from a printed table, so they are approximate to one tenth of a percent.Russell 2000 Index (^RUT) · Daily · 2014-07-10T00:00:00.000Z to 2015-06-30T00:00:00.000Z

Exponential lengths are fixed at 12 and 26 days and 60 and 130 days. The source pane also draws a relative-daily series (the 12–26 difference divided by the 130-day average) that could not be separated cleanly from the daily line at this resolution. A MACD pane underneath repeats the same turns on an absolute scale of about −33 to +38.

Percentage scale and the MACD contrast

Because of that percentage construction, the oscillator is presented as better suited to comparing different securities.

The related MACD contrast is a difference-of-averages construction that is left in price units. That difference construction is presented as better suited to locating overbought and oversold levels on a single security.

Weekly lengths from a daily multiplier

An alternative implementation obtains weekly-length averages by multiplying the daily fast and slow lengths by a configurable multiplier whose default is 5.

Similar shape, changing vertical scale

Over longer chart spans the MACD pattern can remain similar in shape to the percentage oscillator while its vertical scale varies enough to make portions of the MACD pattern hard to read.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
