Constructing KST from four weighted smoothed rates of change

KST is assembled in three sequential stages: four rate-of-change series, an independent moving average on each series, and a weighted sum of the four smoothed results. Construction tables give short-, intermediate-, and long-horizon parameter sets for daily, weekly, or monthly bars, including a short-term weekly exponential specification.

  • Assemble the composite in three stages: compute four rate-of-change series, smooth each series with its own moving average, then form a weighted sum.
  • Form each rate-of-change from the current close divided by the close n periods earlier, multiply by 100, then reduce by 100 so an unchanged price is centered on zero.
  • Smooth with a simple moving average or an exponential moving average; an E mark selects the exponential update, whose smoothing-constant is 2 divided by n plus 1.
  • Choose among short-, intermediate-, and long-horizon tables for daily, weekly, or monthly bars, including the short-term weekly exponential set with rate-of-change lengths 3, 4, 6 and 10, smoothing lengths 3, 4, 6 and 8, and weights 1, 2, 3 and 4.
Entries in this reading3 entries
Current trackRate of Change50 readingsExponential smoothing117 readingsMoving average449 readings

Three sequential stages

KST is a multi-horizon momentum composite built from four smoothed, weighted rates of change rather than from a single lookback. The indicator is assembled in three sequential stages: compute four rate-of-change series, smooth each series with a moving average, then form a weighted sum of those four smoothed series.

How each rate-of-change is formed

A rate-of-change is a close-to-close momentum ratio over a stated lookback, scaled so a zero reading marks an unchanged price over that window. Each rate of change is the current close divided by the close n periods earlier, multiplied by 100, then reduced by 100 so the series is centered on zero.

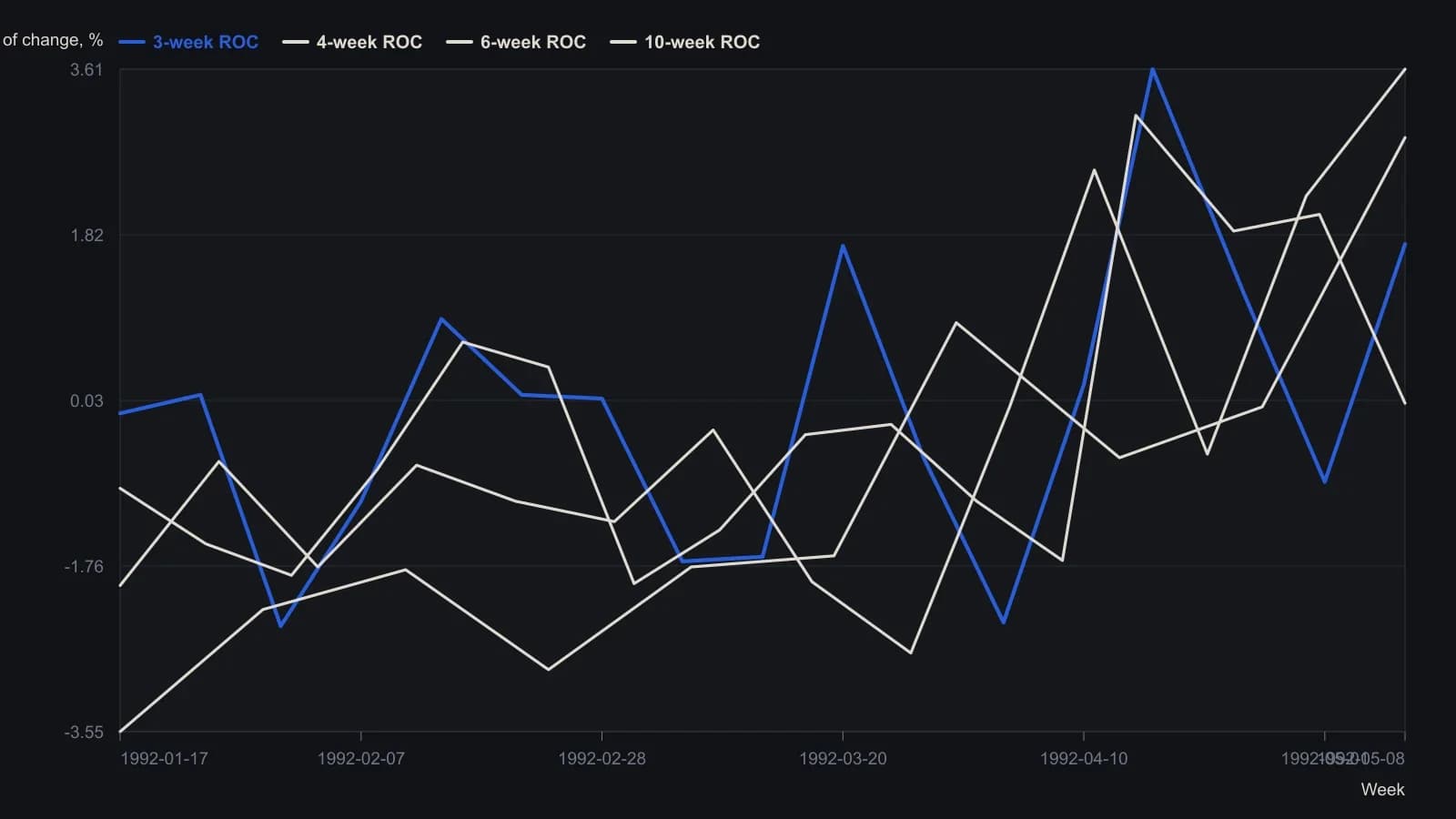

Four weekly ROC windows on the short-term KST sample

The four rate-of-change windows on weekly S&P 500 closes that later receive their own EMAs and weights 1, 2, 3, and 4. A trader can see how the 3-, 4-, 6-, and 10-week legs share a zero center but turn at different speeds. Every point is taken from the short-term weekly KST spreadsheet in Sidebar Figure 2, not traced from a plotted curve.
The four rate-of-change windows on weekly S&P 500 closes that later receive their own EMAs and weights 1, 2, 3, and 4. A trader can see how the 3-, 4-, 6-, and 10-week legs share a zero center but turn at different speeds. Every point is taken from the short-term weekly KST spreadsheet in Sidebar Figure 2, not traced from a plotted curve.S&P 500 · weekly · 1992-01-17T00:00:00.000Z to 1992-05-08T00:00:00.000Z

ROC is ((this week's close / close n weeks earlier) × 100) − 100, so the scale is percent and centered on zero. The printed weighted KST sum appears only on the last two rows, so the chart shows the four unsmoothed ROC inputs rather than the finished oscillator.

Smoothing each series independently

A moving average is a smoother applied independently to each rate-of-change series before the weighted combination, either as a simple window or as an exponential update. Each rate-of-change series may be smoothed with either a simple moving average or an exponential moving average. An E mark in the parameter table designates the exponential choice.

Exponential smoothing is a recursive average that blends the newest observation with the prior average using a constant equal to 2 divided by the lookback plus one. The smoothing-constant is the alpha used in the exponential update; it shrinks as the stated lookback lengthens. For a three-period lookback that constant equals 0.50. The first exponential average is seeded with the first available observation, and recursive updating begins on the following period.

Horizon tables and bar length

Construction tables supply separate short-, intermediate-, and long-horizon parameter sets, with variants that consume daily, weekly, or monthly bars. The short-term weekly exponential specification uses rate-of-change lengths 3, 4, 6 and 10, exponential-smoothing lengths 3, 4, 6 and 8, and weights 1, 2, 3 and 4.

The weekly weighted sum

In the worked weekly example the four exponential constants are 0.50, 0.4, 0.29 and 0.22, and the composite equals the first smoothed series plus two, three and four times the remaining three smoothed series. The weighted-sum is the last construction step, in which each independently smoothed rate-of-change is multiplied by a preset weight and the four products are added.
