Constructing a volume oscillator from average ratios and smoothed rate of change

Volume is specified as an independent oscillator, then compared with price on matching moving-average and rate-of-change rules so a confirmation reading can be accepted or rejected.

  • Specify volume as an independent volume-oscillator rather than inferring participation from the histogram under price.
  • A trend-deviation construction divides a shorter moving average of volume by a longer one and plots the ratio around an equilibrium-line.
  • Compare the volume-oscillator with the price trend and with a matching price-oscillator so a confirmation hypothesis can be rejected.
  • Volume momentum can also be written as a smoothed-rate-of-change and compared with a similarly smoothed price series.
Entries in this reading3 entries
Current trackRate of Change50 readingsVolume-price analysis129 readingsMoving average449 readings

Volume as an independent series

Most common technical indicators are transformations of price. Volume is therefore presented as an independent series that can confirm or question a price trend.

A volume-oscillator is a plotted comparison of recent volume against a longer volume baseline, so expansions and contractions are easier to see than on a raw histogram.

A trend-deviation volume-oscillator

One construction is a trend-deviation: divide a shorter moving average of volume by a longer moving average, and plot the ratio as an oscillator around the equilibrium-line, the level at which the two averages are equal.

On daily charts the illustrated pairing is a 10-day moving average of volume divided by a 25-day moving average. The spans can be changed to target short, intermediate, or long-term volume trends.

A price-comparison rule that can fail

Reading the volume-oscillator requires comparing its direction and level with the prevailing price trend. In a typical setting, volume and price are expected to move in roughly the same direction, and volume is expected to contract when prices move sideways or decline.

An elevated volume-oscillator reading can coincide with a washed-out price because volume often expands in a selling climax. Rising price with declining volume is treated as a cautionary volume-price mismatch, and that mismatch can also produce a depressed volume reading at a market high.

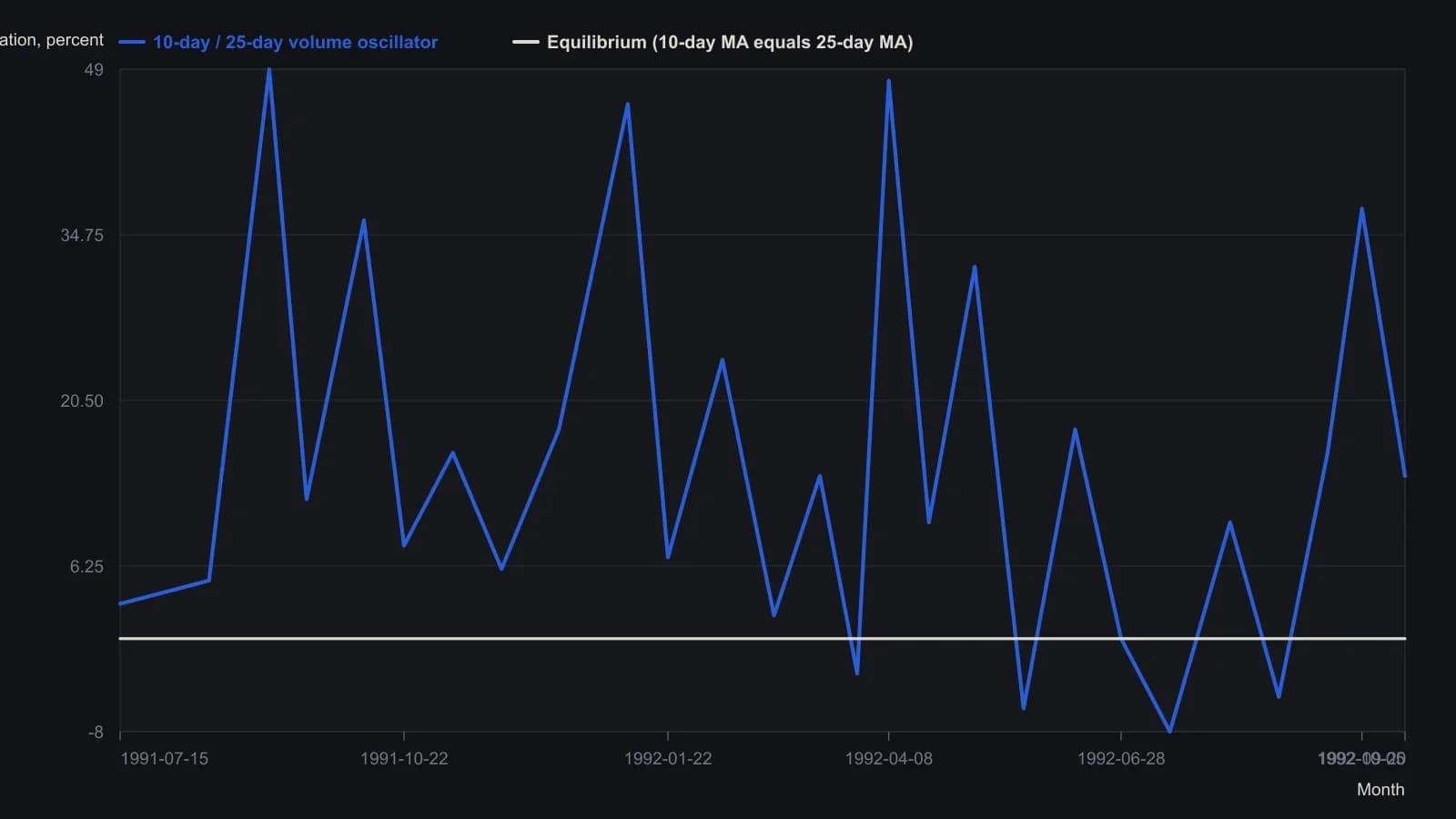

Nikkei volume oscillator (10-day / 25-day averages)

Spikes near +50 mark the September 1991 and April 1992 selling climaxes, while the November 1991 and May 1992 price highs printed much weaker volume — a bear-market pattern, not a healthy confirmation. Numbers were read off the published Nikkei pane; the article prints no table.
Spikes near +50 mark the September 1991 and April 1992 selling climaxes, while the November 1991 and May 1992 price highs printed much weaker volume — a bear-market pattern, not a healthy confirmation. Numbers were read off the published Nikkei pane; the article prints no table.Nikkei Stock Average · daily · 1991-07-01T00:00:00.000Z to 1992-10-31T00:00:00.000Z

Pring’s daily construction is a 10-day moving average of volume divided by a 25-day average, drawn around the zero line where the two averages are equal. The printed vertical scale is −50 to +50. Turning points are digitized from the raster and are only accurate to a few oscillator points.

A matching price-oscillator

A price-oscillator can be built with the same 10-day over 25-day moving-average ratio. Divergences between volume and price momentum can then be inspected on identical construction rules.

A trendline drawn on the volume-oscillator is treated as a completed signal only after a confirming price-trend reversal. A break in the volume series alone is not enough.

A smoothed-rate-of-change

Volume momentum can also be written as a rate of change and then smoothed, because the unsmoothed series is typically jagged. The result is a smoothed-rate-of-change that can be read as an underlying trend.

One illustrated long-horizon construction is a nine-month rate of change of monthly volume, smoothed with a six-month moving average and compared with a similarly smoothed price rate of change.

Long-horizon volume and price momentum

On that long-horizon pairing, volume momentum is described as usually leading price momentum at market peaks, with more mixed evidence at bottoms. When both series decline together, the historical workflow associates the pattern with a bear market or a sharp intermediate correction, while noting exceptions such as 1985 and 1986.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
