Rule-based Trendline construction for testable entries

A usable Trendline follows a reproducible two-point construction. A Rule-based entry then waits for a close through that line, a failed continuation extreme, and a break of the nearby minor swing, with the Stop-loss order placed beyond the invalidated extreme.

  • A usable Trendline is drawn with a consistent, reproducible two-point procedure so the same chart scale yields the same line.
  • A complete Rule-based entry waits for a close through the Trendline, failure to print a new continuation extreme, and a later break of the nearby minor swing.
  • The Stop-loss order is placed beyond the failed continuation extreme so the loss is bounded before the position is opened.
  • The same two-point construction applies on every chart scale, and the three-condition sequence reverses for the long side.
Entries in this reading3 entries
Current trackTrendline128 readingsStop-loss order144 readingsRule-based entry174 readings

An objective two-point line

A usable Trendline must be drawn with a consistent, reproducible, and objective two-point procedure so the same chart scale yields the same line.

An uptrend line is drawn from the period's lowest low to the highest minor low that precedes the period's highest high. The segment must not pass through intervening price bars.

A downtrend line is drawn from the period's highest high to the lowest minor high that precedes the period's lowest low. That line is then extended to the right without intersecting price between those two points.

Invalid second points

Selecting a more extreme low or high is invalid if the resulting line cuts through bars. A second pivot is also invalid if it forms after the period's opposite extreme rather than before it.

Horizon and chart scale

Chart periodicity should match the chosen horizon. That horizon may be several months to years, several weeks to months, or less than a day to several weeks. The same two-point construction applies on every scale.

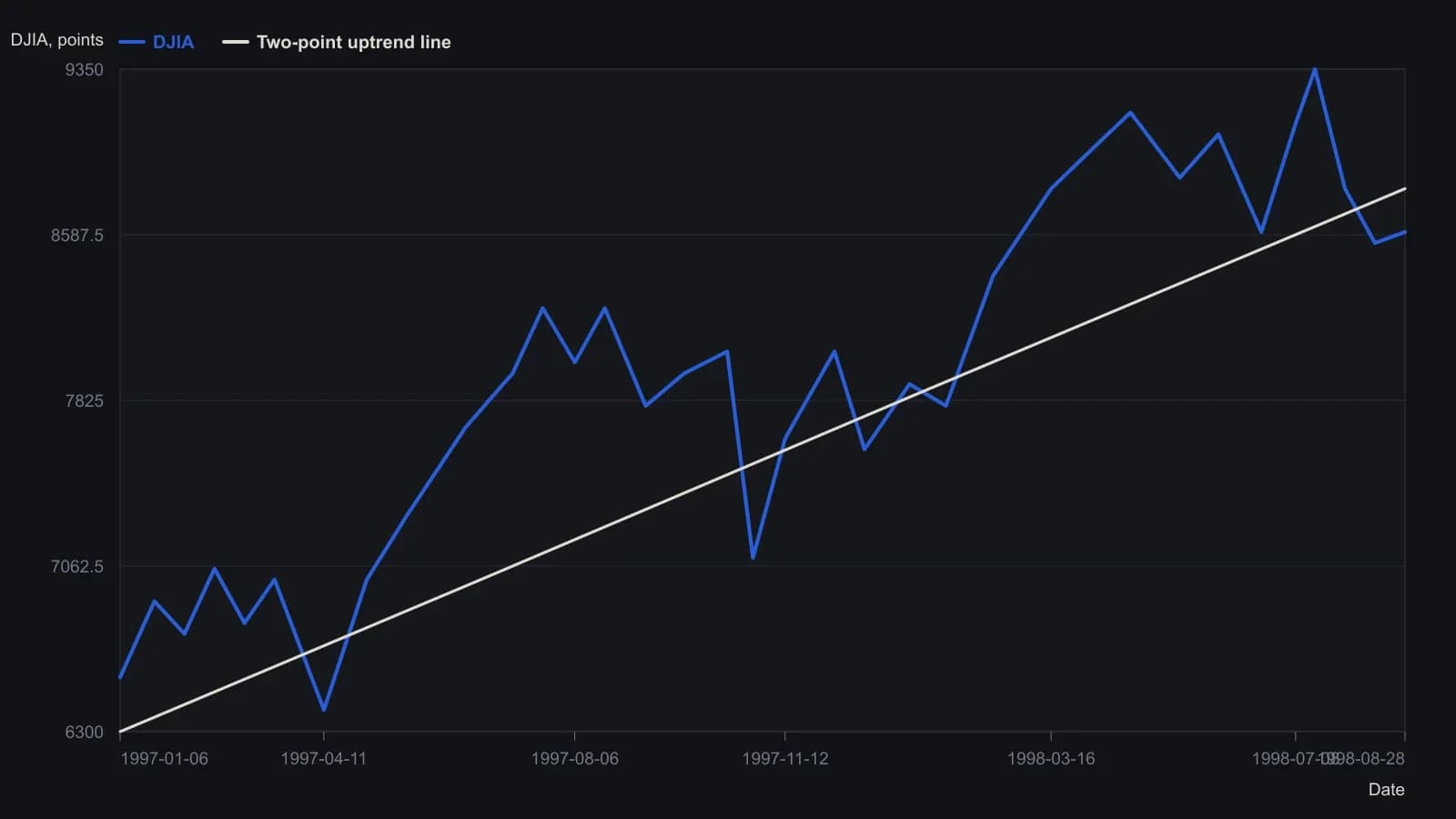

DJIA with the two-point uptrend line, 1997–1998

A trader should see a reproducible uptrend line anchored on the April 1997 low and kept under later pullbacks, so a close through that line is a testable event rather than a line that already sliced the 1997 advance. Daily DJIA levels and the slanted support line were read from the MetaStock screenshot covering January 1997 through August 1998; the July 1998 peak is the high marked E on that screen.
A trader should see a reproducible uptrend line anchored on the April 1997 low and kept under later pullbacks, so a close through that line is a testable event rather than a line that already sliced the 1997 advance. Daily DJIA levels and the slanted support line were read from the MetaStock screenshot covering January 1997 through August 1998; the July 1998 peak is the high marked E on that screen.DJIA · daily · 1997-01-01T00:00:00.000Z to 1998-08-31T00:00:00.000Z

Values are approximate to the nearest 50 index points because they were read from a raster, not a table. A second, shallower line also appears on the same screen and is omitted here. The lower volume pane is not plotted.

Three conditions for a complete entry

A complete entry rule waits for three conditions: a close through the constructed Trendline, failure to print a new continuation extreme, and a later break of the nearby minor swing in the new direction.

The same three-condition sequence, reversed, defines the long-side entry: break of a downtrend line, failure to make a new low, then a rise through the succeeding minor high.

Stop placement from the failed extreme

The protective Stop-loss order is placed beyond the failed continuation extreme so the loss is bounded before the position is opened. The stop can then be tightened as time in the trade increases.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
