Weekly and daily Stochastic oscillator construction on a single daily chart

A daily chart can host a shorter-lookback Stochastic oscillator and a longer-lookback Stochastic oscillator computed from the same high, low, and close series. Documented studies smooth each series with a Moving average, plot shared reference levels, and leave matching Trendlines to be drawn by hand.

  • A shorter-lookback Stochastic oscillator and a longer-lookback Stochastic oscillator can be computed from the same daily high, low, and close series without switching the chart interval.
  • Each raw reading is close minus the lookback low, divided by the lookback high-low range, scaled by 100, then smoothed with a Moving average.
  • Documented studies default the pair to 14 and 70 bars with 3-bar smoothing, plot levels at 80, 20, and a midline, and return both values together.
  • Trendlines that match the source figures must be drawn by hand as static chart lines, because the spreadsheet reconstruction has no reliable coded method for placing them dynamically.
Entries in this reading3 entries
Current trackTrendline128 readingsStochastic oscillator170 readingsMoving average449 readings

Two lookbacks on one daily stream

A daily-chart construction can compute a shorter-lookback Stochastic oscillator and a longer-lookback Stochastic oscillator from the same daily high, low, and close series rather than switching the chart interval.

The same dual-oscillator construction appears as a lower-pane study on a one-year daily index chart and as a daily equity study that plots both oscillators together.

Raw reading, Moving average, and reference levels

Each raw Stochastic oscillator is defined as close minus the lookback low, divided by the lookback high-low range, then scaled by 100, after which a simple Moving average is applied to that series.

One documented implementation uses lookbacks of 14 and 70 bars, each smoothed with a 3-bar Moving average, and plots reference levels at 80, 20, and a midline halfway between those bounds.

A weekly-and-daily study without trading rules

A second implementation names the pair a weekly-and-daily Stochastic oscillator study, exposes configurable daily and weekly periods, and defaults those periods to 14 and 70 with 3-bar smoothing on each. That implementation draws horizontal bands at 20, 50, and 80 and returns the daily Stochastic oscillator value alongside the longer-lookback Stochastic oscillator value.

A third implementation notes that the source article does not supply trading rules and that slow-stochastic practices for the %K and %D pair still apply to the dual-horizon construction.

Spreadsheet traces and static Trendlines

A spreadsheet reconstruction lets the user change the two sampling intervals, then compare the weekly-interval and daily-interval Stochastic oscillator traces with price action on the same worksheet.

The spreadsheet author states there is no reliable coded method in that workbook to draw Trendlines dynamically, so Trendlines matching the source figures must be added by hand as static chart lines.

Daily and weekly Stochastic oscillators on Russell 2000 daily bars

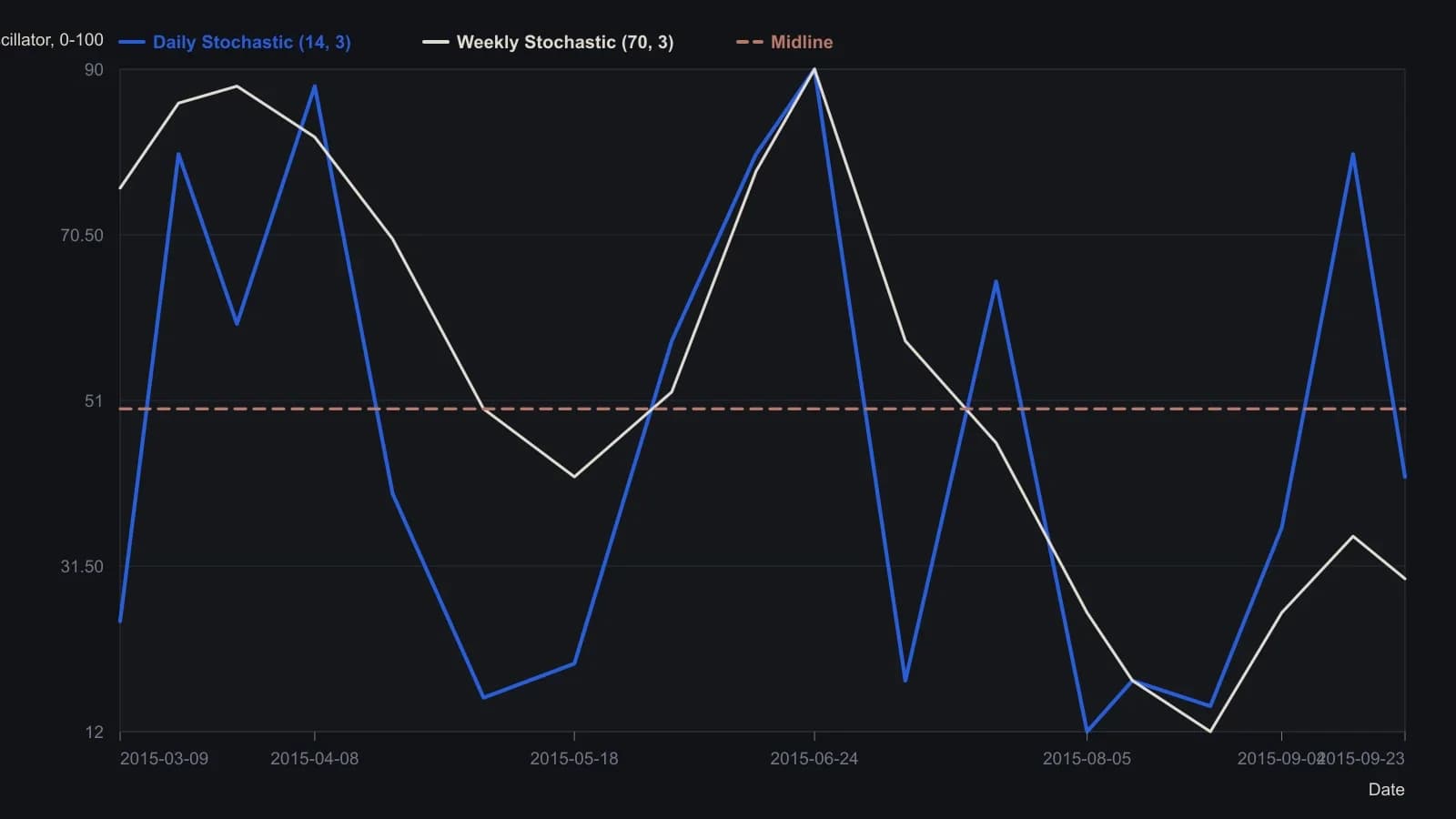

On one Russell 2000 daily stream the 14-day Stochastic, smoothed over three days, swings between oversold and overbought several times, while the 70-day Stochastic, also smoothed over three days, turns more slowly. After the August 2015 break the fast line spikes back toward 80 while the slow line stays near 30, a split that only appears because both lookbacks share the same highs, lows, and closes. Points were read from the spreadsheet plot (0–100 scale, dashed midline at 50) for 9 March 2015 through 23 September 2015.
On one Russell 2000 daily stream the 14-day Stochastic, smoothed over three days, swings between oversold and overbought several times, while the 70-day Stochastic, also smoothed over three days, turns more slowly. After the August 2015 break the fast line spikes back toward 80 while the slow line stays near 30, a split that only appears because both lookbacks share the same highs, lows, and closes. Points were read from the spreadsheet plot (0–100 scale, dashed midline at 50) for 9 March 2015 through 23 September 2015.Russell 2000 · Daily · 2015-03-09T00:00:00.000Z to 2015-09-23T00:00:00.000Z

Spreadsheet controls fix daily length 14 with smoothing 3 and weekly length 70 with smoothing 3. Readings are taken from the published screenshot, so oscillator points are approximate to a few units. Hand-drawn static trendlines mentioned in the source are not part of these series.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
