Entropy-diff as a regime switch between trend following and a price channel

The archive quantized daily S&P closes as up, down, or split-flat and scored the mix with Shannon entropy. An idealized uptrend sat far from random entropy. An idealized channel sat close to it. On a historical SPX window, entropy-diff moving-average crossovers inside a high-entropy channeling zone were presented as candidate points for preferring trend following. Editorial reading: treat that score as a regime switch, and treat the crossover only as a hypothesis that the market is leaving a channel.

  • Daily closes can be quantized as up, down, or split-flat, then scored with Shannon entropy on those two outcomes.
  • An idealized uptrend sat far from random entropy, while an idealized channel sat close to it.
  • Entropy-diff moving-average crossovers inside a high-entropy channeling zone were presented as candidate points for preferring a trend-following procedure over a channel procedure.
  • Editorial reading: treat Shannon entropy as a regime switch, and treat a moving-average crossover on the entropy-diff series only as a hypothesis that the market is leaving a channel.
Entries in this reading3 entries
Current trackPrice channel77 readingsTrend following89 readingsMoving-average crossover108 readings

Quantized days and Shannon entropy

Daily S&P closes can be quantized as up, down, or split-flat using a 0.1 percent threshold, with a flat day counted as half an up day and half a down day. That labeled close-to-close change is a quantized day.

Under that two-outcome scheme, Shannon entropy is a dispersion score on quantized up versus down day frequencies. Higher values mean more mixed, less directional price action. Maximum random entropy equals 1, matching an even mix of up and down mass.

Diff is one minus calculated entropy, so a larger gap from random maximum entropy means more one-sided, trend-like concentration.

Idealized trend and channel

An idealized uptrend constructed with the same quantization produced entropy of 0.544 and a 45.64 percent gap from random entropy.

An idealized channel produced a much smaller gap from random entropy, reported as a 1.1 percent diff, than the trending constructions.

Candidate points in a channeling zone

A channeling zone is a stretch of high-entropy, low-diff price action treated as sideways or consolidating rather than directional.

On SPX from January 2014 to March 2016, moving-average crossovers of the entropy-diff series inside a high-entropy channeling zone were presented as candidate points where a trend-following procedure becomes more plausible than a channel procedure.

A diff moving-average crossover is a moving-average crossover on the entropy-diff series used as a candidate signal that a channeling market may be entering a trend.

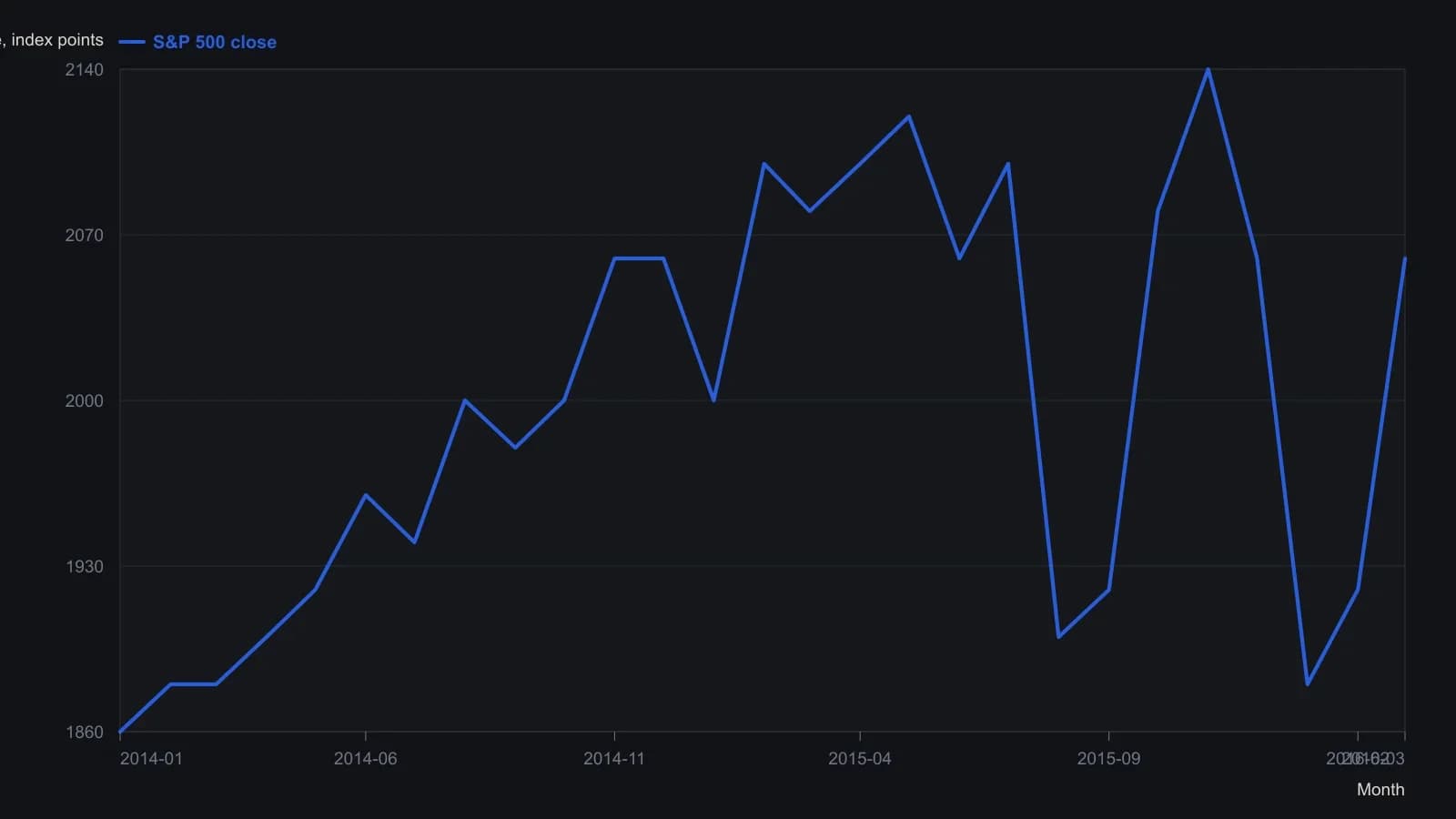

S&P 500 close on the entropy-diff test window

Traders should see a 2014 grind higher, a 2015 stall near the highs, then the August 2015 and January 2016 breaks. The source used this same pane to mark entropy-diff moving-average crossovers that fired while the score sat in the high-entropy red band, and treated those marks only as candidate points to leave a channel and try trend following. Monthly closes were read from the published daily curve against the figure's 1700–2200 scale.
Traders should see a 2014 grind higher, a 2015 stall near the highs, then the August 2015 and January 2016 breaks. The source used this same pane to mark entropy-diff moving-average crossovers that fired while the score sat in the high-entropy red band, and treated those marks only as candidate points to leave a channel and try trend following. Monthly closes were read from the published daily curve against the figure's 1700–2200 scale.SPX · daily · 2014-01-01T00:00:00.000Z to 2016-03-31T00:00:00.000Z

The source quantized daily moves at 0.05 percent, scored 10-day Shannon entropy, and plotted diff = 1 − entropy with 15- and 20-day averages, split at 3.5 percent (green trend versus red channel). That oscillator uses a second 0–60 percent axis and was not traced, because the raster has no tick marks for it.

How the three procedures sit together

Editorial reading: the entropy score does not replace trend following, a price channel, or a moving-average crossover. It is only a way to ask which of those readings is more plausible.

When quantized days are one-sided and diff is large, a trend-following procedure is the more natural match. When entropy is high and diff is small, a price-channel procedure is the more natural match. The moving-average crossover belongs on the entropy-diff series, not on price, and only as a candidate that a channeling zone may be ending.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
