Constructing price envelopes from averages, volatility, and regression

Trading bands, also called envelopes, are drawn as visible outer boundaries intended to contain a security's price path. The same construction discussion shows three width rules: a percentage-envelope around a moving average, a bollinger-band that widens and contracts with measured variability, and a linear-regression-channel whose parallel rails sit equally far from a least-squares-line.

  • Trading bands, also called envelopes, are drawn as visible outer boundaries intended to contain a security's price path, and the construction treats an upper-band touch as a sell signal and a lower-band touch as a buy signal.
  • A percentage-envelope uses a moving-average midpoint with a fixed percentage offset. One illustrated case uses a 20-day average with 2% offsets.
  • A Bollinger-band places edges two standard deviations from a simple moving-average midpoint, so the corridor widens or contracts when measured variability rises or falls.
  • A linear-regression-channel draws parallel rails at equal distance from a least-squares-line. Band-derived signals are described as needing confirmation because price can travel along one edge in a band-walk, especially in strong trends.
Entries in this reading3 entries
Current trackPrice channel77 readingsBollinger Bands84 readingsLinear regression112 readings

Trading bands as visible corridors

Trading bands, also called envelopes, are drawn as visible outer boundaries intended to contain a security's price path. The trading-band is that pair of outer lines, a corridor meant to contain typical movement.

The construction is described as treating an upper-band touch as a sell signal and a lower-band touch as a buy signal.

An early method sketched smoothed waves that tracked the highest and lowest highs for the upper edge and the highest and lowest lows for the lower edge, then projected that pattern forward.

A fixed percent around an average

A later construction uses a moving average as the midpoint and offsets the bands by a fixed percentage. The result is a percentage-envelope: a corridor whose edges sit a fixed fraction above and below that moving-average midpoint. One illustrated case uses a 20-day average with 2% offsets.

A rolling standard-deviation rail

Bollinger-band construction starts from a simple moving-average midpoint and places the bands two standard deviations above and below that average. The bollinger-band is a volatility-scaled corridor: when measured variability rises or falls, those standard-deviation bands widen or contract so typical price movement stays inside the corridor.

One illustrated Bollinger-band specification plots two standard deviations of the prior 20 days around a 20-day moving average. The figure notes that the bands tighten before new short-term trends.

A parallel channel around a fitted line

Price channels built from trendlines are a distinct envelope form. A price-channel takes its edges from trendline geometry rather than from a percent or standard-deviation offset.

A linear-regression-channel places a least-squares-line equidistant from prices above and below it, then draws parallel lines the same distance on each side. A least-squares-line is a straight fitted line placed so prices above and below it are, in aggregate, equally distant from the line.

In that regression-channel construction, the upper parallel is meant to resemble a high-side resistance line and the lower parallel a low-side support line, giving a visual cue when the trend structure changes.

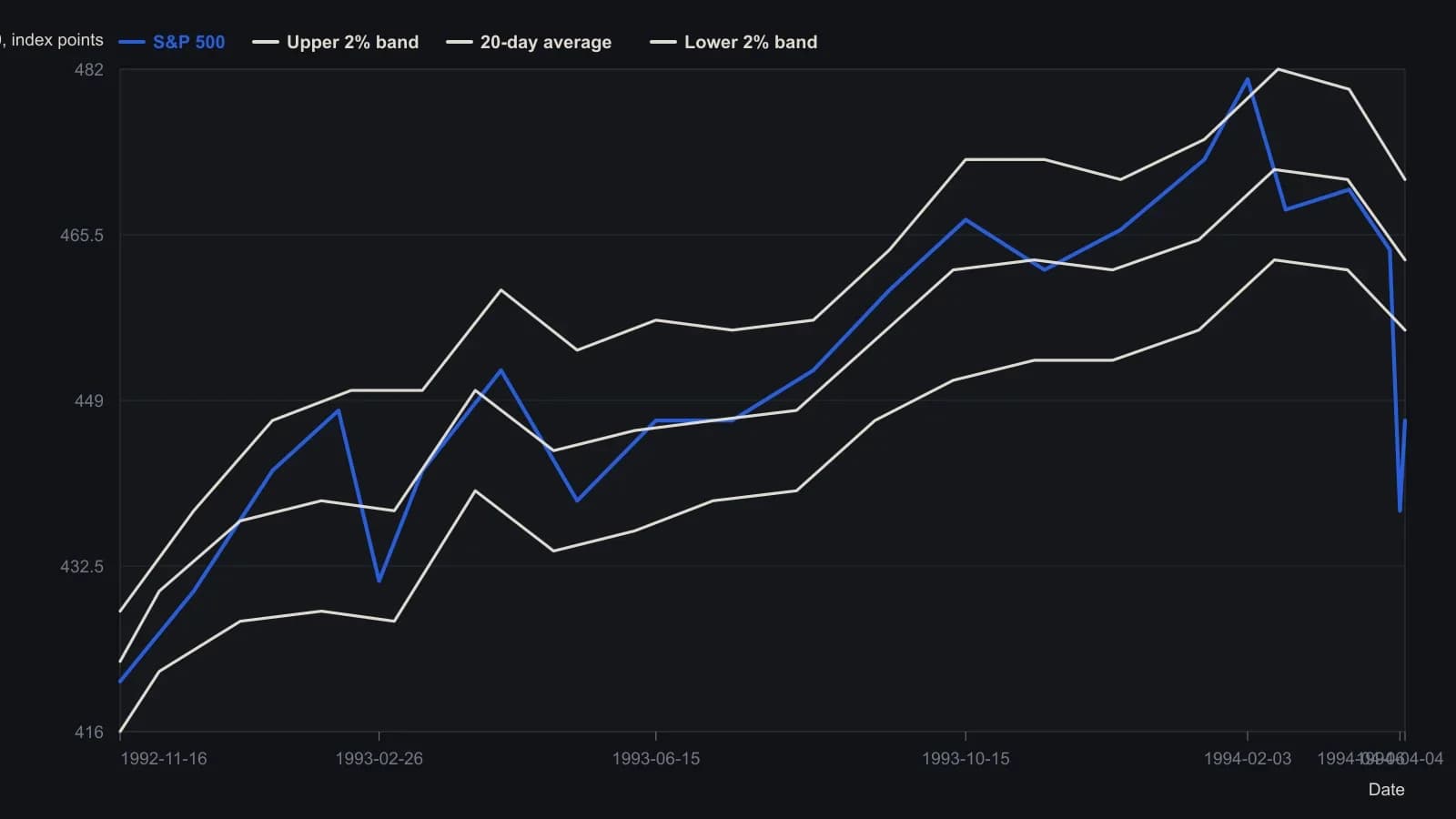

S&P 500 inside 2 percent bands around a 20-day average

A 20-day average with a fixed 2 percent offset holds most of the 1993 S&P 500 advance inside a corridor, then fails when the April 1994 break drives the index through the floor. Levels were read from the plotted sidebar chart, not from a printed table, so they are approximate to the nearest index point.
A 20-day average with a fixed 2 percent offset holds most of the 1993 S&P 500 advance inside a corridor, then fails when the April 1994 break drives the index through the floor. Levels were read from the plotted sidebar chart, not from a printed table, so they are approximate to the nearest index point.S&P 500 · daily · 1992-11-01T00:00:00.000Z to 1994-04-30T00:00:00.000Z

The source fixes the midpoint as a 20-day moving average and the width as 2 percent above and below that average. Digitized from the SuperCharts window dated 6 April 1994; the raster supports about one index point of precision, not tenths.

Confirmation after a band touch

Band-derived signals are described as needing confirmation from other indicators because prices can travel along one band for a long interval, especially in strong trends, before crossing to the opposite side. That stretch is a band-walk, in which price travels along one envelope edge instead of promptly crossing toward the opposite edge.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
