Constructing Calmar ratio and linear regression baselines

Assemble a monthly Calmar ratio over a 36-month window and a least-squares linear forecast from the same ordered market series. Editorial guidance is to hold both specifications fixed when an in-sample baseline is compared with a later out-of-sample result.

  • The Calmar ratio is constructed on a monthly sampling interval by dividing average return over the most recent 36 months by maximum drawdown over that same window.
  • A negative constructed Calmar ratio indicates that the evaluated system or trader recorded a negative result over the last three years.
  • Linear regression relates an independent variable to a dependent variable so the fitted equation can forecast later values, with the least-squares method placing the curve to minimize the sum of squared deviations.
  • Editorial guidance is to keep both specifications unchanged when the in-sample baseline is compared with a later out-of-sample result.
Entries in this reading2 entries
Calmar ratio1 readingCurrent trackLinear regression112 readings

Two constructions from one series

Editorial framing: assemble two complementary quantitative constructions from the same ordered market series, then hold those specifications fixed when an in-sample baseline is compared with a later out-of-sample result.

The first construction is the Calmar ratio, a monthly risk-adjusted score formed by dividing average return over the last 36 months by maximum drawdown over that same window. The second is linear regression, a fitted mapping from an independent series onto a dependent series that yields a forecast of later values.

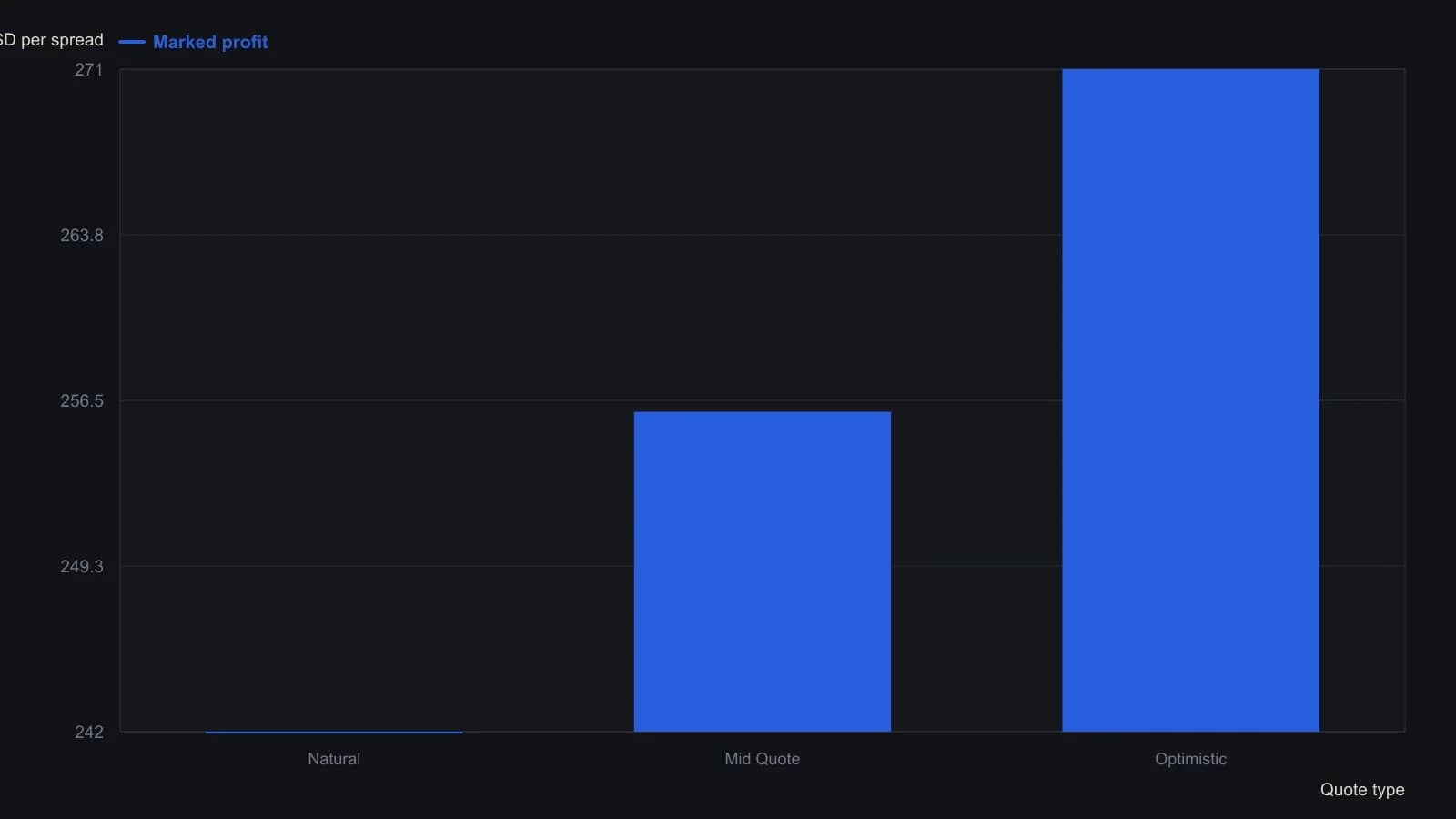

SPY 217-222 call debit spread: quote-type returns on May 1

Three quote-type rows from the source table show the same $230 entry debit and $270 max profit, with realized profit rising from $242 (Natural) to $256 (Mid Quote) to $271 (Optimistic). A trader should read that as a 105.2% to 117.8% return on the same $230 risk, not as a change in the structure itself. Numbers are taken from the Figure 2 quote table, not redrawn from the page layout.
Three quote-type rows from the source table show the same $230 entry debit and $270 max profit, with realized profit rising from $242 (Natural) to $256 (Mid Quote) to $271 (Optimistic). A trader should read that as a 105.2% to 117.8% return on the same $230 risk, not as a change in the structure itself. Numbers are taken from the Figure 2 quote table, not redrawn from the page layout.SPY 17Jun16 217-222 call debit spread · as of May 1, 2017

Entry debit, max profit and max risk are identical across quote types; only the marked profit and the greeks change. Downside and upside breakevens are both 219.30.

Constructing the Calmar ratio

The Calmar ratio is constructed by dividing the average rate of return over the most recent 36 months by the maximum drawdown recorded over that same period. Construction of the Calmar ratio is usually carried out on a monthly sampling interval.

Maximum drawdown is the drawdown figure that appears in the Calmar denominator over the same 36-month window used for average return. Where a mean is needed, it is the sum of observed values divided by the number of observations in the sample.

Constructing the linear forecast

Linear regression is constructed by relating an independent variable to a dependent variable so the fitted equation can be used as a forecast of later values.

A least-squares construction places the fitted curve so that the sum of squared deviations from the observed points is minimized.

After a regression is fitted, R-squared reports the share of variation in the dependent series accounted for by the fitted equation and serves as a relative measure of fit.

Pearson's correlation measures linear association between two series and takes values between +1 and -1, from total negative association to total positive association.

Keeping the specifications fixed

Editorial guidance: once the Calmar window, the monthly sampling interval, the independent and dependent series, and the least-squares fitting rule are chosen, keep those specifications unchanged when the in-sample baseline is compared with a later out-of-sample result.

Editorial reading: the Calmar ratio and the linear forecast are complementary views of the same ordered series. One is a 36-month risk-adjusted score. The other is a fitted forecast whose relative fit is described by R-squared and whose linear association can be described by Pearson's correlation.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
