A three-filter tether and volume trend system

A long-only trend-following procedure is assembled from a tether line, a signed-volume confirmation, and a two-speed moving-average spread. A long entry is allowed only when every filter is true at once, and the flatten rule uses only a close back below the tether line.

  • A conjunction-entry fires only when a close crosses above the tether line, the volume-oscillator is above zero, and the moving-average spread is rising.
  • The tether-exit flattens on a close back below the tether line and does not wait for the volume or moving-average filters to reverse.
  • The same three-filter arithmetic can be restated as spreadsheet rows or wizard conditions without changing the lookbacks or the all-must-pass entry logic.
  • The extra confirmation that cuts false turns can also keep the procedure out of some large later moves.
Entries in this reading3 entries
Current trackOn-balance volume88 readingsTrend following168 readingsMoving average597 readings

The long-only trend-following procedure is assembled from three indicators. A long entry is allowed only when every indicator's condition is true at once.

Trend-following is a holding-period procedure that stays with a directional setup and stands aside whenever any required filter fails.

Three independent predicates

The location filter is the midpoint of the highest high and the lowest low over a 50-bar window. That midpoint is the tether line. It is the location test and the flatten trigger.

The volume confirmation is a seven-bar on-balance-volume-style average. Add volume when the close is above the open, subtract it when the close is below the open, and treat an unchanged bar as zero. The volume-oscillator is that short average of volume signed by whether the close is above or below the same bar's open. On-balance-volume is used here as a signed-volume chart condition that becomes a confirmation filter.

The moving-average filter is the 25-bar simple average of close minus the 200-bar simple average of close, and that spread must be higher than its prior value. A moving-average here is an equal-weight average of ordered closes over a stated lookback. The difference between the shorter and longer average is the mbo, used as a two-speed spread whose latest change must be positive.

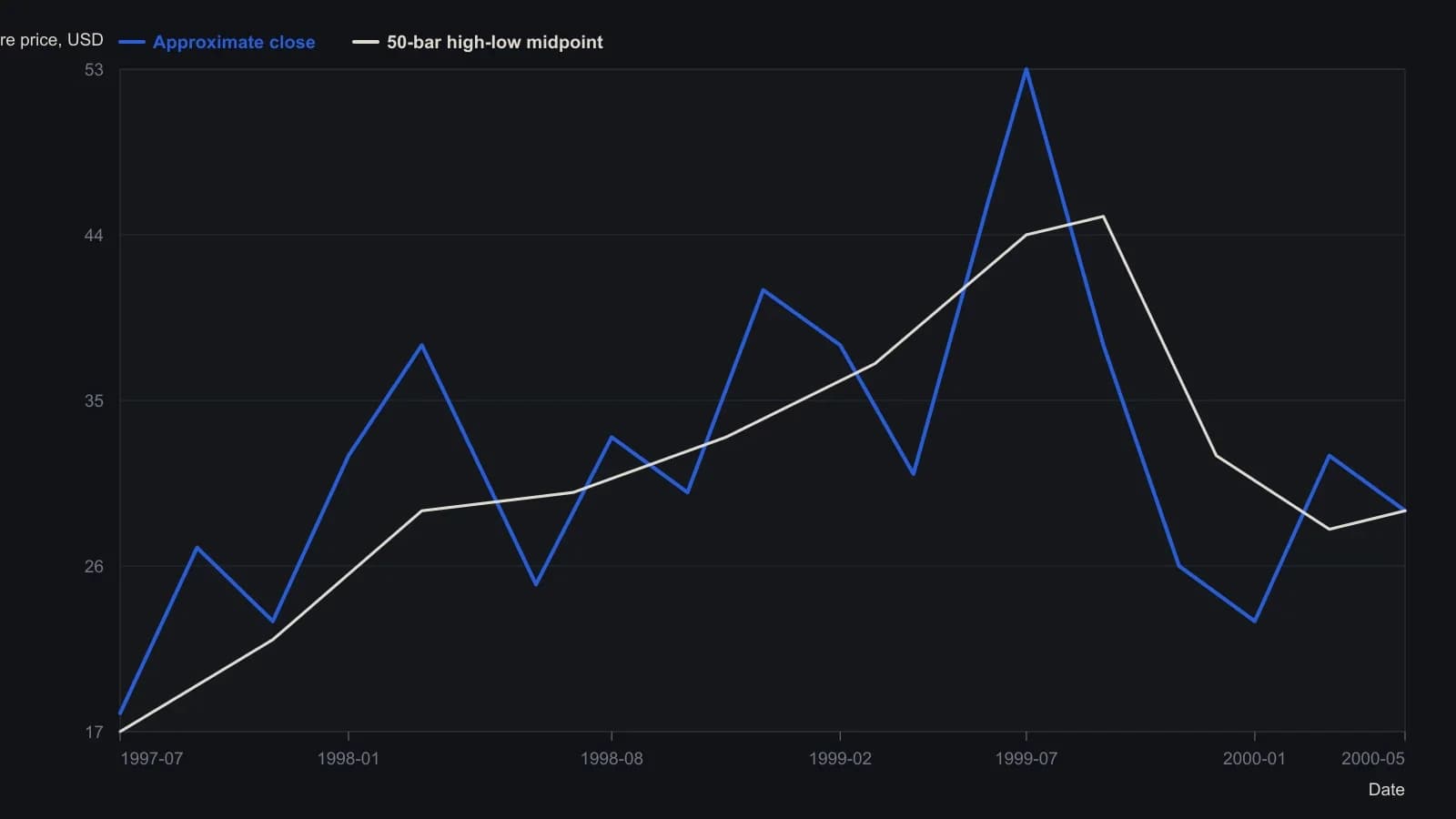

Compaq price versus the 50-bar tether line

A trader should see the long-only location rule on Compaq: price climbs from the high teens into a mid-1999 spike just above 50, then collapses into the low 20s, while the 50-bar high-low midpoint lags both the advance and the break and is the level used to allow a long or to flatten. The points were read from the labeled price scale on the TradeStation-style screenshot; the source printed no numeric table.
A trader should see the long-only location rule on Compaq: price climbs from the high teens into a mid-1999 spike just above 50, then collapses into the low 20s, while the 50-bar high-low midpoint lags both the advance and the break and is the level used to allow a long or to flatten. The points were read from the labeled price scale on the TradeStation-style screenshot; the source printed no numeric table.Compaq Computer Corp (CPQ) · Daily · 1997-07-01T00:00:00.000Z to 2000-05-31T00:00:00.000Z

Digitized from a low-resolution software screenshot of daily CPQ. Prices are approximate to the nearest one to two dollars. Month stamps are inferred from the 1998, 1999 and 2000 axis marks. The volume-oscillator and moving-average-spread panes share the figure but use other scales and were not transferred.

When the procedure enters, exits, or stands aside

The specified long entry is a close crossing above the tether line, a volume-oscillator above zero, and a rising moving-average spread, required together. That conjunction-entry fires only when the location, signed-volume, and moving-average tests are all true.

The specified exit is a close moving back below the tether line. The volume and moving-average filters are not required to flatten. That tether-exit uses only a close back through the range midpoint and does not wait for the other filters to reverse.

If any required filter fails, the procedure stands aside.

The same arithmetic in other encodings

One encoding places both the entry and the exit as market orders on the next bar after the conditions print.

The same three-filter arithmetic can be restated as spreadsheet rows or wizard conditions without changing the lookbacks or the all-must-pass entry logic.

Recoding the same rules in another package need not reproduce every sample entry and exit from the original write-up.

The extra confirmation that cuts false turns can also keep the procedure out of some large later moves.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
