On-balance volume confirmation, price-indicator divergence, and bounded exits

On-balance volume is a running sum of volume signed only by close direction. This article shows how the same line is read as confirmation or as price-indicator divergence, and why a stop-loss order is treated as required protection before a directional idea becomes a position.

  • On-balance volume is a running sum that adds a period's volume when the close is higher than the prior close and subtracts that volume when the close is lower.
  • Only close direction decides whether volume is added or subtracted. The size of the price change does not change the step, while heavier volume moves the line farther than light volume.
  • The line moving with price is read as confirmation. A reverse relationship is price-indicator divergence, and an isolated divergence is not by itself a complete entry rule.
  • A stop-loss order, including a trailing stop after entry, is presented as required protection around these on-balance volume and price-indicator divergence readings.
Entries in this reading3 entries
Current trackOn-balance volume88 readingsPrice-indicator divergence167 readingsStop-loss order297 readings

How on-balance volume is built

On-balance volume is a running sum that adds a period's volume when the close is higher than the prior close and subtracts that volume when the close is lower.

Only the direction of the close decides whether volume is added or subtracted. The size of the price change does not change the magnitude of the on-balance volume step.

The size of each on-balance volume step is set by that period's volume, so heavier volume moves the line farther than light volume.

The method can be computed on any interval that supplies a net price change and a volume figure. Daily bars are the usual teaching case.

Confirmation and price-indicator divergence

A common reading is confirmation: the on-balance volume line rising or falling with price is taken as evidence that volume is supporting the price trend.

A reverse relationship between price swings and on-balance volume swings is read as price-indicator divergence. That reverse relationship can precede a change in the price trend.

The same on-balance volume construction can be used for both confirmation and price-indicator divergence. Different operators can apply that construction in different ways with different outcomes.

A stop-loss order around the reading

A stop-loss order, including a trailing stop after entry, is presented as required protection around these on-balance volume and price-indicator divergence readings.

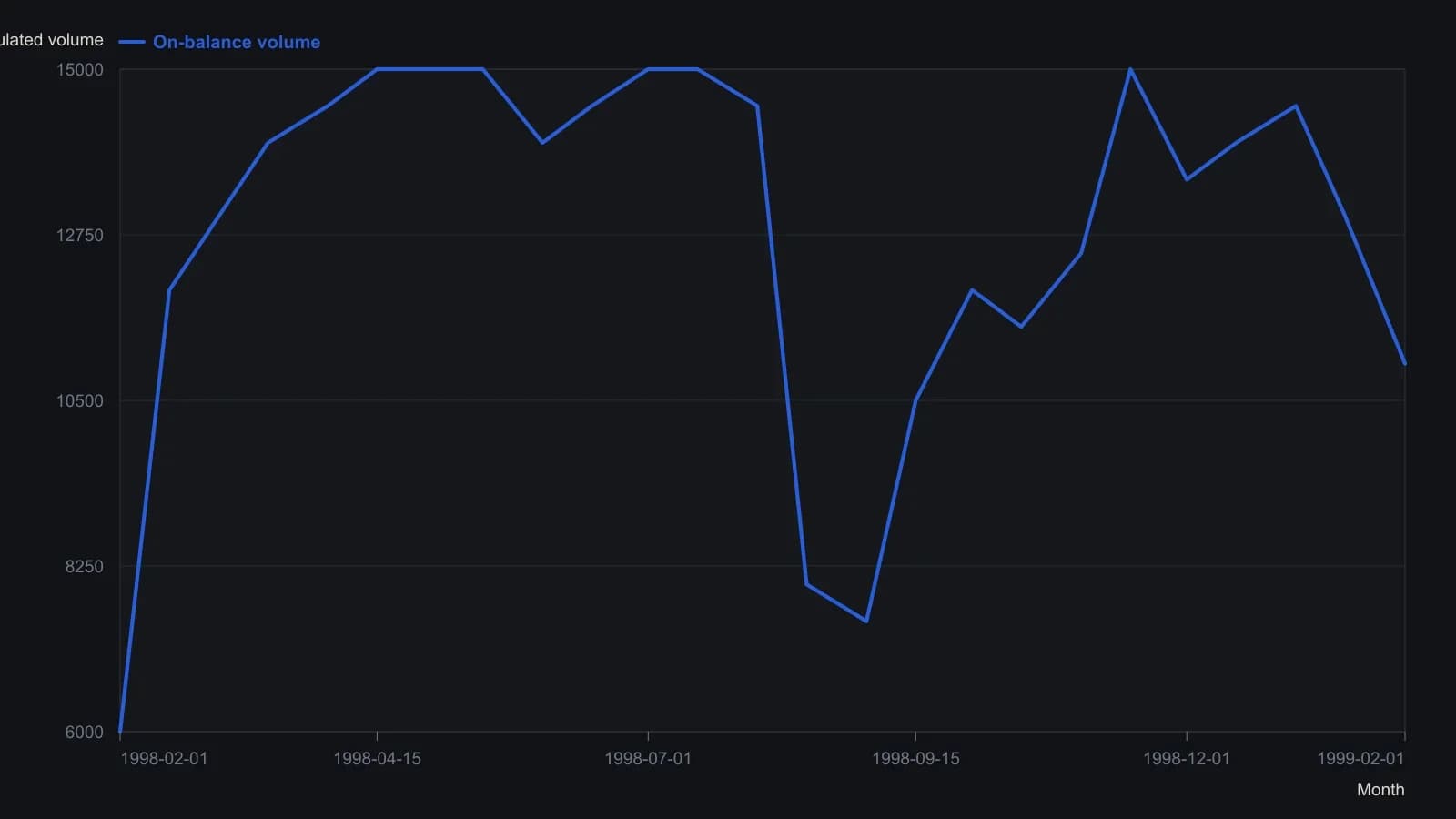

Total Renal Care on-balance volume, February 1998–February 1999

On-balance volume rises with the 1998 advance, then collapses with the August break as participation expands—the line confirms the price trend rather than diverging from it. Levels were read off the MetaStock price–OBV–volume layout the article prints as Figure 1 and rounded to the nearest 500.
On-balance volume rises with the 1998 advance, then collapses with the August break as participation expands—the line confirms the price trend rather than diverging from it. Levels were read off the MetaStock price–OBV–volume layout the article prints as Figure 1 and rounded to the nearest 500.Total Renal Care · daily · 1998-02-01T00:00:00.000Z to 1999-02-28T00:00:00.000Z

Daily OBV is a running sum of volume signed only by whether the close was up or down; the printed MetaStock scale is the source’s contracted volume units, so only relative level and direction are meaningful.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
