2003issue C081

On-balance volume as a market-breadth participation ledger

On-balance volume keeps a signed running total of up-volume and down-volume. The historical workflow treats the market as aligned when that ledger tracks price, and treats a later split as a possible early sign that the swing is changing character.

  • On-balance volume adds a session's volume on a higher close, subtracts it on a lower close, and holds steady on an unchanged close.
  • An aligned-market is the condition in which the cumulative volume total tracks price, taken as a sign that participation matches the visible trend.
  • A volume-price-divergence is a split in direction or pace between price and the ledger, used as a warning that the current swing may be changing.
  • Editorial reading: first confirm that price and the ledger move together, then treat a later split as a falsifiable hypothesis that the swing is changing character.
Entries in this reading2 entries
Current trackOn-balance volume88 readingsVolume-price analysis207 readings

How the running total is classified

On-balance volume is a cumulative volume series. It adds the current session's volume when the close is higher than the prior close, subtracts that volume when the close is lower than the prior close, and is left unchanged when the close matches the prior close.

The indicator is maintained as a running total of sessions classified as up-volume or down-volume. Up-volume is session volume treated as positive because the close is higher than the prior close. Down-volume is session volume treated as negative because the close is lower than the prior close.

Reading price with the signed total

Volume-price analysis reads price direction together with the signed volume total to judge whether participation confirms or disputes the visible move.

When price and the cumulative volume total move in step, the market is described as aligned and healthy. That state is an aligned-market: a condition in which the cumulative volume total tracks price, taken as a sign that participation matches the visible trend.

Splits as a change-of-character warning

A split between the cumulative volume total and price is treated as a possible early sign that price behavior may change, including from advance to decline or from sideways to trending.

That split is a volume-price-divergence: a difference in direction or pace between price and the cumulative volume total, used as a warning that the current swing may be changing. Some analysts overlay the cumulative volume total on the price series so those splits are easier to inspect.

A June case of a shared breakout

A case in which both a major industrial average and its on-balance volume broke out together in June is used to illustrate near-term participation supporting the advance.

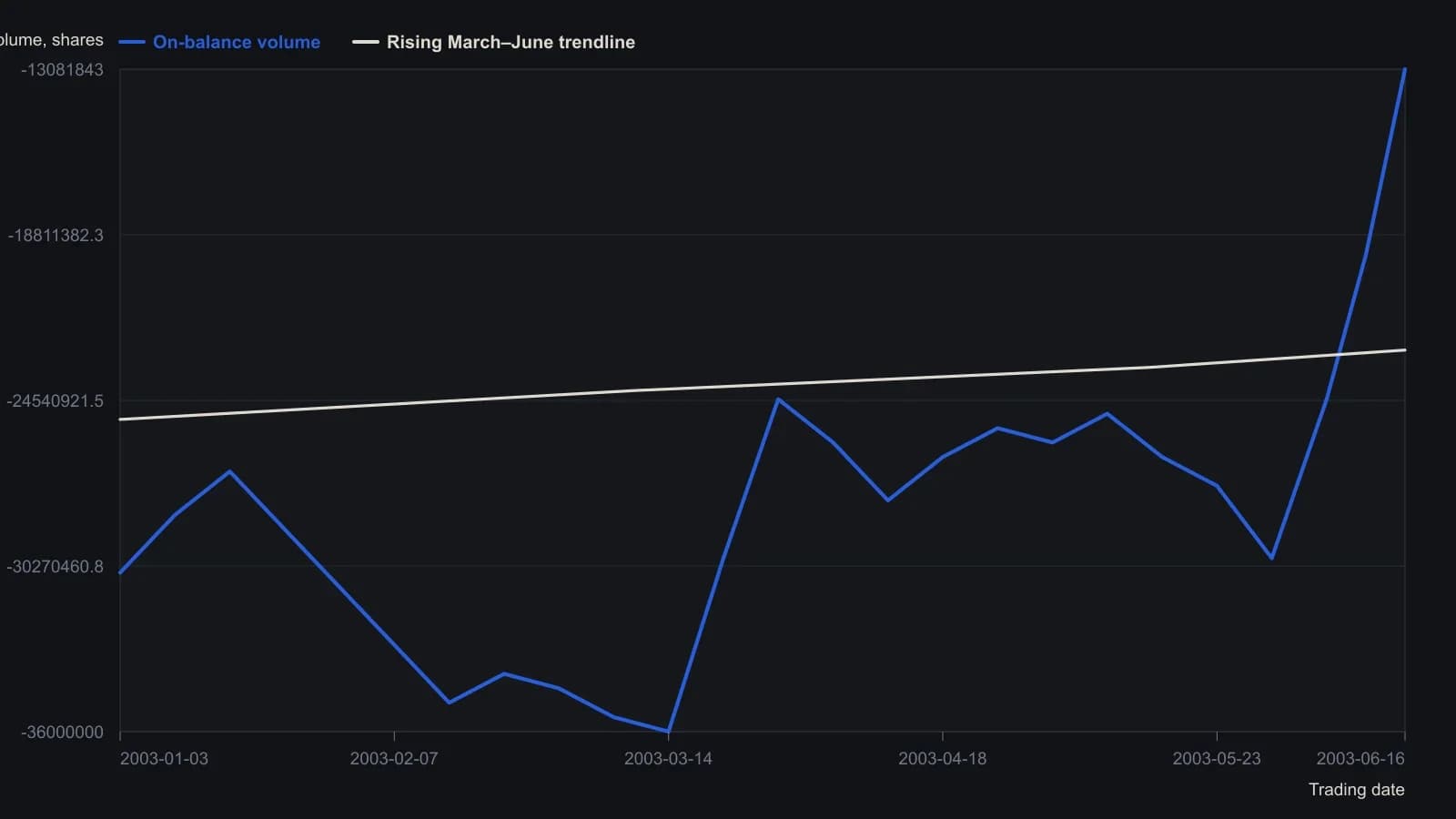

Dow Jones daily on-balance volume into the June 2003 breakout

The winter selloff drives the signed volume total down with price, the March low turns the ledger up, and in June that running total clears the rising line drawn on the source plot as the Dow prints 9318.96. That joint thrust is the in-gear, shared-breakout case the column is teaching. Levels are read from the daily $INDU chart printed with the piece; −13,081,843 is the last on-balance-volume figure written on the scale, and earlier points are digitized from the curve against the printed ticks.
The winter selloff drives the signed volume total down with price, the March low turns the ledger up, and in June that running total clears the rising line drawn on the source plot as the Dow prints 9318.96. That joint thrust is the in-gear, shared-breakout case the column is teaching. Levels are read from the daily $INDU chart printed with the piece; −13,081,843 is the last on-balance-volume figure written on the scale, and earlier points are digitized from the curve against the printed ticks.$INDU · Daily · 2003-01-01T00:00:00.000Z to 2003-06-30T00:00:00.000Z

Granville’s rule on the source plot is unchanged: add the session’s volume after an up close, subtract it after a down close, leave it unchanged on a flat close. Sample dates follow the month ticks (03, F, M, A, M, J) and are weekly approximations, not a printed session calendar. Intermediate levels are read to the nearest half-million; only the final print is exact.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
