Constructing the McClellan oscillator and a calibrated summation index

The McClellan oscillator is the spread between 0.1 and 0.05 exponential smoothers of the daily advance-decline difference. The companion summation index is a running total of those readings and can be seeded to a +1000 neutral level before later values are added.

  • The same oscillator construction can track momentum in price, volume, or advance-decline counts, and the usual market-breadth form starts from the daily advance-decline difference.
  • Both exponential averages are seeded at zero, each trend is updated as the prior trend plus its smoothing constant times the gap to the latest advance-decline difference, and the oscillator is the 0.1 trend minus the 0.05 trend.
  • Starting the summation index at zero can keep it below zero for an entire illustrated window, so the layout uses a seed of 1000 minus 9 times the 0.1 trend plus 19 times the 0.05 trend.
  • After that +1000 neutral level is set, each later value adds the newest oscillator reading, and the calibrated index is treated as a bull-market reading above zero and a bear-market reading below zero.
Entries in this reading2 entries
Exponential smoothing117 readingsCurrent trackMarket breadth120 readings

Three steps to the oscillator

The same oscillator construction can track momentum in price, volume, or advance-decline counts. The usual market-breadth application uses the daily difference between advancing and declining listings. Market breadth is a participation signal built from how many listings advance versus decline, not from a single price series.

That daily series is the advance-decline difference: the count of advancing issues minus the count of declining issues. Building the McClellan oscillator is a three-step process. Form the daily advance-minus-decline difference, smooth that series with two exponential averages, then take the difference of those two averages.

The faster smoother is the ten-percent trend and uses a 0.1 constant. The slower smoother is the five-percent trend and uses a 0.05 constant. Both series are seeded at zero in the worked layout.

Exponential smoothing is a recursive average that blends each new observation with the prior average through a fixed smoothing constant. Each trend update equals the prior trend plus the smoothing constant times the gap between the latest advance-decline difference and that prior trend.

The McClellan oscillator equals the 0.1 trend minus the 0.05 trend. It is the point spread between the 10% trend and the 5% trend of the advance-decline difference.

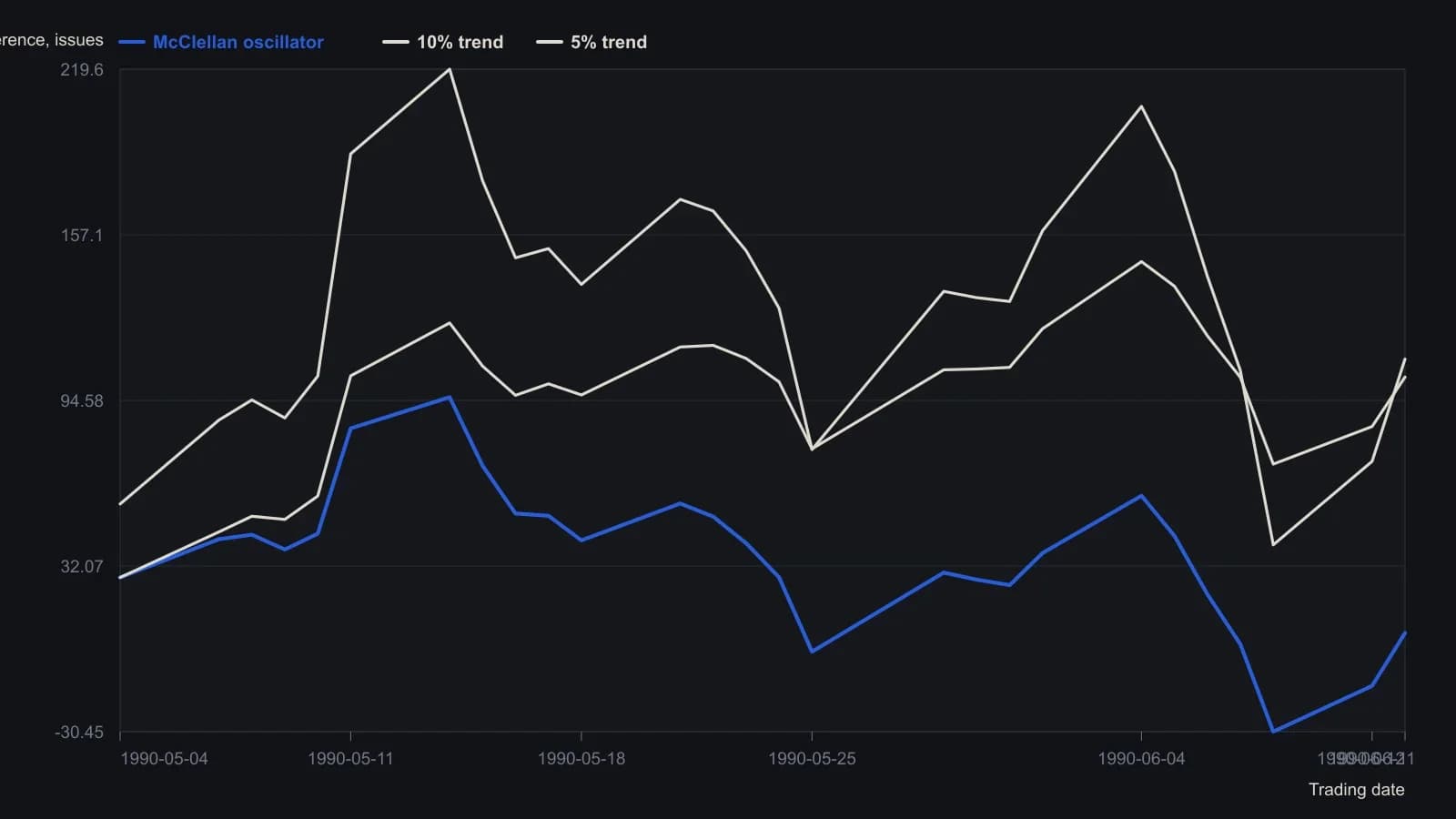

McClellan oscillator from 10% and 5% NYSE trends

The tradeable line is only the spread between the slower 10% trend and the faster 5% trend of daily NYSE net advances. A mid-May breadth thrust lifts the oscillator near 96 before it fades through zero in late May and again in early June. All three series are the worksheet values from the construction table, 4 May through 12 June 1990, with both averages seeded at zero.
The tradeable line is only the spread between the slower 10% trend and the faster 5% trend of daily NYSE net advances. A mid-May breadth thrust lifts the oscillator near 96 before it fades through zero in late May and again in early June. All three series are the worksheet values from the construction table, 4 May through 12 June 1990, with both averages seeded at zero.NYSE advances and declines · daily · 1990-05-04T00:00:00.000Z to 1990-06-12T00:00:00.000Z

Both exponential averages are seeded at zero, as the McClellans recommend. The 10% trend uses smoothing constant 0.1; the 5% trend uses 0.05. Oscillator equals 10% trend minus 5% trend.

When the summation index starts at zero

The companion summation index is the running total of oscillator values. Starting that total at zero can keep the index below zero for an entire illustrated sample window.

Neutral calibration at +1000

A seed of 1000 minus 9 times the 0.1 trend plus 19 times the 0.05 trend places the summation index on a +1000 neutral level before later oscillator readings are added. Neutral calibration means seeding the cumulative index so a designated level stands for a balanced regime rather than an arbitrary spreadsheet start.

After that seed is set, each later summation value equals the previous calibrated total plus the newest oscillator reading.

With the 1000-neutral calibration, a summation index that remains above zero is treated as a bull-market reading and a drop below zero is treated as a bear-market reading.

A minimum run of 40 periods

The construction note recommends computing the oscillator for at least 40 periods, even though the illustrated calibration used 28 observations because of space limits.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
