1994issue C051-8

Read one advance-decline pair through three windows

Daily advancing issues and declining issues are one two-count dataset. That pair can be read as a smoothed participation average, as a short-versus-long moving-average spread, and as a breadth stochastic on cumulative DDI, so each window can be written as a timing hypothesis rather than collected as another look-alike oscillator.

  • Daily advancing issues and declining issues can be studied raw, as moving-average spreads, as a daily difference of issues, or as ratios aimed at overbought and oversold states and at the direction of the broad market.
  • STIX and the McClellan oscillator are shown turning together from the same advance-decline inputs, with small differences from calculation and smoothing, and in that 1993 window the McClellan series missed its overbought zone while reaching an oversold reading in early November.
  • The link from advance-decline data to price is broad but neither exact nor constant, so cumulative DDI can rise while the market stays in a narrow range. A five-period breadth stochastic flags extremes on that cumulative series, with an 80/20 crossover marked against a broad stock index and readings of 100 and 0 noted as earlier reversal alerts.
  • Which breadth construction to use is a function of the intended trading horizon.
Entries in this reading3 entries
Current trackMarket breadth120 readingsStochastic oscillator170 readingsMoving average449 readings

One pair, three windows

Advancing issues are the daily count of listed stocks that closed higher, and declining issues are the daily count of listed stocks that closed lower. The pair can be studied raw, as moving-average spreads, as a net difference, or as ratios aimed at overbought and oversold states and at the direction of the broad market.

The daily difference of issues is that one-session net. The ADI index expresses advancers as a percentage of advancers plus decliners. The DDI index scales net advances by the sum of advancers and decliners, and cumulative DDI is the running total of that scaled series.

The same pair is read here through three windows: a smoothed participation average, a short-versus-long moving-average spread, and a stochastic bound on cumulative net advances.

A smoothed participation average

STIX is a short-horizon exponential average of the ADI index. It is a 21-day, 9 percent exponential average: today's value is 0.09 times the ADI index plus 0.91 times yesterday's STIX, and the ADI index is 100 times advancers divided by advancers plus decliners.

STIX is described as usually falling between 42 and 58. In the mid-to-late 1993 overlay a reading above 54 was labeled overbought in September, and its peaks and troughs were aligned with those of a broad stock index.

Breadth thrust is a short exponential average of the ADI index used to watch for a rapid participation surge. It is a 10-day exponential average of the ADI index, and a climb above 60 percent inside two weeks is presented as a pattern often associated with the start of bull markets.

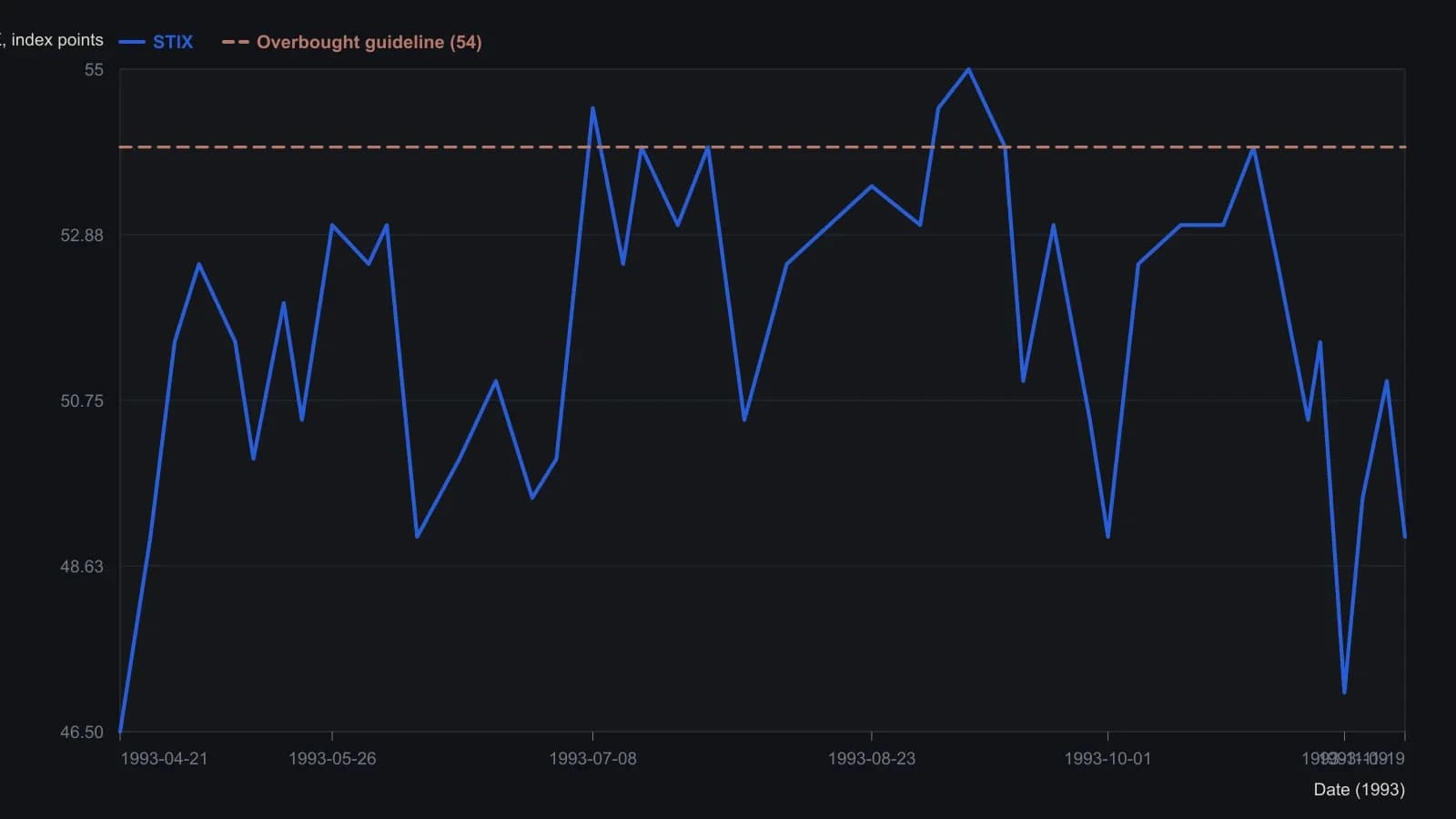

STIX through the 54 overbought line, April–November 1993

The 21-day exponential advance-share average (STIX) follows the same peaks and troughs as the cash S&P 500 across this stretch and breaks above 54 in September, the overbought reading the source flagged. Levels were read off the printed Figure 2 curve, not from a numeric table, so they are approximate to about half a point.
The 21-day exponential advance-share average (STIX) follows the same peaks and troughs as the cash S&P 500 across this stretch and breaks above 54 in September, the overbought reading the source flagged. Levels were read off the printed Figure 2 curve, not from a numeric table, so they are approximate to about half a point.NYSE advance-decline (STIX) vs S&P 500 · Daily · 1993-04-01T00:00:00.000Z to 1993-11-30T00:00:00.000Z

STIX is the 9 percent (21-day) exponential average of 100 × ADI / (ADI + DCI). The source treats this sample’s usual band as 42–58 and calls September overbought once STIX is above 54. The printed series begins after the EMA warmup, in late April.

A short-versus-long spread

The McClellan oscillator is the spread between a shorter and a longer exponential average of net advances. It is defined as the 19-day exponential average of net advances minus the 39-day exponential average, with conventional zones near +70 to +100 and -70 to -100.

A 10-day exponential average of the daily net-advance series is used as an overbought and oversold gauge with reference levels above +200 and below -200.

STIX and the McClellan oscillator, built from the same advance-decline inputs, are shown turning together in 1993, with small differences attributed to calculation and smoothing. In that window the McClellan series did not reach its overbought zone and did reach an oversold reading in early November.

A stochastic bound on cumulative DDI

The link between advance-decline data and price is described as broad but neither exact nor constant. Cumulative DDI can rise while the market remains in a narrow range, as noted for July-August and September-October 1993.

A five-period stochastic of that cumulative series is the breadth stochastic: a stochastic oscillator applied to cumulative net advances rather than to price. It is used to flag breadth extremes. An 80/20 crossover rule is marked against a broad stock index, and readings of 100 and 0 are noted as earlier reversal alerts.

Horizon chooses the construction

Which breadth construction to use is presented as a function of the intended trading horizon.

Editorial: match the window to the intended trading horizon, write the zone or crossover in advance, and treat a miss as a failed hypothesis rather than as a prompt to switch oscillators.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
