Constructing an advance-decline oscillator from one listed tape

A capitalization-weighted index can rise while only a few constituents advance. This article follows one advance-decline tape through a cumulative total, a two-speed oscillator, a simple overlay, and a slower summation so participation can be compared with the index.

  • Capitalization-weighted indexes can rise while only a few constituents advance, so market-breadth series are built to picture participation across the full list.
  • A two-speed-breadth-oscillator is the 19-period exponential average of the advance-decline-difference minus the 39-period average, and it is read at an overbought-oversold-band extreme, on price-indicator-divergence, and at a midpoint-cross.
  • Daily advance-decline-difference values serve short-horizon momentum, weekly values serve a longer horizon, and a 10-day simple moving average of the same difference can overlay the oscillator.
  • A breadth-summation-index adds each oscillator reading to the prior total, and a ratio-adjusted-breadth input is read against major-bottom and major-top chart contexts when price diverges.
Entries in this reading3 entries
Current trackMarket breadth120 readingsPrice-indicator divergence142 readingsMoving average449 readings

Why participation is built as its own series

Capitalization-weighted indexes can rise while only a few constituents advance, so market-breadth series are built to picture participation across the full list rather than how the capitalization-weighted index is moving.

The three usual listed-market breadth characterizations are advances versus declines, up versus down volume, and new highs versus new lows. The constructions below use the advance-decline-difference, the session count of advancing issues minus declining issues, as the raw input to the averages and oscillators.

The cumulative-advance-decline

A cumulative-advance-decline is the running total of daily advance-decline-difference values. Its trend can diverge from a capitalization-weighted index over the same advance.

The slope of the total is the feature, not short-horizon turning points.

A two-speed-breadth-oscillator

One two-speed-breadth-oscillator is the 19-period exponential average of the advance-decline-difference minus the 39-period exponential average. Those lengths match 10 percent and 5 percent smoothing-constant values, using period equals two divided by the percentage, minus one.

Construction charts for that oscillator mark overbought-oversold-band outer thresholds at plus 100 and minus 100, with suggested inner bands from plus 70 to plus 100 and from minus 70 to minus 100.

Three readings on the same oscillator

The oscillator is read for three conditions: an overbought or oversold extreme, price-indicator-divergence from the price trend, and a midpoint-cross as a trend signal.

An alternative oversold construction waits for a recross back above minus 100 instead of treating the first break of that threshold as an upside signal.

Daily advance-decline-difference values are specified for short-horizon momentum. Weekly differences are specified when a longer horizon is required.

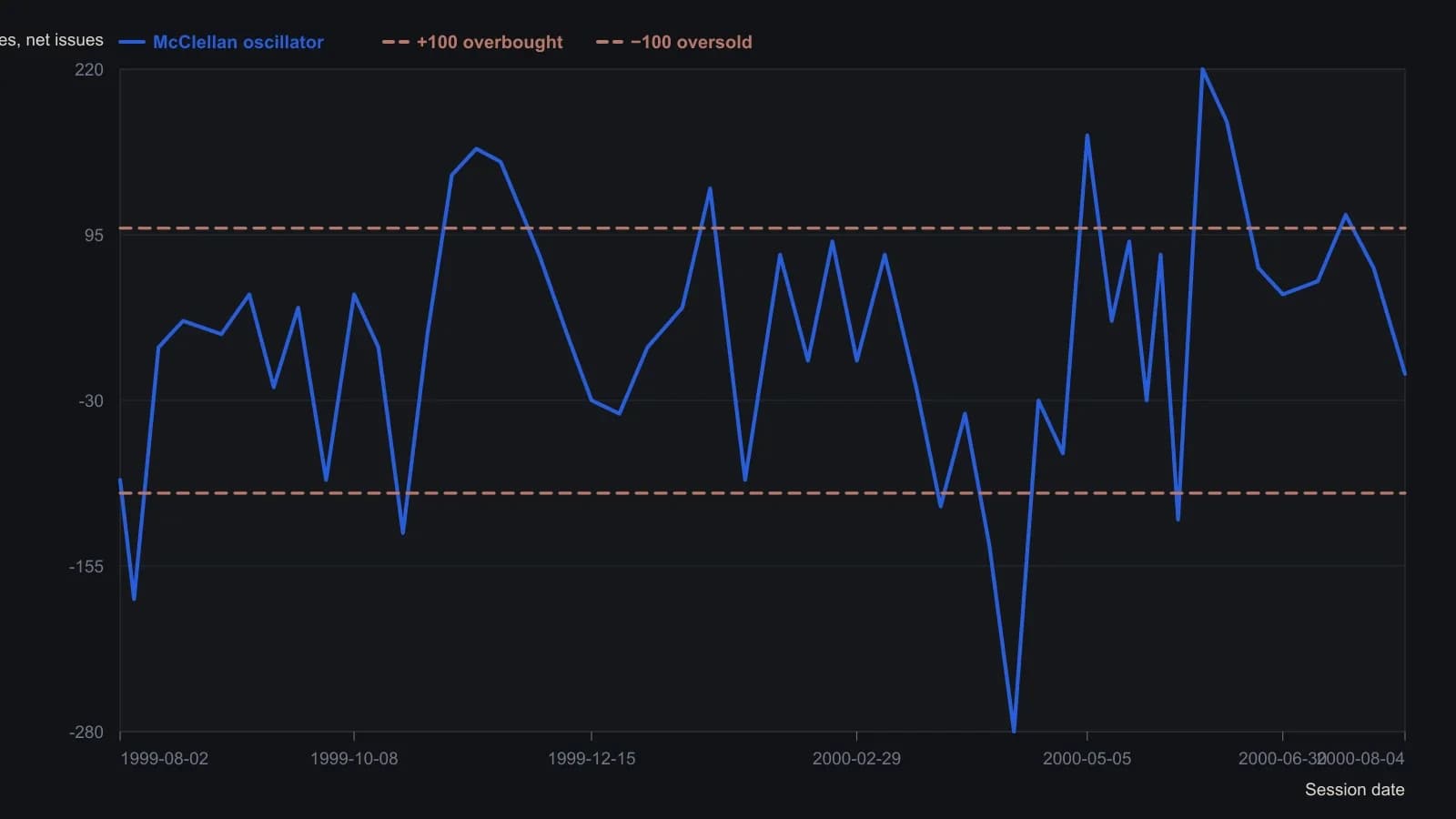

Nasdaq McClellan oscillator against +100 and −100 extremes

Daily 19-day minus 39-day exponential spread of Nasdaq advances minus declines from August 1999 into early August 2000. A trader should watch the +100 and −100 lines the article treats as overbought and oversold: the oscillator is orderly through the winter, then prints much wider extremes into the April 2000 crash (near −280) and the June rebound (near +220). Coordinates were read off the published MetaStock pane; no numeric table was printed.
Daily 19-day minus 39-day exponential spread of Nasdaq advances minus declines from August 1999 into early August 2000. A trader should watch the +100 and −100 lines the article treats as overbought and oversold: the oscillator is orderly through the winter, then prints much wider extremes into the April 2000 crash (near −280) and the June rebound (near +220). Coordinates were read off the published MetaStock pane; no numeric table was printed.NASDAQ Composite · Daily · 1999-08-02T00:00:00.000Z to 2000-08-04T00:00:00.000Z

Construction is the 10% EMA minus the 5% EMA of daily advances minus declines (19-day and 39-day). The author also mentions optional bands at ±70. Digitized from the raster and rounded to 10 oscillator units; later swings are larger than the pane’s labeled +200/−300 ticks can resolve precisely.

Overlay a 10-day simple average

A 10-day simple moving average of the advance-decline-difference can be overlaid on the two-speed-breadth-oscillator. The exponential construction tends to change direction shortly before the simple average.

A breadth-summation-index for major turns

A longer-horizon breadth-summation-index equals the prior summation plus the current oscillator. A ratio-adjusted-breadth input replaces the raw net count with 1000 times the advance-decline-difference divided by the sum of advances and declines.

Chart convention looks for a major-bottom context below minus 1300 and a major-top context above 1600 when price diverges.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
