Constructing the McClellan oscillator and summation index

An exchange-wide breadth oscillator is the gap between a faster and a slower exponential average of net advances. Accumulating those daily residuals produces a summation index whose published numeric tripwires are construction choices that can be recomputed and tested.

  • The McClellan oscillator is an exchange-wide market-breadth measure built from net advances, not from the price of any single listed security.
  • The oscillator equals the 10 percent exponential average of net advances minus the 5 percent exponential average of the same series, also described as a 19-day exponential average minus a 39-day exponential average.
  • Conventional construction treats readings above +100 as overbought and readings below -100 as oversold, with directional signals defined as a move from oversold into positive territory or from overbought into negative territory.
  • The summation index is a running total of daily oscillator readings, recentered so +1000 reads as neutral, with a conventional end-of-decline reference at -1200 and a later confirmation threshold at +2000.
Entries in this reading3 entries
Exponential smoothing117 readingsCurrent trackMarket breadth120 readingsMoving average449 readings

An exchange-wide residual, not a single-stock chart

The McClellan oscillator is an exchange-wide market-breadth measure. It is built from the smoothed gap between advancing and declining issues and is not computed from any single listed security.

Daily market breadth is the daily gap between how many listed issues rose and how many fell on an exchange. In this construction that gap is recorded as net advances: advancing issues minus declining issues. Net advances are the raw input series for both the oscillator and the companion summation index.

Two exponential averages of net advances

Exponential moving averages are used to smooth the net-advance series. An exponential moving average is a recursive smoother that applies a constant weight to the newest observation and the remainder to the prior average. The smoothing constant is the percentage weight given to the latest net-advance reading when the average is updated, which assigns greater weight to the newest observation.

The oscillator equals the 10 percent exponential average of net advances minus the 5 percent exponential average of the same series. The same residual is also described as a 19-day exponential average minus a 39-day exponential average.

Overbought and oversold crossings

Conventional construction treats oscillator readings above +100 as overbought and readings below -100 as oversold. The overbought threshold is that conventional ceiling, used to mark unusually one-sided advance strength. The oversold threshold is the conventional floor, used to mark unusually one-sided decline strength.

The published crossing rules treat a move from the oversold region into positive territory, and a move from the overbought region into negative territory, as the oscillator's directional signals.

Accumulating the daily residual

The companion summation index is a cumulative total of daily oscillator readings. It can be updated by adding the latest oscillator value to the previous index value.

An alternative closed-form construction subtracts ten times the 10 percent trend plus twenty times the 5 percent trend from the oscillator and then adds 1000, placing the neutral reading at +1000. The construction assigns -1200 as a conventional end-of-decline reference on the summation index and treats a later climb through +2000 as a confirmation threshold for an unusually strong rebound.

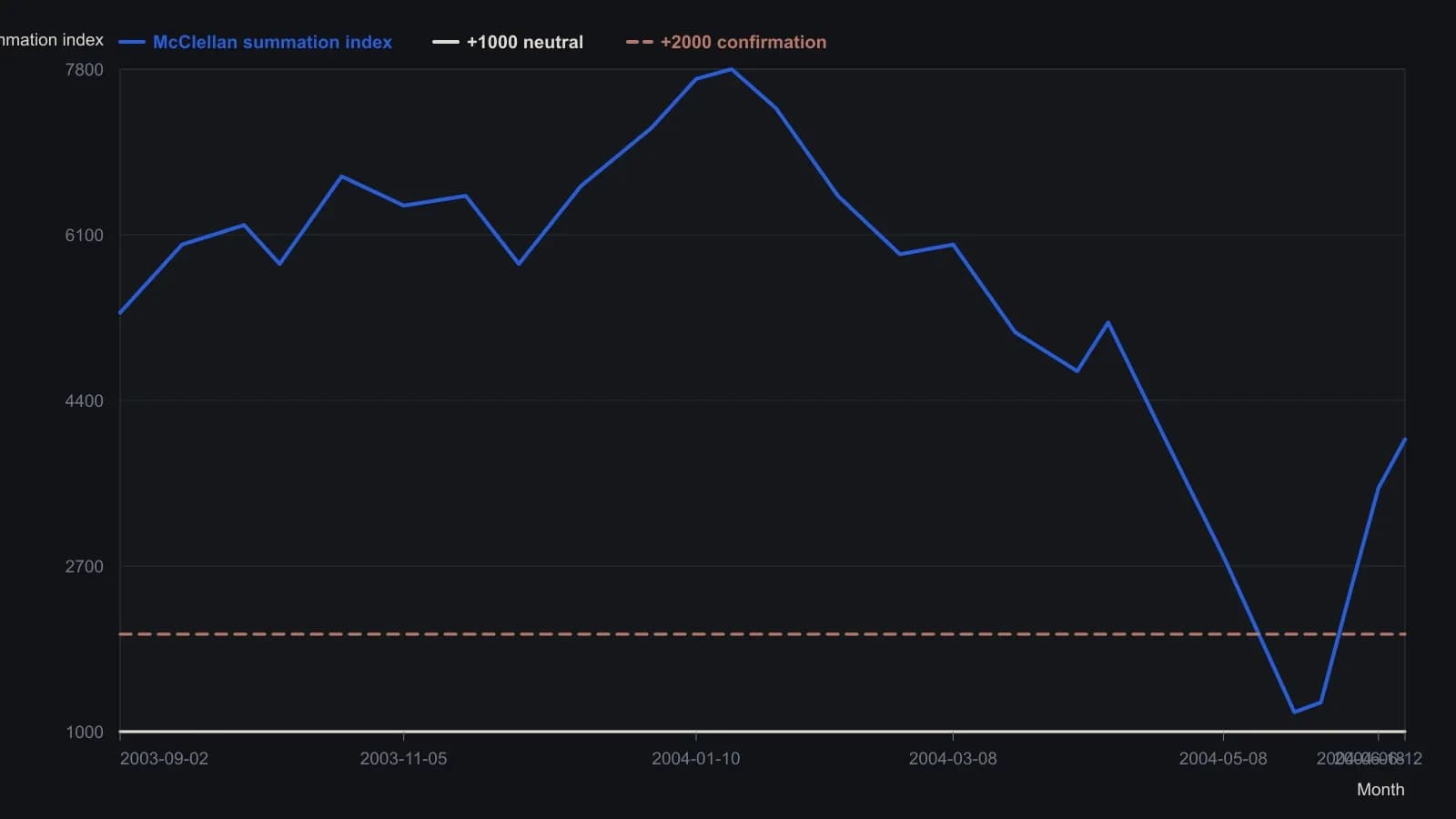

McClellan summation index crossing the +2000 tripwire

Traders should watch the May–June 2004 turn: the running total of daily McClellan oscillator readings fell from a January peak near 7800 to a May trough just above 1000, then climbed back through the +2000 confirmation level the article treats as a possible new-bull signal. The path was read off the published Figure 2 curve under the S&P 500, not from a table, so the levels are approximate.
Traders should watch the May–June 2004 turn: the running total of daily McClellan oscillator readings fell from a January peak near 7800 to a May trough just above 1000, then climbed back through the +2000 confirmation level the article treats as a possible new-bull signal. The path was read off the published Figure 2 curve under the S&P 500, not from a table, so the levels are approximate.NYSE breadth (McClellan summation) · Daily · 2003-09-01T00:00:00.000Z to 2004-06-30T00:00:00.000Z

Oscillator is the 10 percent EMA of NYSE net advances minus the 5 percent EMA. The source gives two summation recipes; the plotted scale matches a cumulative daily residual. Neutrality is stated at +1000; −1200 is cited as a typical bear-market ending reading but sits off the bottom of this window. Expect roughly 100–200 index points of raster uncertainty.

The same counts on other listings

The same construction can be applied to any market's advance-decline counts even though the usual illustration uses a broad exchange listing.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
