2013issue C0163-71

A directional oscillator and its stochastic as a stacked timing filter

A directional-movement oscillator from Average Directional Index plus and minus indicators can mark regime around a zero line, while a Stochastic oscillator of that series can mark timing at extremes. Archive ports treat the pairing as a selection aid with generic exits. Editorial reading: Price-indicator divergence still needs its own check.

  • A directional-movement oscillator from plus and minus directional indicators can be plotted as a histogram around zero so regime is the sign of that series.
  • A Stochastic oscillator of the same series, rescaled to a 0 to 100 range, is used for oversold and overbought timing while the oscillator remains the regime reading.
  • Charting platforms often show the pairing as bar color, extreme-zone markers, and reversal-cross alerts rather than as a complete trading system.
  • Archive evaluation adds generic exits, and editorial practice still treats Price-indicator divergence as a separate confirmation check.
Entries in this reading3 entries
Current trackAverage Directional Index71 readingsPrice-indicator divergence142 readingsStochastic oscillator170 readings

A histogram for regime and a stochastic for timing

A directional-movement oscillator can be formed as the difference between plus and minus directional indicators over a fixed lookback, then plotted as a histogram around a zero line. Those plus and minus directional indicators are the Average Directional Index inputs used to form the oscillator.

A Stochastic oscillator of that directional-movement oscillator can be computed from a short highest-lowest window of the oscillator and rescaled to a 0 to 100 range.

Editorial reading: the histogram keeps regime on the sign of the oscillator, and the Stochastic oscillator keeps timing on where that oscillator sits inside its recent high-low window. The two jobs stay separate.

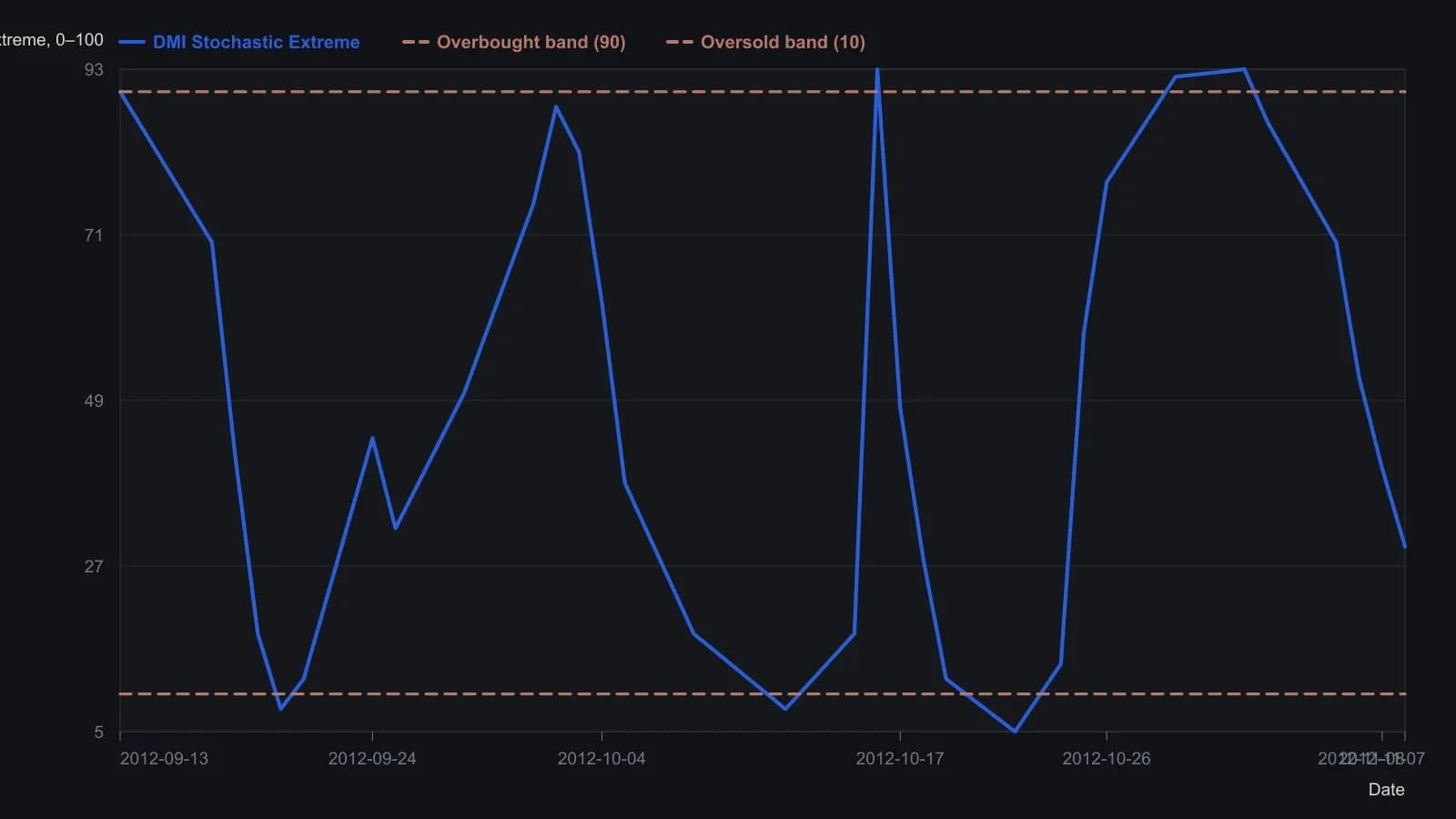

IBM daily DMI stochastic versus the 90 and 10 extremes

The lower pane is the timing filter: the DMI stochastic tags the 90 and 10 bands while IBM’s painted bars follow the sign of the companion DMI oscillator. After the mid-October break the oscillator stays negative (last printed −16.37) even as this stochastic climbs back to 90, so timing and regime are not the same reading. Series traced from the TradeStation daily IBM window; 29.58 is the value printed on that scale.
The lower pane is the timing filter: the DMI stochastic tags the 90 and 10 bands while IBM’s painted bars follow the sign of the companion DMI oscillator. After the mid-October break the oscillator stays negative (last printed −16.37) even as this stochastic climbs back to 90, so timing and regime are not the same reading. Series traced from the TradeStation daily IBM window; 29.58 is the value printed on that scale.IBM · Daily · 2012-09-13T00:00:00.000Z to 2012-11-08T00:00:00.000Z

TradeStation study DMI Stochastic Extreme uses DMI length 10 and 3-bar stochastic windows with bands at 90 and 10. Interior readings are digitized from the raster and rounded to whole numbers; only the last print is taken from the scale label.

When long-side and short-side timing are described

Long-side timing is described when the directional oscillator is above zero and the Stochastic oscillator of that oscillator is oversold. Short-side timing is described when the oscillator is below zero and the Stochastic oscillator is overbought.

A pullback-style long test rule waits for the directional oscillator above zero and a Stochastic oscillator cross up through the lower extreme. The corresponding short test rule waits for the oscillator below zero and a Stochastic oscillator cross down through the upper extreme.

Exits used when the stack is only a selection aid

One implementation states that the Stochastic oscillator of directional movement is a selection aid, not a full entry-exit system, and therefore adds generic exits such as a fixed holding period or a mix of profitable and losing closes for evaluation.

Reconstruction defaults across ports

Default reconstruction parameters appearing across ports include a directional lookback of 10, a three-period high-low window, a three-period summation, and extreme bands near 10 and 90.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
