How an Average Directional Index filter and a breakout entry form one procedure

A historical workflow treats an Average Directional Index strength filter, a buy-stop breakout and optional volume confirmation as one procedure, with trade management written separately from the entry.

  • A 14-period Average Directional Index crossing above 40 is the momentum-strength condition that precedes the breakout entry.
  • Entry is a buy-stop placed a defined offset above a recent close or high, so the trade is taken only if price continues through the breakout level.
  • An optional volume filter, plus scanner price-band and range gates, can still withhold the signal after the strength cross.
  • Trade management is specified apart from entry: a declining Average Directional Index below 20 is a reason to take profits early or tighten a trailing stop.
Entries in this reading3 entries
Breakout system48 readingsCurrent trackAverage Directional Index71 readingsMomentum strategy103 readings

A single procedure, not separate annotations

This archive article walks through a historical construction that joins an Average Directional Index strength filter to a Breakout system entry. The same workflow is a Momentum strategy: it waits for measured trend strength, then requires price to continue through a breakout level before a buy-stop can fill.

The parts are written as one procedure. A strength condition, a price trigger, an optional volume check and later trade management either produce a trade or they do not. Editorial reading: if those steps are treated as separate chart annotations, the abstention rule is easy to miss.

The Average Directional Index strength condition

The procedure treats a 14-period Average Directional Index crossing above 40 as the momentum-strength condition that precedes a breakout entry. The construction uses the main Average Directional Index line as the strength filter and does not add the directional-indicator lines as extra confirmation.

The educational purpose of that threshold is to withhold entries during sideways, low-energy price action and to wait until measured trend strength is high enough to justify a new momentum trade.

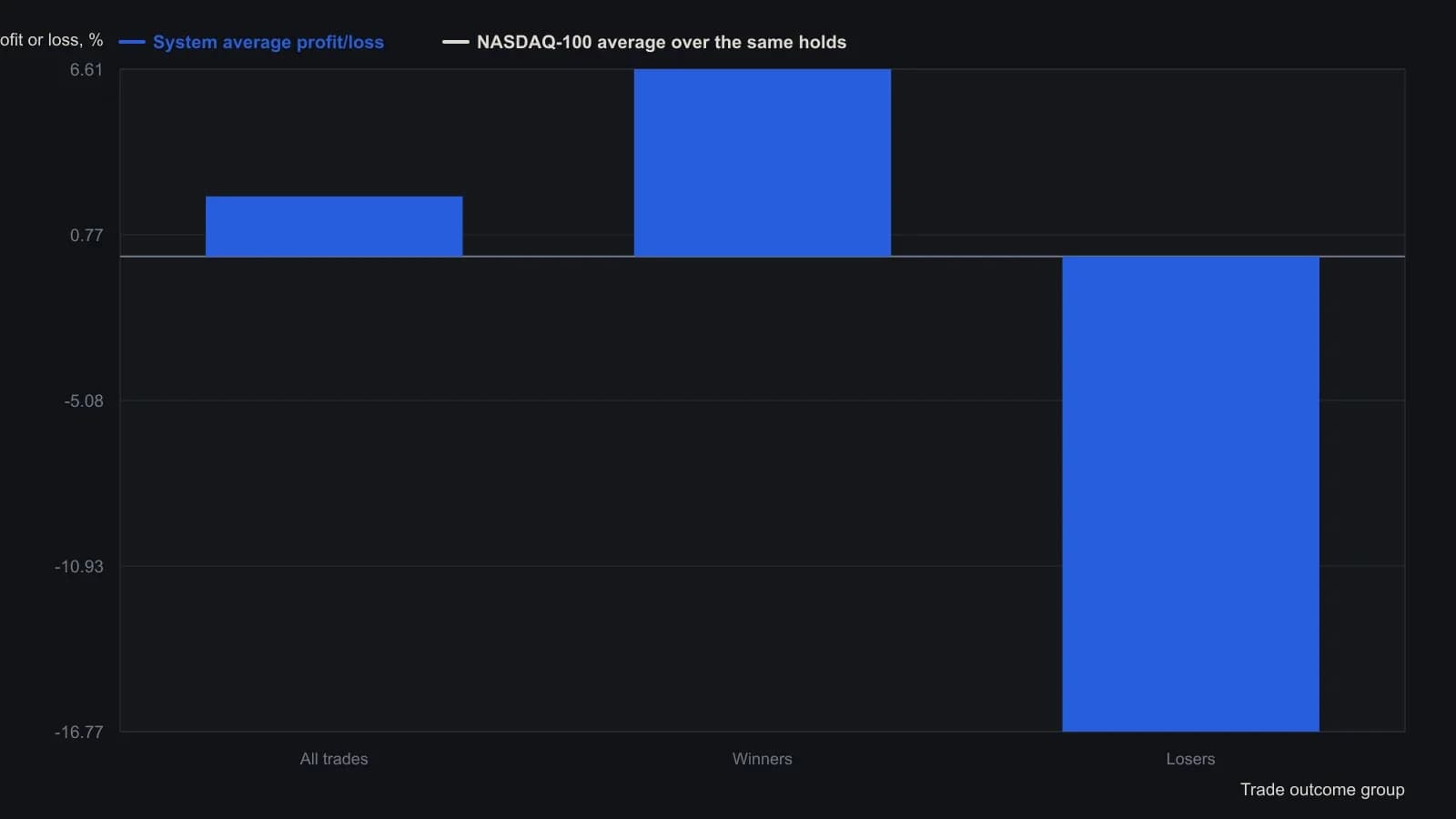

Daily NASDAQ-100 test with ADX at or above 40: average profit by outcome

Requiring Average Directional Index at or above 40 at the buy cut the daily NASDAQ-100 sample to 151 trades and produced a 2.12 percent average gain: 6.61 percent on the 122 winners and a 16.77 percent average loss on the 29 losers. Over the same holding periods the NASDAQ-100 itself averaged 0.76 percent. Figures are read from the AIQ results table for the filtered run from 31 December 1999 through 8 January 2016.
Requiring Average Directional Index at or above 40 at the buy cut the daily NASDAQ-100 sample to 151 trades and produced a 2.12 percent average gain: 6.61 percent on the 122 winners and a 16.77 percent average loss on the 29 losers. Over the same holding periods the NASDAQ-100 itself averaged 0.76 percent. Figures are read from the AIQ results table for the filtered run from 31 December 1999 through 8 January 2016.NASDAQ-100 constituents · Daily · 1999-12-31T00:00:00.000Z to 2016-01-08T00:00:00.000Z

This is a daily-bar basing-around-the-200-day-average system on the nas100 list, not the 15-minute breakout. Exits were an 80 percent capital-protect stop and an 80 percent profit-protect trail after a 5 percent gain. The source notes that 151 trades over this span is thin unless the universe is expanded.

Buy-stop entry and optional volume confirmation

Entry is specified as a buy-stop placed a defined offset above a recent close or high, so the trade is taken only if price continues through the breakout level. Strength alone does not complete the signal.

An optional volume filter can require current volume to meet or exceed a 20-period volume average multiplied by 1.1 before the breakout signal is valid. When that filter is used, a strength cross without the volume test still leaves the procedure in an abstain state.

Scanner gates and the 15-minute bar

A scanner implementation adds price-band and range gates so candidates must trade between 20 and 70 and show at least a 5-point 15-day range before the Average Directional Index cross above 40 is considered. Those gates sit in front of the strength condition rather than replacing it.

The system is constructed for 15-minute bars in at least one implementation, and that implementation states daily-bar versions are not a substitute.

Trade management after the entry

Trade management is specified separately from the entry. A declining Average Directional Index below 20 is used as a reason to take profits early or tighten a trailing stop to one unit under the day’s low.

Editorial reading: keeping management on its own line makes the holding-period rules testable beside the entry rules, instead of leaving the exit as an unstated chart habit.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
