Combining moving averages, stochastics, and ADX in a daily scan

A planned after-close daily evaluation can sort a multi-thousand-symbol list in about five to ten minutes by classifying trend with a moving-average slope, timing with stochastics, and checking the onset of a directional-line turn.

  • A planned after-close daily evaluation of a multi-thousand-symbol list can be finished in about five to ten minutes and used as the next day's decision base.
  • A 20-period average that rises for at least two consecutive closes is treated as an uptrend; failure of that two-day rise is treated as a falling trend before timing is considered.
  • Stochastic oscillators of several lengths supply forward timing after the moving-average filter is set, while a turn in the plus or minus directional line is treated as more useful than a plus-minus crossover.
  • A daily signal is checked against the weekly chart and a five-minute chart so a weak higher-timeframe trend can block the trade.
Entries in this reading3 entries
Current trackAverage Directional Index71 readingsStochastic oscillator170 readingsMoving average449 readings

The after-close daily evaluation

A daily evaluation is a planned after-close sort of a large symbol list that reduces chart-by-chart review to a short candidate set for the next session. A planned after-close scan of a multi-thousand-symbol database can be finished in about five to ten minutes and used as the next day's decision base.

The evaluation first classifies the broader market and each name as trending up or down, then chooses indicators and a timeframe that match that trend.

Classify the trend first

A moving average is a smoothed average of recent closes used here as a two-day slope filter that classifies a name as rising or falling before any entry or exit is considered.

A 20-period average that rises for at least two consecutive closes is treated as an uptrend. Failure of that two-day rise is treated as a falling trend.

Averages shorter than 20 periods are taken as simple means and longer ones as exponential means so nearer closes receive more weight. In high volatility the 20-period simple average can be shortened to 16 so the trend filter reacts faster.

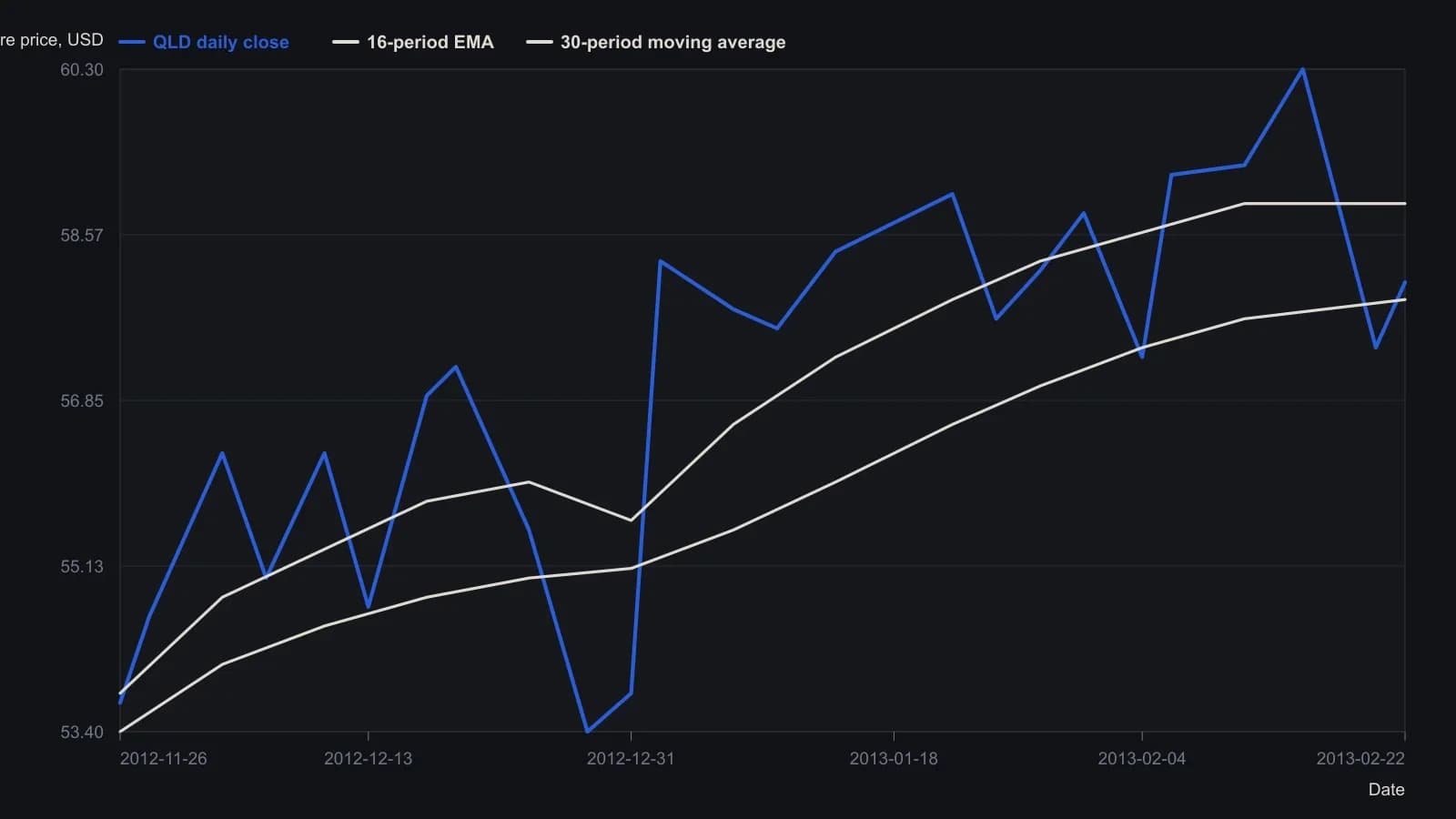

QLD daily close with 16- and 30-period moving averages

A trader running the after-close scan would treat this stretch as an established uptrend: after the late-December washout near 53.50, ProShares Ultra QQQ gaps into the mid-58s and then holds above a rising 16-period exponential average and a 30-period average into February. Readings were taken from the published daily TC2000 pane; 58.08 is the printed last close on 22 February 2013.
A trader running the after-close scan would treat this stretch as an established uptrend: after the late-December washout near 53.50, ProShares Ultra QQQ gaps into the mid-58s and then holds above a rising 16-period exponential average and a 30-period average into February. Readings were taken from the published daily TC2000 pane; 58.08 is the printed last close on 22 February 2013.ProShares Ultra QQQ (QLD) · Daily · 2012-11-26T00:00:00.000Z to 2013-02-22T00:00:00.000Z

The source pane also plotted parabolic SAR at 0.02/0.20 and a 10-20-7 MACD histogram on lower panes; those series were not digitized. Turning-point dates between the weekly grid labels are approximate to a session or two, and prices other than the printed last close are readable to about 0.2 dollars.

Add a stochastic timing layer

A stochastic oscillator is a bounded oscillator that locates price inside its recent high-low range so a scan can flag overbought, oversold, or crossover timing after the trend filter is set. Stochastic oscillators of several lengths supply the forward timing layer after moving averages have defined the trend.

Combining the slope of a short moving average on a MACD histogram with a stochastic condition produces a stronger sort or scan than either tool alone.

Read directional lines for the onset of a turn

The average directional index is a directional-strength overlay whose plus and minus lines mark the start of a trend shift earlier than a simple line cross. The onset of a turn in the plus or minus directional line is treated as more useful than a plus-minus crossover when ADX-style directional lines are added to the chart.

Check one timeframe above and one below

A multi-timeframe check means reading one chart above and one below the signal timeframe so a daily trigger is not taken against a weak weekly backdrop. A daily trading signal is checked against the weekly chart and a five-minute chart so a weak higher-timeframe trend can block the trade.

After a dominant price trend is in place, entries and exits are timed mainly with moving averages, stochastics of different lengths, and a smaller set of supporting indicators.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
