A holding-matched market lens from averages and directional-line crosses

Before capital is committed, a single familiar chart can sort a name into watch, act now, or ignore. Keep a holding-matched-window, a short simple moving-average, longer exponential averages, and directional-line crosses you can justify, then inspect entry, exit, and abstention as one checklist-process.

  • A market-lens is a single familiar chart that sorts a name into watch, act now, or ignore before capital is considered.
  • A six-month daily candlestick window with volume can serve as a holding-matched-window when the intended stay is measured in months.
  • Keep a 10-day simple moving-average, 20-, 30-, 50-, and 200-day exponential averages, and directional-line crosses only when each overlay fits the holding period and has a stated purpose.
  • Lock the same overlays into a checklist-process so entry, exit, and abstention are inspected together before a position is considered.
Entries in this reading3 entries
Pre-trade checklist43 readingsCurrent trackAverage Directional Index71 readingsMoving average449 readings

A market-lens before capital is considered

Before capital is committed, a single familiar chart can be used to sort a name into watch, act now, or ignore.

Editorial: TradersWeek names that personally justified chart a market-lens. It is used to sort a name into watch, act now, or ignore before capital is considered.

Packing many conflicting overlays onto one display can stall the first action decision instead of clarifying it.

Match the visible window to the holding period

A six-month daily candlestick window with volume can be chosen so the visible range matches a holding horizon measured in months.

Editorial: that visible span is a holding-matched-window, chosen to resemble the typical time a position is expected to remain open.

Keep only the moving averages you can justify

A 10-day simple moving average can mark location versus the prior two weeks, while 20-, 30-, 50-, and 200-day exponential averages can be added so recent observations weigh more than older ones.

Editorial: a moving-average is a lookback mean of price used as a location benchmark. A short simple average can sit beside longer exponential averages that emphasize recent observations.

One documented long-side filter is to abstain when current price sits below the 50-day or the 200-day exponential average.

Each overlay should remain only if it fits the intended holding period and the trader can state what market condition it is meant to show.

Read directional-line crosses, not the ADX value

A directional-movement overlay can be kept mainly for crossings of the two directional lines rather than for the ADX value itself.

Editorial: the average-directional-index is treated as a directional-movement package whose plus and minus lines can be watched for a directional-line-cross. The ADX reading itself is optional. A directional-line-cross is a change-of-character cue when the two directional-movement lines exchange rank.

Inspect entry, exit, and abstention together

The same overlays can be locked into a fixed pre-risk routine so entry, exit, and abstention are inspected together before a position is considered.

Editorial: that routine is a checklist-process. Entry, exit, and abstention are reviewed as one procedure before a position is considered.

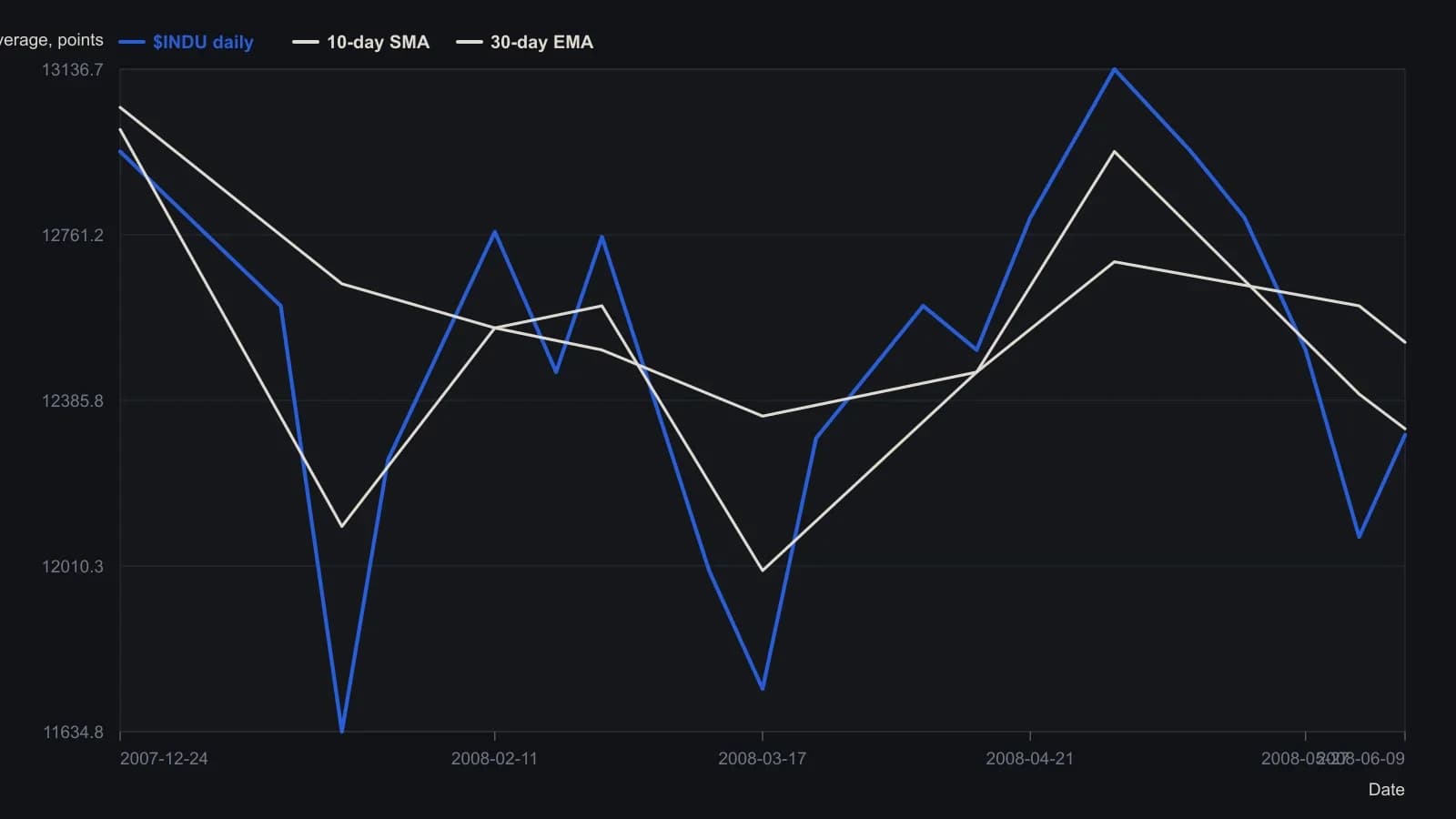

Dow Jones six-month daily with a 10-day SMA and a 30-day EMA

On this six-month Dow Jones daily the tape rallies from the winter lows, fails under the May high, and closes back beneath both the 10-day simple average and the 30-day exponential average, so the pre-trade lens is watch-or-abstain rather than size a long. Exact swing prints and the last legend readings were taken from the source chart; the path between those anchors was read from the same daily candlesticks.
On this six-month Dow Jones daily the tape rallies from the winter lows, fails under the May high, and closes back beneath both the 10-day simple average and the 30-day exponential average, so the pre-trade lens is watch-or-abstain rather than size a long. Exact swing prints and the last legend readings were taken from the source chart; the path between those anchors was read from the same daily candlesticks.$INDU · Daily · 2007-12-24T00:00:00.000Z to 2008-06-09T00:00:00.000Z

Holding-matched six-month daily window. Last legend readings: $INDU 12307.35, 10-day SMA 12321.42, 30-day EMA 12517.50. Unlabeled points are approximate reads against the labeled swings and the printed date axis, rounded to 50 index points.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
