Constructing a late-entry stack from a signed DMI oscillator

The Average Directional Index reports strength of movement but not direction. A DMI oscillator formed from the plus and minus directional indicators becomes the Trend filter, and a DMI stochastic of that series times pullbacks for a Momentum strategy that enters only with the oscillator's sign.

  • The Average Directional Index reports strength of movement, while the plus and minus directional indicators supply signed direction over a lookback.
  • Subtracting the minus directional indicator from the plus directional indicator produces a zero-centered DMI oscillator that can color price bars and serve as the Trend filter.
  • The DMI stochastic applies a 10-3-3 formula to oscillator values, not closing prices, with outer bands at 10 and 90, so Momentum strategy entries stay on the oscillator's side of zero.
  • Reversal alerts and opposite stochastic extremes after a plus-20 or minus-20 reading are reserved for warnings, stop adjustment, and short-lived pauses rather than standalone entries.
Entries in this reading3 entries
Current trackAverage Directional Index71 readingsMomentum strategy103 readingsTrend filter137 readings

Strength without direction

The Average Directional Index reports strength of movement but not direction. The plus and minus directional indicators supply the signed direction over a lookback.

Building the DMI oscillator

Subtracting the minus directional indicator from the plus directional indicator produces a DMI oscillator, plotted through zero. The zero line is the plus and minus directional-indicator intersection. Converting the plot to a histogram does not change those values or that cross.

The construction uses a 10-period lookback for both directional indicators instead of the common 14-period default and overlays a one-period moving average of the oscillator. Price bars can be colored by the sign of the oscillator so the Trend filter state is visible on the price pane.

A stochastic of the oscillator

The DMI stochastic applies a 10-3-3 stochastic formula to the oscillator series rather than bar closes and places outer bands at 10 and 90 instead of 20 and 80.

A directional Momentum strategy

The Momentum strategy procedure takes entries only in the oscillator's direction: oversold stochastic pullbacks when the oscillator is above zero, and overbought pullbacks when it is below zero.

During rangebound action the oscillator often stays inside a plus-10 to minus-10 band, and the area around zero can act as oscillator support or resistance.

Reversal alerts and a countertrend pause

Reversal alerts mark crosses of the DMI stochastic through a three-period moving average of itself. They appear too often to serve as standalone entries and are reserved for warnings and stop adjustment.

When the oscillator reaches plus 20 or minus 20, the next opposite stochastic extreme is treated as a possible short-lived countertrend pause rather than a fresh trend-following entry.

Bar lengths and scope

The two-indicator template is described as more usable on 60-minute, end-of-day, and weekly bars than as a primary intraday tool. It is not presented as a complete trading system.

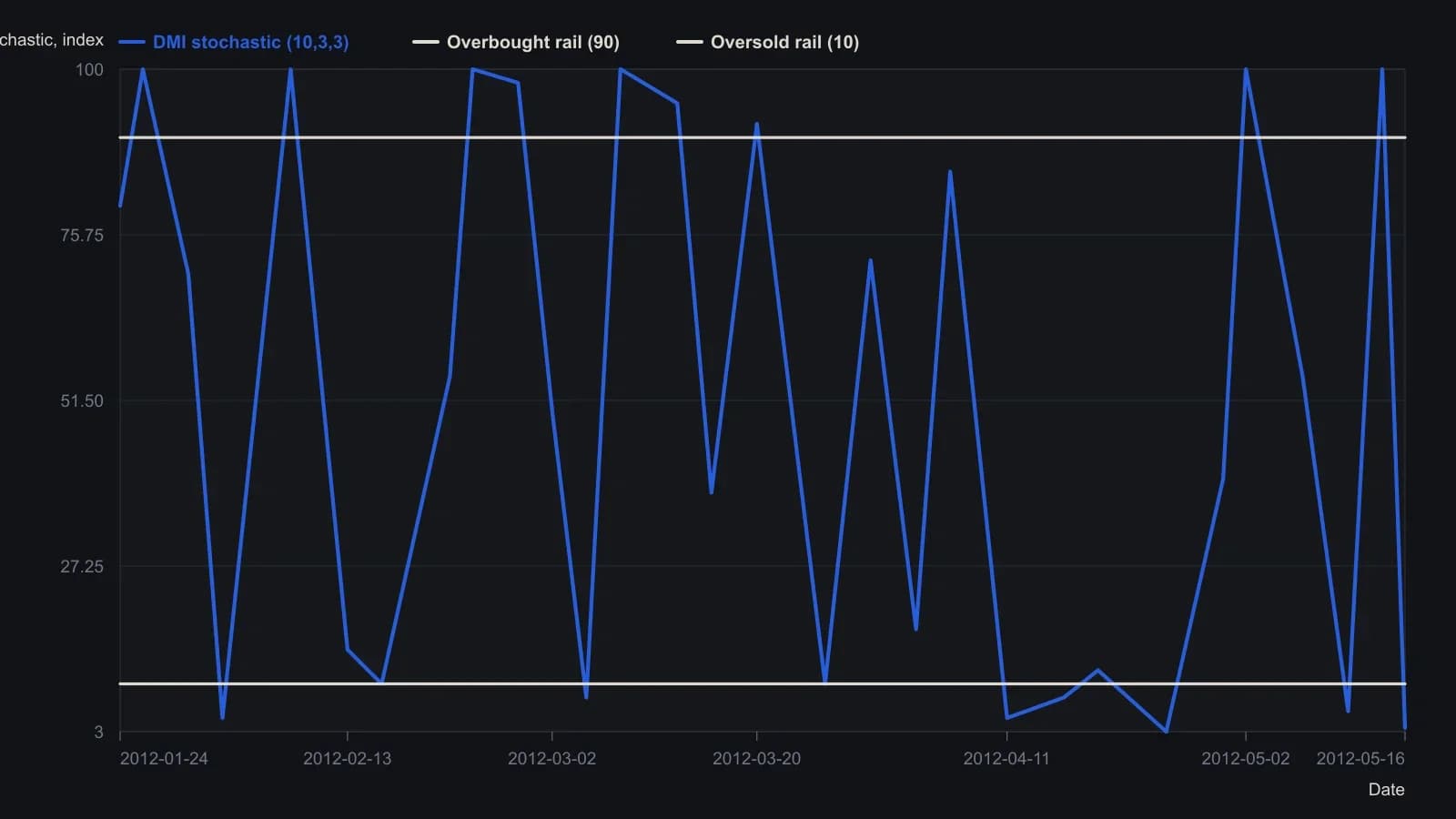

BBBY daily DMI stochastic, January–May 2012

Bed Bath & Beyond’s daily DMI stochastic, read from the published eSignal pane for late January through 16 May 2012, repeatedly tags the 10 and 90 rails while the signed DMI oscillator stays mostly above zero after the February washout. Oversold turns near 10 are the late-entry timers in that uptrend; the mid-March V and the April floor near zero show the same oscillator-based stochastic flipping between extremes, which is what the reversal-alert diamonds mark on price.
Bed Bath & Beyond’s daily DMI stochastic, read from the published eSignal pane for late January through 16 May 2012, repeatedly tags the 10 and 90 rails while the signed DMI oscillator stays mostly above zero after the February washout. Oversold turns near 10 are the late-entry timers in that uptrend; the mid-March V and the April floor near zero show the same oscillator-based stochastic flipping between extremes, which is what the reversal-alert diamonds mark on price.BBBY · daily · 2012-01-24T00:00:00.000Z to 2012-05-16T00:00:00.000Z

Star computes a 10-period +DI minus 10-period −DI, then a 10,3,3 stochastic of that oscillator with extremes at 10 and 90 rather than the usual 20 and 80. Point readings are visual samples of the plotted line against the 0/25/50/75/100 grid, so they are approximate; the last print on the pane is 3.57.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
