Confirming n-bar breakouts with ADX and DX filters

A long-side n-bar high is taken only when a coincident ADX or DX high confirms it, and the trade is closed on a seven-bar low. After that three-part rule is fixed, market-specific lengths are trimmed into one shared set and judged against the same breakout run without the filter.

  • A long-side n-bar high is a mechanical clearance of recent resistance, and failed breakouts are the usual case a filter is meant to reduce.
  • The long entry is a dual-breakout: an x-bar price high is valid only when a y-bar ADX or DX is also making a z-bar high on the same decision bar, then the trade is closed on a seven-bar-low exit.
  • ADX is a smoothed, lagging transform of DX that is easier to inspect visually; DX turns earlier but fluctuates enough that individual turns are hard to judge.
  • Universalization ranks market-specific optimized lengths, drops the extremes, and averages the middle values; the shared-parameter result, not each market's optimum, is the basis for comparison with unfiltered three-bar and five-bar breakouts.
Entries in this reading3 entries
Breakout system48 readingsCurrent trackAverage Directional Index71 readingsTrend filter137 readings

An n-bar high as a mechanical breakout

A long-side breakout can be recognized mechanically as an n-bar high: the latest close or high exceeds the highest high of the prior n bars and is treated as a clearance of recent resistance. Failed breakouts are treated as the usual case a filter is meant to reduce.

Entry, confirmation, and exit as one procedure

The tested long entry required two coincident breakouts: an x-bar price high and a y-bar average directional index or directional index making a z-bar high on the same decision bar. That dual-breakout entry is the trend filter. The indicator-side high must accompany the price high before a long is taken, so range conditions can force abstention.

Trades were long only and were closed on a seven-bar-low exit. The close is a new seven-bar low, used so an opposite-side entry would not interrupt the exit rule.

How ADX and DX differ

The average directional index is a smoothed transform of the directional index. The smoother series is easier to inspect visually but lags. The directional index turns earlier, yet it fluctuates enough that individual turns are hard to judge. A trend filter can use either series.

ADX can be read by its level or by its direction of change. A falling line is associated with range conditions. A rising line is associated with movement beyond a range.

One shared set, not six optima

The same rule set was applied to six futures markets: gold, soybeans, Treasury bonds, crude oil, the Deutschemark, and the S&P 500. Each series covered one thousand bars from late 1987 to 1991, omitting commissions and interest.

Universalization ranks market-specific optimized lengths, drops the extremes, and averages the remaining middle values to produce one shared parameter set. The shared ADX combination was a 5-bar price high with a 17-bar ADX making a 6-bar high. The shared DX combination was a 3-bar price high with a 17-bar DX making a 7-bar high.

Short price-breakout windows were justified as keeping the entry responsive after the filter reduced trade frequency. Longer indicator-breakout windows were justified as ignoring minor DX fluctuations and remaining usable on a flattened ADX after a range.

Judge the shared set against the unfiltered breakout

The filtered procedures were compared with unfiltered three-bar and five-bar breakouts. The shared-parameter result, not each market's optimum, was treated as the proper basis for judging the combined entry-and-exit rule.

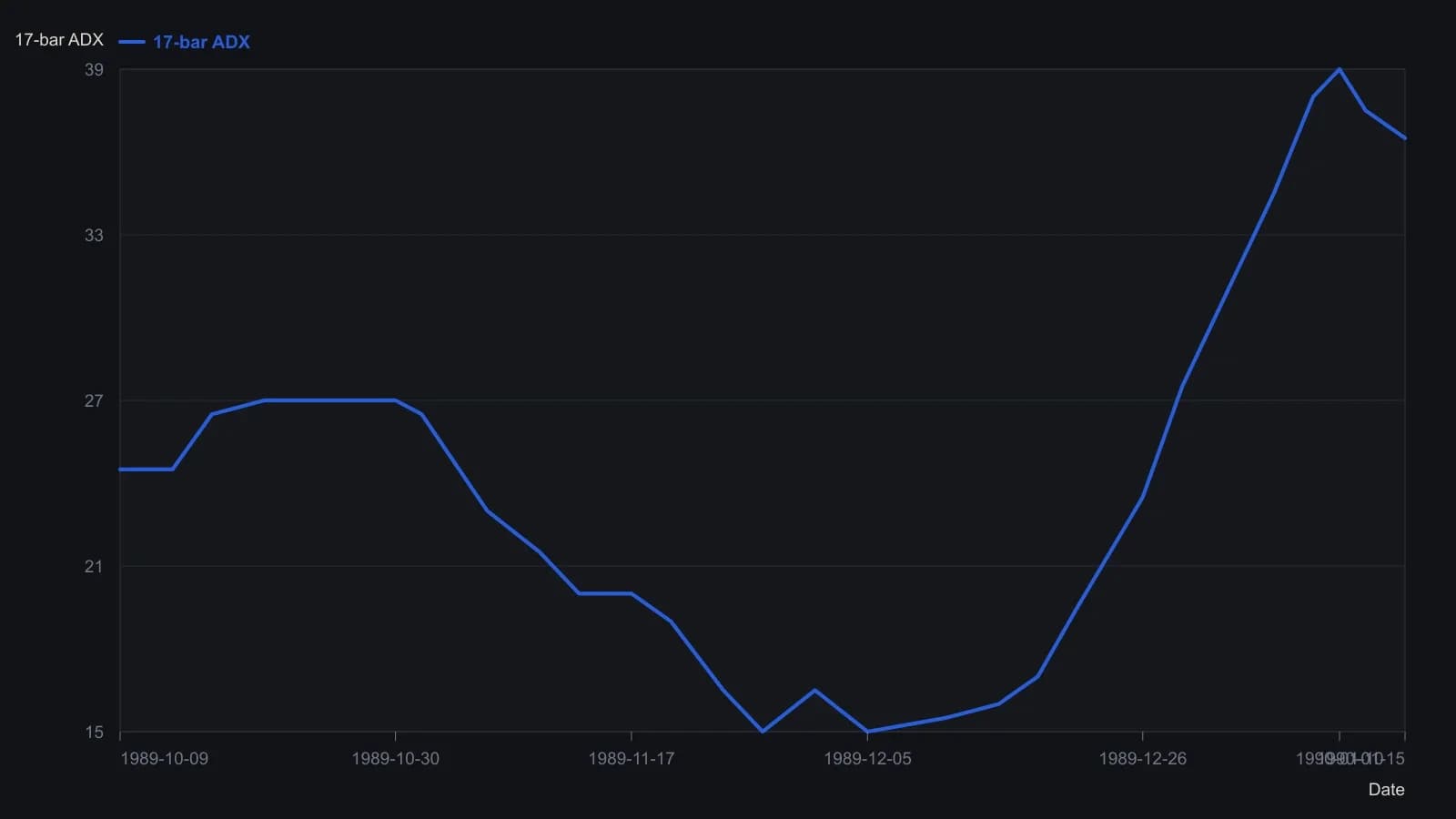

17-bar ADX on crude oil, October 1989–January 1990

The 17-bar ADX holds in the mid-20s through late October, slides to the mid-teens in the November range, then turns up around 11 December — the window the article marks as a five-bar price high confirmed by a six-bar ADX high. Numbers were read from the printed ADX pane, whose scale is labeled 15 to 40.
The 17-bar ADX holds in the mid-20s through late October, slides to the mid-teens in the November range, then turns up around 11 December — the window the article marks as a five-bar price high confirmed by a six-bar ADX high. Numbers were read from the printed ADX pane, whose scale is labeled 15 to 40.Crude oil · daily · 1989-10-09T00:00:00.000Z to 1990-01-15T00:00:00.000Z

Daily 17-unit ADX digitized from the published upper pane; companion crude-oil bars use another scale and are not plotted. Approximate to about half an ADX point. Shared rule in the source: 5-bar price high, 6-bar high of this 17-bar ADX, exit on a 7-bar low.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
