2019issue C078-15

Exponential deviation bands with a moving average, RSI and ADX

A volatility envelope is assembled from a 20-period moving-average middle band and outer lines two exponential deviations away. Relative strength index and average directional index are confirmation overlays, so the combination is not a single-indicator reading.

  • Exponential deviation bands are a three-line envelope whose middle band is a 20-period simple or exponential moving average and whose outer lines sit two exponential deviations above and below that midline.
  • The middle band is the directional component. Exponential deviation sets band width from period deviations and a multiplier of 0.10 when the lookback is 20.
  • Band breakouts and changes in band direction are the chart events used to identify price trends and reversals under the standard settings.
  • A combination requires the envelope, a moving-average state, and at least one confirmation series to agree. The relative strength index is an overlay, and a flat moving average with a 14-day average directional index remaining below 20 marks a trading range.
Entries in this reading3 entries
Current trackAverage Directional Index71 readingsRelative Strength Index186 readingsMoving average449 readings

A three-line envelope

Exponential deviation bands are a three-line envelope whose midline is a moving average and whose outer lines sit a fixed multiple of an exponentially weighted mean deviation above and below that midline.

In the archive workflow the middle band is a 20-period simple or exponential moving average. The outer lines are placed two exponential deviations above and below that middle band.

How the middle band and band width are built

The moving-average middle band is presented as the directional component. Exponential deviation is presented as the component that sets band width.

Initial exponential deviation is the 20-period mean of absolute differences between each close and the chosen 20-period moving average. Each of those absolute differences is a period deviation. Later values update as period deviation times the multiplier plus prior exponential deviation times one minus the multiplier.

The smoothing multiplier equals 2 divided by the number of lookback periods plus one, which is 0.10 when the lookback is 20.

How far back the calculation begins

Exponential deviation and exponential moving-average values depend on how far back the calculation begins. A 20-period simple-average series is described as becoming more accurate after 20 days, while a 20-period exponential-average series needs an additional 20 days because the average itself is exponential.

The first completed spreadsheet row

A worked 20-day spreadsheet example reports, on 30 May 2018, a close of 12625.87, a 20-day simple average of 12643.49, an exponential deviation of 111.15, and matching upper and lower bands of 12865.80 and 12421.19 for both the simple-average and exponential-average columns on that first completed row.

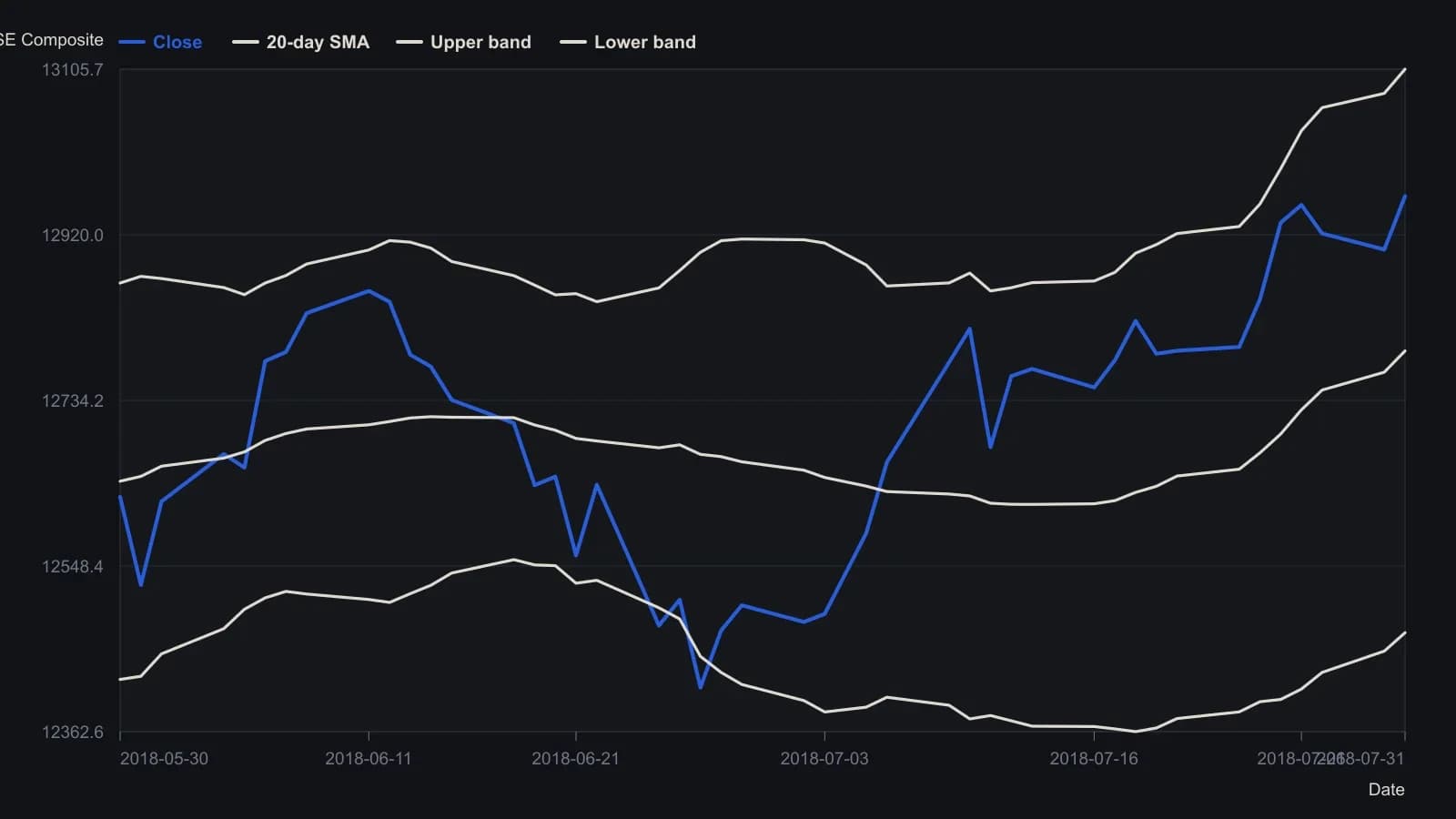

NYSE Composite with 20-day exponential deviation bands

Daily NYSE Composite closes sit inside a 20-day simple-moving-average envelope whose outer lines are two exponential deviations away. Band width tightens through June, then the upper line lifts as the July advance stretches deviation. Every point is copied from the article’s worked spreadsheet, not traced off a plotted chart.
Daily NYSE Composite closes sit inside a 20-day simple-moving-average envelope whose outer lines are two exponential deviations away. Band width tightens through June, then the upper line lifts as the July advance stretches deviation. Every point is copied from the article’s worked spreadsheet, not traced off a plotted chart.NYSE Composite · Daily · 2018-05-30T00:00:00.000Z to 2018-07-31T00:00:00.000Z

The article computes both SMA-based and EMA-based bands; this chart uses the 20-day SMA columns. The first exponential deviation (30 May 2018) is the mean of the first 20 absolute deviations; later days use the exponential smoother with multiplier 2/(20+1). Exponential values depend on how far back the calculation is seeded.

Chart events under the standard settings

Band breakouts and changes in band direction are presented as the chart events used to identify price trends and reversals on a variety of securities with the standard settings.

Identifying a trading range

A trading range is identified by pairing a flat moving average with a 14-day average directional index remaining below 20, as illustrated on the FTSE 100 from October 2001 until a May 2002 breakout.

Relative strength index as confirmation

The relative strength index is specified as a confirmation overlay used with the envelope and other basic trend analysis rather than as a standalone replacement for the bands.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
