Average Directional Index cluster filters for trend-start signals

A conventional directional-movement display uses one lookback for strength and direction. A cluster version plots three short lookbacks for the Average Directional Index, the plus directional indicator, and the minus directional indicator so congestion at an extreme, not a single reading, can precede a rule-based long, short, or stay-out decision.

  • Read each of the Average Directional Index, the plus directional indicator, and the minus directional indicator as a same-component trio of short lookbacks so cluster congestion, not a single-period reading, marks candidate trend starts and possible tops or bottoms.
  • Treat a complete high-side cluster as a candidate trend-end condition and a complete low-side cluster as a candidate trend-start condition, and do not treat a peak reading as interchangeable with a full cluster.
  • The Average Directional Index is a direction-neutral strength reading, so the plus and minus directional indicators must agree on initiation or exhaustion before a rule-based entry fires.
  • Encode a named cluster or crossing as a condition that stays off until the pattern is true, then turns on, so the same rule can be dropped into an exploration, a system test, or a chart strategy.
Entries in this reading3 entries
Current trackAverage Directional Index71 readingsTrend following89 readingsRule-based entry174 readings

Three lines where a conventional display uses one

A conventional directional-movement display uses one lookback for the Average Directional Index, the plus directional indicator, and the minus directional indicator. The cluster version splits each component into its own three-line study so the same strength and direction information can be read more granularly.

The featured procedure plots three Average Directional Index lines plus three plus directional indicator lines and three minus directional indicator lines. Cluster congestion across that same-component trio of short lookbacks, not a single-period reading, is used to mark trend starts and possible tops or bottoms. One implementation uses default lookbacks of three, four, and five bars for each three-line study.

High-side and low-side clusters are not peak readings

One implementation treats a complete high-side cluster as all three lines bunched above about 70 to 90 and a complete low-side cluster as all three bunched below about 30 to 20. Those extremes are used as candidate trend-end and trend-start conditions.

A peak reading is not treated as interchangeable with a full cluster. In the historical workflow, a tight low-side bunch can sit ahead of a trend start, while a later high-side peak without that same tight cluster is read as a different state.

Strength is not a substitute for direction

The Average Directional Index line is a direction-neutral strength reading. The plus directional indicator and the minus directional indicator carry both strength and direction and therefore must be read together rather than in isolation.

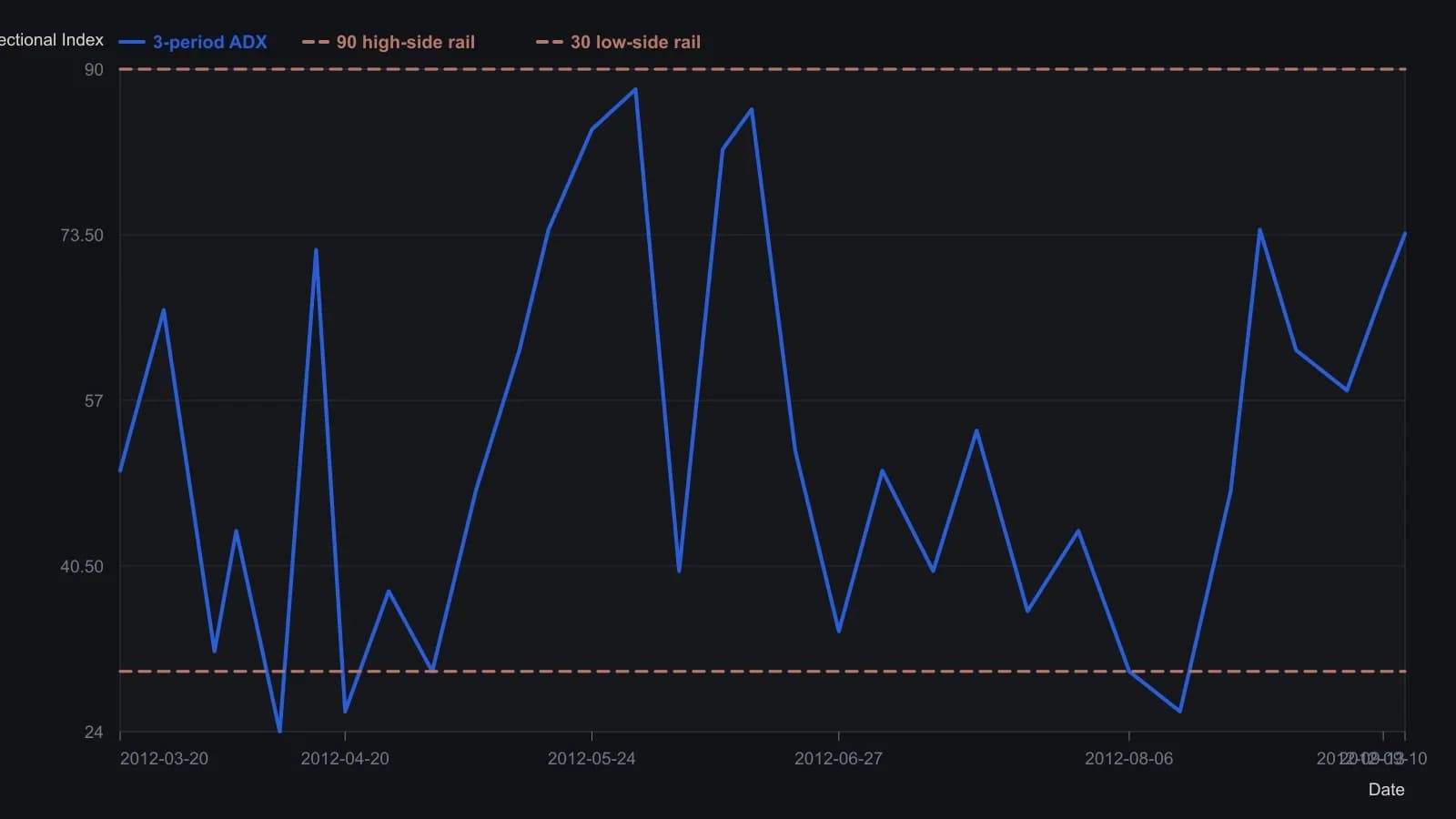

Daily Dow 3-period ADX against the 30 and 90 cluster rails

On the daily Dow, the fastest ADX lookback presses the 90 rail through the May–June selloff, then sits on the 30 rail in mid-August before turning up with the September advance. Treat those bunches at the rails as the filter, not a single ADX print. Levels come from the TradeStation TAC_3x_ADX pane on $INDU; the last 73.61 point is the platform’s printed ADX(3), and earlier points are read off the plotted curve.
On the daily Dow, the fastest ADX lookback presses the 90 rail through the May–June selloff, then sits on the 30 rail in mid-August before turning up with the September advance. Treat those bunches at the rails as the filter, not a single ADX print. Levels come from the TradeStation TAC_3x_ADX pane on $INDU; the last 73.61 point is the platform’s printed ADX(3), and earlier points are read off the plotted curve.Dow Jones Industrial Average ($INDU) · Daily · 2012-03-20T00:00:00.000Z to 2012-09-13T00:00:00.000Z

The source pane plots ADX lookbacks of 3, 4 and 5 with horizontal rails at 30 and 90. Only the leading 3-period line is digitized; the slower traces overlap too tightly on the raster to separate cleanly.

From a named cluster to a testable rule

The same idea can be encoded as conditions that stay at zero until a named cluster or crossing pattern is true, then flip to one so the pattern can be dropped into an exploration, a system test, or a chart strategy.

A further platform variant generates signals from convergences and crossings of the three-line Average Directional Index, plus directional indicator, and minus directional indicator clusters above 90 and below 10.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
