Constructing fast and slow stochastic oscillator lines

The stochastic oscillator reports where the latest close sits inside a user-chosen high-low window. Percent K is that unsmoothed ratio scaled by 100. Percent D smooths the same numerator and denominator over the last three readings. The slow stochastic relabels that companion line and applies one further three-session moving average.

  • The stochastic oscillator measures where the latest close sits inside a user-chosen high-low range rather than treating the close as a standalone level.
  • Percent K is the close minus the window low, divided by the window high minus the window low, then scaled by 100, using a lookback window chosen by the user.
  • Percent D sums the last three percent-K numerators, divides by the last three percent-K denominators, and scales that ratio by 100.
  • The slow stochastic relabels the already-smoothed companion as slow percent K and applies a three-session moving average to obtain the new percent D.
Entries in this reading1 entry
Current trackStochastic oscillator170 readings

The close inside a chosen range

The stochastic oscillator measures where the latest close sits inside a user-chosen high-low range rather than treating the close as a standalone level. It is a two-line construction that places the latest close inside a user-chosen high-low window and reports that position on a scaled scale.

Percent K and the lookback window

Percent K is the unsmoothed reading formed from the close, the window low, and the window high. It is the close minus the window low, divided by the window high minus the window low, then scaled by 100.

The lookback window is the number of sessions used to find the highest high and lowest low that define the range. The lookback length that defines the window high and window low is chosen by the user. A ten-session window is the worked example.

Percent D as a companion line

Percent D is a companion line that smooths the same numerator and denominator series over a short additional window. The second line is formed by summing the last three percent-K numerators, dividing by the last three percent-K denominators, and scaling the ratio by 100.

A worksheet reconstruction

A worksheet reconstruction first isolates the window high and window low, then builds the numerator as close minus window low and the denominator as window high minus window low. Those two pieces are the inputs that percent K scales by 100, and they are the same numerator and denominator series that percent D sums over the last three readings.

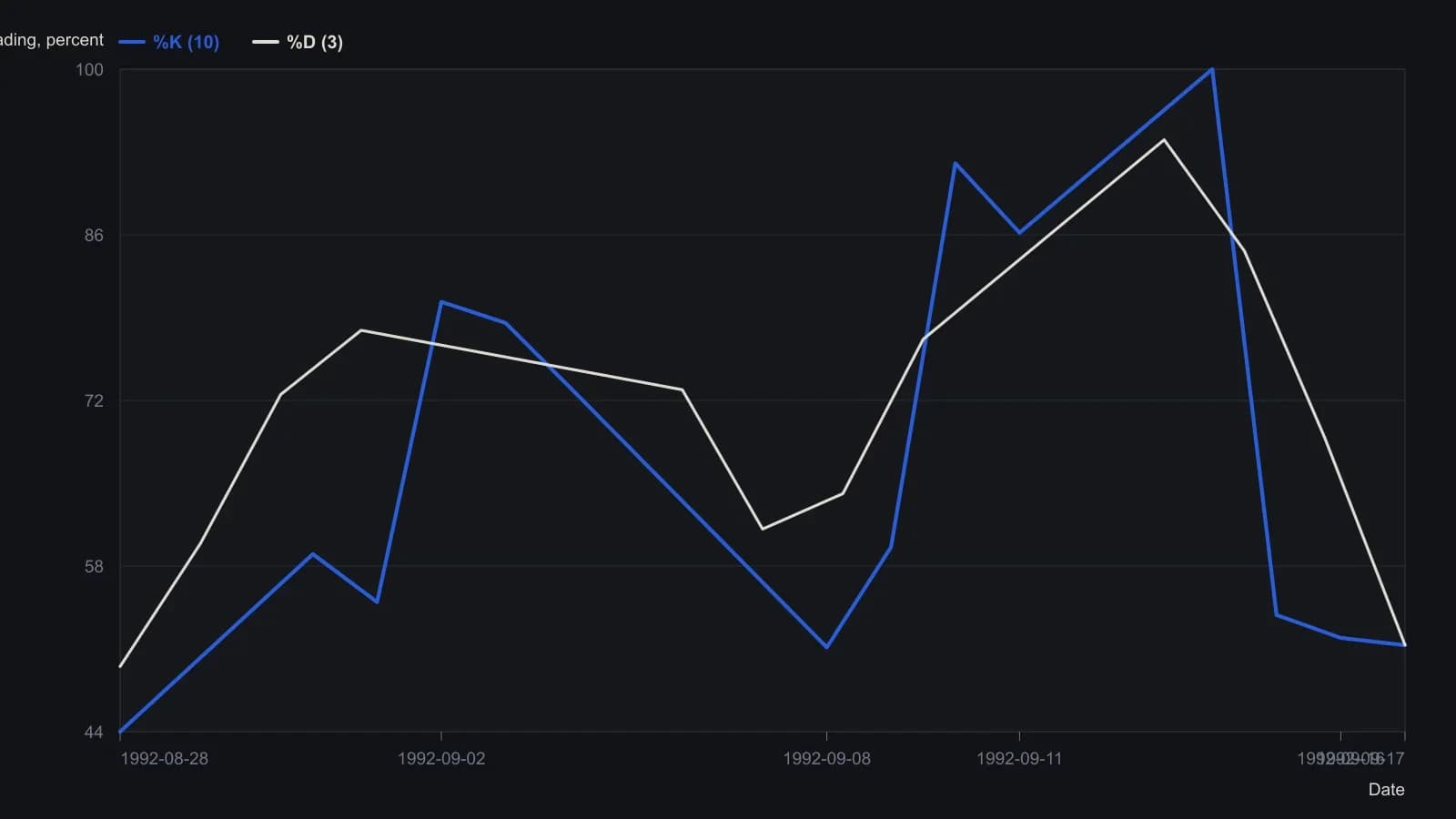

10-period %K and 3-period %D from the worksheet

Percent K tracks where each close sits in the last 10 sessions; Percent D is the three-period smoothed companion. Values are taken cell-for-cell from the sidebar worksheet, not from a plotted curve.
Percent K tracks where each close sits in the last 10 sessions; Percent D is the three-period smoothed companion. Values are taken cell-for-cell from the sidebar worksheet, not from a plotted curve.worksheet example · daily · 1992-08-17T00:00:00.000Z to 1992-09-17T00:00:00.000Z

Lookback n=10 for the high-low window; %D uses a three-session sum of the %K numerator and denominator. The first nine dates have no oscillator values because the 10-day window is not yet full; %D begins one session after the first %K.

Relabeling into the slow stochastic

The slow stochastic is a variant that treats the already-smoothed companion as a new raw line and then applies one further moving-average pass. The slow form keeps those same inputs: it relabels the already-smoothed companion as slow percent K and then applies a three-session moving average to obtain the new percent D.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
