2018issue C098-11

Weekly and daily stochastic readings with a long moving average and support

A slower 70-day stochastic and a faster 14-day stochastic can be read together, then checked against a long simple moving average and nearby support or resistance, so a pullback can be judged as a correction or as the start of a reversal.

  • The weekly-and-daily construction plots two slow stochastic %K lines: a 14-day line and a 70-day line, the latter chosen as 14 weeks of five trading days.
  • Slow %K is fast %K smoothed with a three-period simple moving average, and it is the only stochastic line plotted on each horizon.
  • The 70-day line is less sensitive and produces fewer signals than the 14-day line because it locates the close in a longer high-low range.
  • Support and resistance around prior peaks, plus whether price reclaims a 200-day simple moving average, are used with the two lines to judge whether a pullback is starting, ending, or continuing a larger trend.
Entries in this reading3 entries
Current trackStochastic oscillator170 readingsSupport and resistance170 readingsMoving average449 readings

Reading both horizons at once

The weekly-and-daily stochastic plots two three-day-smoothed slow stochastic %K lines so that weekly-scale location and daily-scale location can be read together. One line uses a 14-day lookback. The other uses a 70-day lookback, chosen as 14 weeks of five trading days.

Those two lines are then read against a long simple moving average and against support and resistance taken from prior swing highs and lows. The historical workflow uses that combination to judge whether a pullback is starting or ending, and whether a bounce is a reversal or a continuation.

How each slow percent K line is built

Fast %K is the close minus the lookback low, divided by the lookback high-low range and scaled by 100. Slow %K is that series smoothed with a three-period simple moving average.

On each horizon, only the slow %K line is plotted. The same calculation is applied to the 14-day lookback and to the 70-day lookback, so the close is located inside a short high-low range and inside a longer high-low range at the same time.

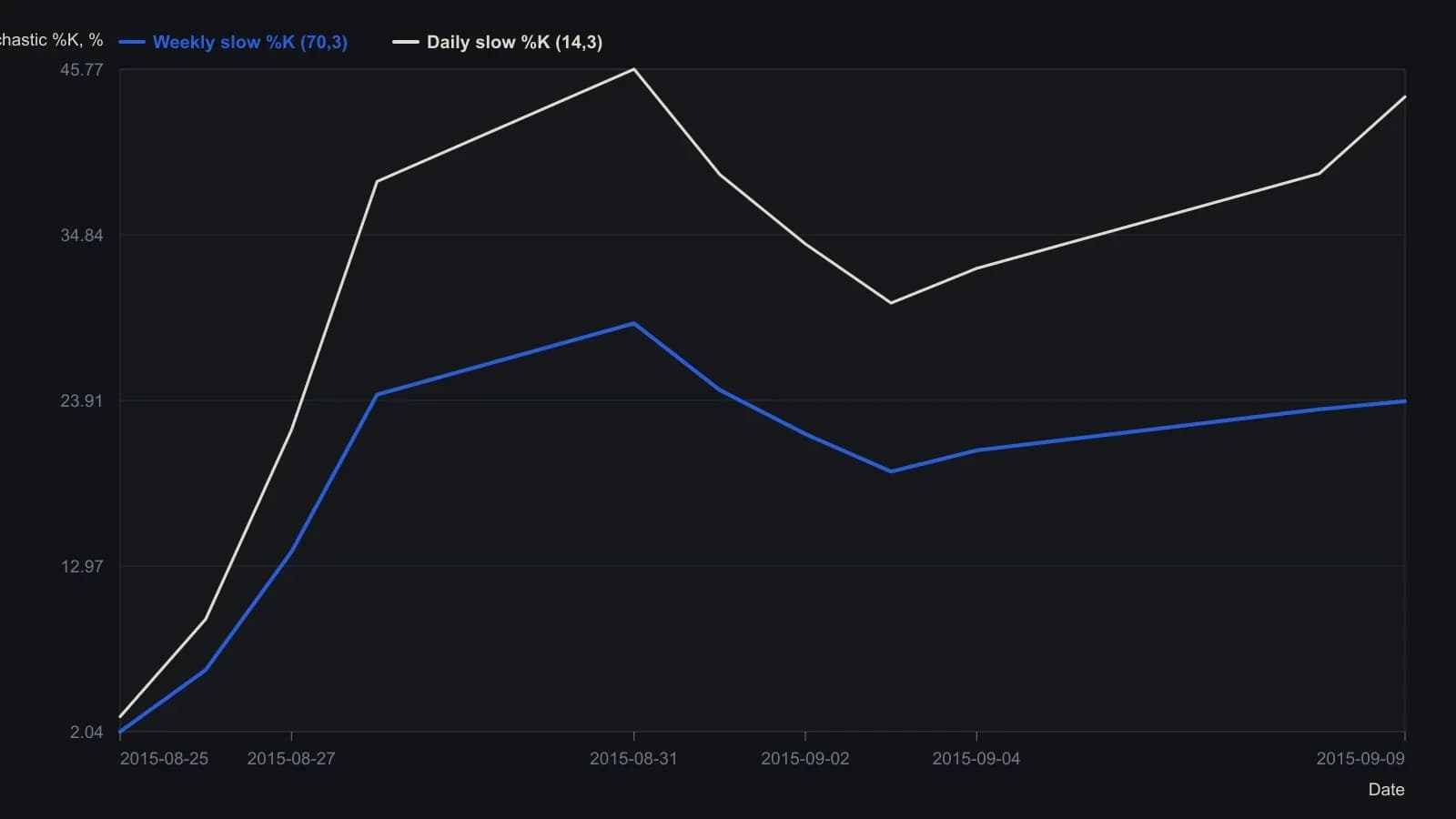

Weekly versus daily slow stochastic, 25 August–9 September 2015

After the late-August flush the 14-day slow %K rebounds toward the middle of its range while the 70-day slow %K only creeps out of the teens, so the short horizon looks repaired before the long horizon does. The points are the exact %Kw and %Kd columns from the source worksheet for 25 August through 9 September 2015.
After the late-August flush the 14-day slow %K rebounds toward the middle of its range while the 70-day slow %K only creeps out of the teens, so the short horizon looks repaired before the long horizon does. The points are the exact %Kw and %Kd columns from the source worksheet for 25 August through 9 September 2015.daily · 2015-08-25T00:00:00.000Z to 2015-09-09T00:00:00.000Z

Daily %Kd is a 3-session SMA of 14-day fast %K; weekly %Kw is a 3-session SMA of 70-day fast %K (14 weeks of trading days). The source printed only this partial slice of a longer spreadsheet.

What a reading says about the close

A reading above 50 means the close sits in the upper half of the chosen high-low range. A reading below 50 means the close sits in the lower half. Traditional overbought and oversold bands of 80 and 20 mark near-high and near-low closes.

Those 80 and 20 thresholds sit on the zero-to-100 stochastic scale and are treated as adjustable bands rather than automatic trade triggers. The 70-day line is less sensitive and produces fewer signals than the 14-day line because it locates the close in a longer high-low range.

Checking the lines against trend and price levels

The moving average in this workflow is a long simple moving average, typically the 200-day SMA. It is used as a trend filter that a bounce must reclaim or fail to reclaim.

Support and resistance are prior swing highs and lows, including levels around prior peaks. They are used with the two stochastic lines to judge whether a pullback in an uptrend is starting or ending, and to confirm whether a stochastic signal is ending a correction or starting a new trend.

A downtrend example from the historical workflow

In a downtrend example, a close below the 200-day simple moving average together with a weekly-scale oversold reading is treated as a possible start of a larger decline.

An overbought weekly-scale bounce that fails to recapture the 200-day simple moving average and then breaks support is treated as continuation of the downtrend rather than a completed reversal.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
