Constructing a double-smoothed true strength index

Build the true-strength-index as a construction sequence: form one-period-momentum, apply double-exponential-smoothing to the signed series and to its absolute value, then read a slow pair and a fast pair as separate length choices rather than as a finished system.

  • One-period-momentum is the signed change from the prior close to the current close, so an up-move is positive and a down-move is negative.
  • The true-strength-index divides double-smoothed one-period-momentum by double-smoothed absolute momentum and scales the ratio by one hundred so the reading stays comparable when the price level changes.
  • The divergence-indicator is the unnormalized numerator; stretching or shortening the first smoothing changes whether that curve tracks price or shows divergences.
  • A fast-slow-pairing states regime with a longer double-smoothing pair and timing with a shorter pair, so each window can be inspected before a crossover is treated as a rule.
Entries in this reading3 entries
Current trackMomentum strategy103 readingsExponential smoothing117 readingsMoving average449 readings

Start from one-period momentum

One-period-momentum is the current close minus the prior close. An up-move is a positive value and a down-move is a negative value.

That signed change is the series later averaged in both the numerator and the denominator.

Write the two-pass smoother

The true-strength-index is built by applying two successive exponential averages to one-period-momentum in the numerator. The same double-exponential-smoothing is applied to the absolute value of that momentum in the denominator. The ratio is then multiplied by 100.

Double-exponential-smoothing means a second exponential average applied to the output of a first exponential average of the same series. The smoothing-constant is the exponential weight estimated as two divided by one plus the chosen lookback length.

Isolate the absolute-value normalizer

The absolute-value denominator is included so the output stays in a bounded range, illustrated as plus and minus 100. That shared numeric scale remains comparable when the price level changes.

The unnormalized numerator of the same construction is the divergence-indicator: successive exponential averages of one-period-momentum without the absolute-value scale.

Read the first and second lengths

One illustrated specification uses first and second smoothings of 25 and 13 periods. A 7-period exponential average of the index is then used as a signal-line, marking candidate turning points by crossover with the bounded series.

A 300-period first smoothing of momentum with the second length set to 1 produces a curve that follows the shape of price. The bounded index compresses amplitude and can show divergences the unnormalized series does not.

Adding a 9-period second exponential pass to that 300-period momentum series removes short fluctuations while keeping turning points close to those of a comparable exponential average of the close.

Reducing the first window from 300 to 100 periods with a 9-period second pass introduces divergences that were absent at the longer window. The unnormalized and bounded series then share the same shape except for scale.

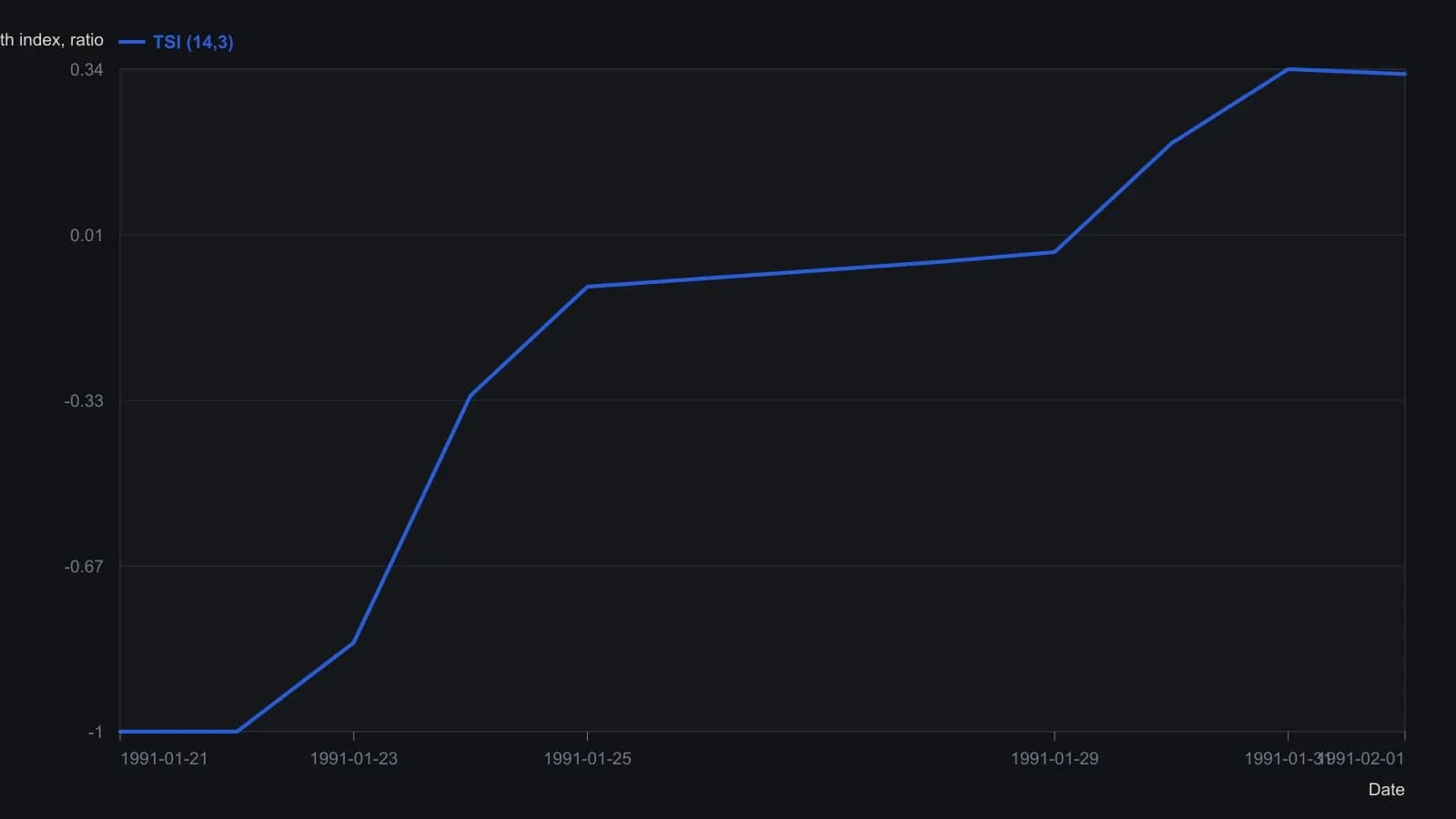

True strength index from the 14-then-3 calculation worksheet

Ten daily sessions from 21 January 1991 through 1 February 1991 show the constructed index as the ratio of twice-smoothed signed one-day momentum to twice-smoothed absolute momentum. The reading sits at −1.00 while the first changes are negative, then rises and crosses zero on 30 January once the second exponential pass of signed momentum turns positive. Figures are copied from the Calculating TrSI sidebar table, not traced off a plotted curve.
Ten daily sessions from 21 January 1991 through 1 February 1991 show the constructed index as the ratio of twice-smoothed signed one-day momentum to twice-smoothed absolute momentum. The reading sits at −1.00 while the first changes are negative, then rises and crosses zero on 30 January once the second exponential pass of signed momentum turns positive. Figures are copied from the Calculating TrSI sidebar table, not traced off a plotted curve.Daily · 1991-01-21T00:00:00.000Z to 1991-02-01T00:00:00.000Z

The first pass is a 14-day EMA (α = 0.1333) and the second pass is a 3-day EMA (α = 0.50). The sidebar reports TSI as column F divided by column H and does not apply the ×100 factor written in the article formula. The 4 February 1991 row lists only formulas and is omitted.

Split a slow regime layer from a fast timing layer

One illustrated two-layer procedure uses a fast-slow-pairing. Trend is defined with double smoothing of 100 and 20 periods. Entries and exits are selected with a faster pair of 20 and 6 periods.

An alternative construction keeps the 20-and-6 index for timing and defines trend as a 20-period exponential average of that same fast series.

Suggested construction pairs for experimentation are 20 and 6, 40 and 20, and 80 and 40. They are presented as lag-versus-smoothness trade-offs rather than universal settings.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
