Constructing a relative momentum index from the relative strength index

A relative momentum index reuses the relative strength index smoother and 0-to-100 ratio map. TradersWeek editorial reading: change only what counts as an up or down observation, and a one-bar close change can be compared with a multi-bar momentum difference as a single design choice.

  • The relative strength index turns a ratio of smoothed up closes to smoothed down closes into a bounded reading by multiplying that ratio, divided by one plus the same ratio, by 100.
  • Each smoothed total is refreshed by subtracting one lookback share of the prior total and adding the current one-bar up close, the absolute one-bar down close, or zero when that side is absent.
  • The relative momentum index uses that same bounded-ratio mapping, but forms the ratio from smoothed multi-bar up momentum and smoothed multi-bar down momentum.
  • A spreadsheet construction used a five-bar comparison span and a 20-bar smoothing span, seeding the first totals as simple sums and then subtracting one-twentieth of the prior total on later bars.
Entries in this reading2 entries
Current trackMomentum strategy103 readingsRelative Strength Index186 readings

A two-layer recipe

TradersWeek editorial reading: treat oscillator construction as two layers. Keep the same smoother and the same 0-to-100 ratio map. Change only what counts as an up or down observation.

The archive facts below describe each layer in turn. The teaching split itself is editorial.

The shared smoother and ratio map

The relative strength index turns a ratio of smoothed up closes to smoothed down closes into a bounded reading. It multiplies that ratio, divided by one plus the same ratio, by 100.

Each smoothed up-close and down-close total is refreshed by subtracting one lookback share of the prior total and adding the current one-bar up close, the absolute one-bar down close, or zero when that side is absent. That update is average-off smoothing.

Changing only the up and down observation

The relative momentum index uses the same bounded-ratio mapping as the relative strength index, but the ratio is formed from smoothed multi-bar up momentum and smoothed multi-bar down momentum.

Up momentum is the positive difference between the current close and the close a chosen number of bars earlier, or zero. Down momentum is the absolute value of a negative difference over that same span, or zero. That chosen length is the momentum span.

TradersWeek editorial reading: a one-bar close change and a multi-bar momentum difference are then the same observation rule at two spans. The map does not change.

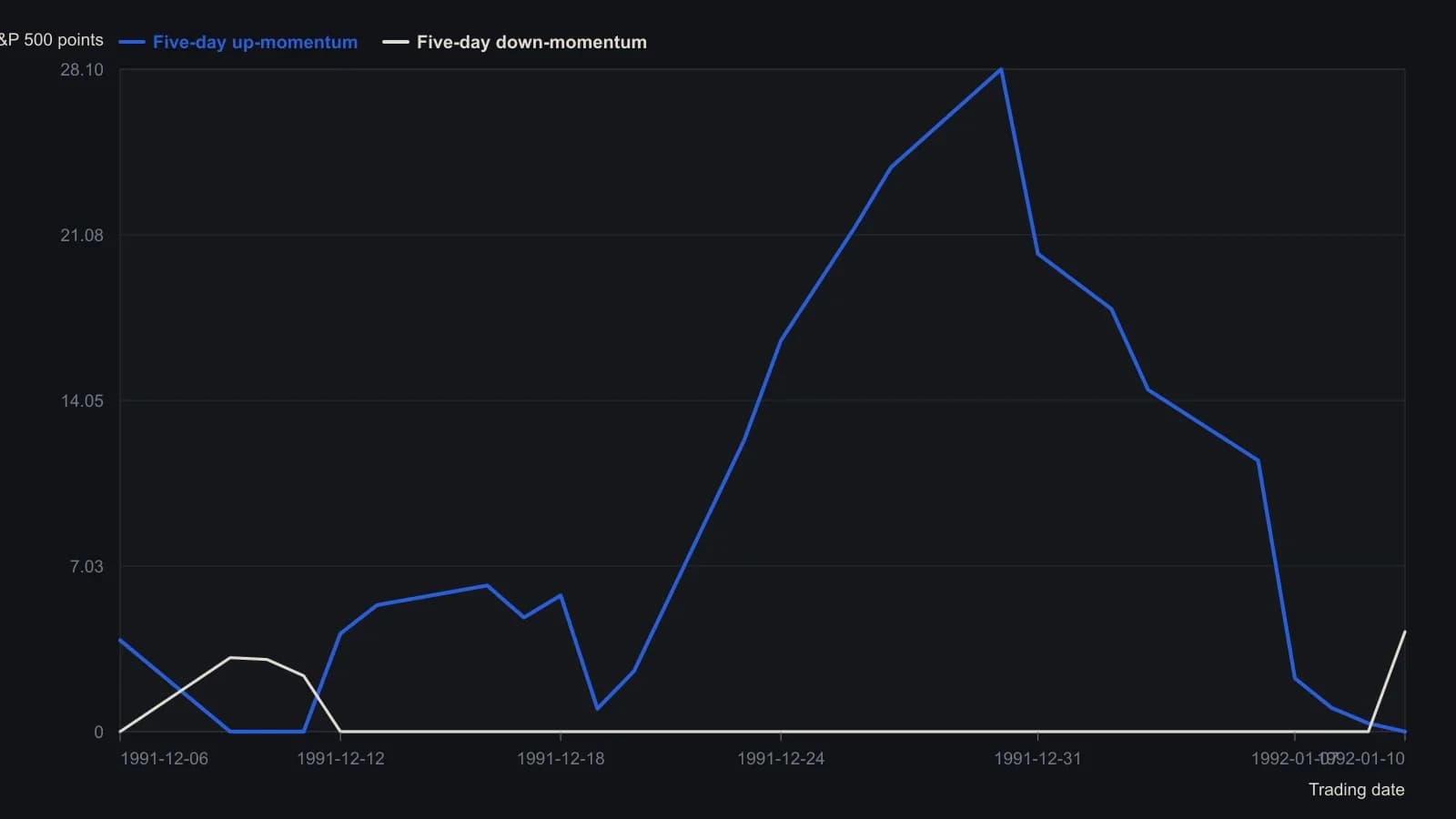

Five-day up and down momentum on the S&P 500

The December rally is counted almost entirely as five-day gains, so down-momentum stays at zero until 10 January, when the first five-day loss appears and the worksheet RMI eases from the mid-90s. Every point is an exact column C or D cell from the sidebar Excel table, not a redrawn curve.
The December rally is counted almost entirely as five-day gains, so down-momentum stays at zero until 10 January, when the first five-day loss appears and the worksheet RMI eases from the mid-90s. Every point is an exact column C or D cell from the sidebar Excel table, not a redrawn curve.S&P 500 · daily · 1991-12-06T00:00:00.000Z to 1992-01-10T00:00:00.000Z

The sidebar fixes the momentum lookback at y = 5 sessions and the smoother at x = 20. This pair is only the raw up and down observation layer; the first RMI prints after the 20-day seed on 6 January 1992.

Seeding the first totals

A spreadsheet construction of the relative momentum index used a five-bar comparison span and a 20-bar smoothing span. TradersWeek editorial note: the comparison span is the momentum span used to form each signed difference.

The first 20-bar up-momentum and down-momentum totals can be seeded as simple sums of the first 20 signed momentum observations. Later bars subtract one-twentieth of the prior total and add the current observation.

After smoothing, the momentum ratio is the up-momentum total divided by the down-momentum total. That ratio is then scaled with the same 100-times-ratio-over-one-plus-ratio step used for the relative strength index.

A defined momentum input

TradersWeek editorial reading: with the smoother and the ratio map held fixed, the momentum span is the remaining design choice. A momentum strategy can treat that multi-bar close-to-close difference as an explicit, testable rule input rather than as a narrative label.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
