Constructing a trend filter from two adjacent high-low windows

Buy power and sell power are assembled from two equal-length adjacent high-low windows. The same scaled reading and the same plus-or-minus 100 levels then define a three-state Trend filter and the accompanying long, short, or hold rules.

  • Buy power is the current-window highest high minus the prior-window lowest low, and sell power is the prior-window highest high minus the current-window lowest low.
  • The filter value is the difference of those two powers, divided by half their sum, then multiplied by 100, with coded implementations defaulting both windows to a 15-bar lookback.
  • Readings above 100, below -100, and between those levels are treated as uptrend, downtrend, and consolidation or hold states.
  • The same thresholds can reverse a stay-positioned procedure on crossings, or issue long, short, or neutral signals from the level of the reading itself.
Entries in this reading2 entries
Current trackMomentum strategy103 readingsTrend filter137 readings

What this construction specifies

This archive article reconstructs the Trend filter from two equal-length adjacent windows of highs and lows. Buy power and sell power are formed first. Those two quantities are then scaled into one reading, and that reading is classified with shared numeric thresholds.

Two adjacent windows define the powers

The filter is built from two equal-length adjacent windows. Buy power is the current-window highest high minus the prior-window lowest low. Sell power is the prior-window highest high minus the current-window lowest low.

The filter reading is a scaled difference

The filter value is the difference of those two powers, divided by half their sum, then multiplied by 100. Coded implementations default both windows to a 15-bar lookback.

Shared levels classify the state

A reading above 100 is treated as an uptrend state. A reading below -100 is treated as a downtrend state. Readings between those levels are treated as consolidation or a hold state.

Period length and the plus-or-minus 100 trigger levels are treated as explicit inputs that some implementations expose for variation or search rather than as fixed constants.

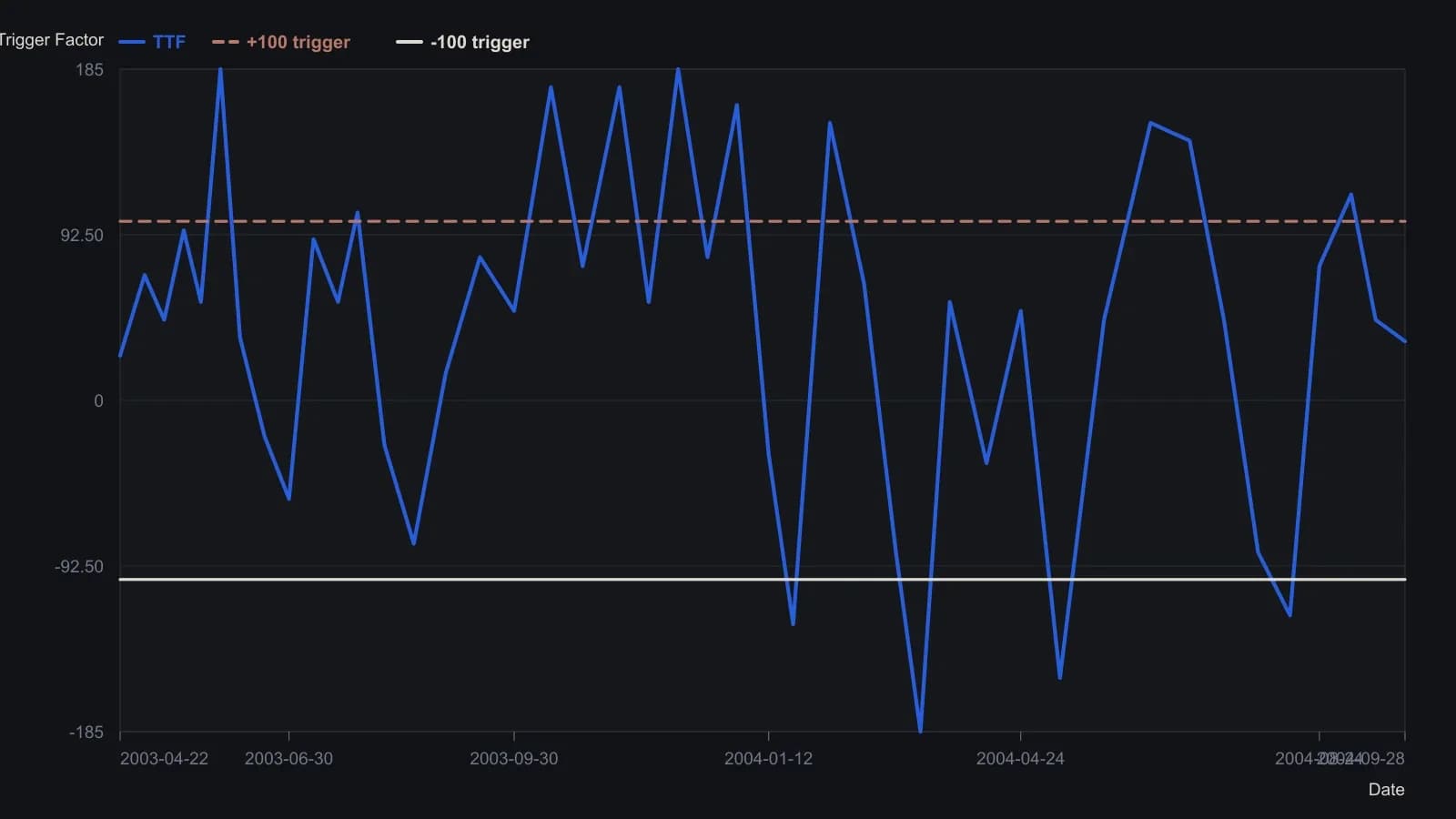

Alcoa daily Trend Trigger Factor against the plus-or-minus 100 state lines

A 15-day TTF above 100 marks an uptrend state, below -100 a downtrend, and the band between those lines a hold. The series was read from the Wealth-Lab TTF pane on daily Alcoa, where the platform prints 32.917 on the last bar and draws dotted lines at +100 and -100.
A 15-day TTF above 100 marks an uptrend state, below -100 a downtrend, and the band between those lines a hold. The series was read from the Wealth-Lab TTF pane on daily Alcoa, where the platform prints 32.917 on the last bar and draws dotted lines at +100 and -100.AA · Daily · 2003-04-01T00:00:00.000Z to 2004-09-30T00:00:00.000Z

Source code fixes the adjacent high-low windows at 15 daily bars. Curve points are approximate raster reads; only the last printed TTF of 32.917 is an on-screen exact value.

The same reading can drive two rule styles

One accompanying procedure stays positioned and reverses on threshold crossings. It goes long on a cross above 100 and short on a cross below -100.

Other implementations issue long, short, or neutral signals from the level of the same 15-bar reading rather than from a crossing event.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
