Evaluating Bollinger Bands against fixed-width and range-based envelopes

Bollinger Bands scale envelope width with volatility from a moving-average middle line. A shared-series comparison asks how much price action those bands contain relative to a fixed-width envelope and to Keltner channels, while a band extreme still needs confirmation from another indicator.

  • Bollinger Bands place outer lines two standard deviations from a moving-average middle line, so bandwidth expands and contracts with volatility.
  • Fourteen-period and twenty-period moving averages of the close are described as common starting choices for constructing those bands.
  • On one Apple daily series, two-standard-deviation 14-day Bollinger Bands contained more of the price action than a fixed 3 percent envelope and more than Keltner channels.
  • The original framing treated a band extreme as a warning that still needed confirmation from another indicator before a position was opened.
Entries in this reading1 entry
Current trackBollinger Bands84 readings

What the bands are built to show

Bollinger Bands place outer lines two standard deviations of price from a moving-average middle line so bandwidth expands and contracts with volatility.

Fourteen-period and twenty-period moving averages of the close are described as common starting choices for constructing those bands.

Bollinger Bands were originally framed as a warning of price extremes that still needed confirmation from another indicator before a position was opened.

The same series, three envelopes

On the same Apple daily series used for a fixed 3 percent envelope, two-standard-deviation 14-day Bollinger Bands contained more of the price action than the fixed-width envelope.

The same comparison notes that Keltner channels contained more of that Apple price action than the 3 percent envelope but less than the Bollinger Bands.

A later reading of channel rules

A later backtest comparison of channel interpretations concluded that STARC bands and Bollinger Bands under one tested rule set merited closer study, while one Keltner-channel rule set looked less promising.

Editorial interpretation: those later remarks rank selected rule sets for further study. They do not replace confirmation from another indicator, and they do not turn containment on one series into a trading instruction.

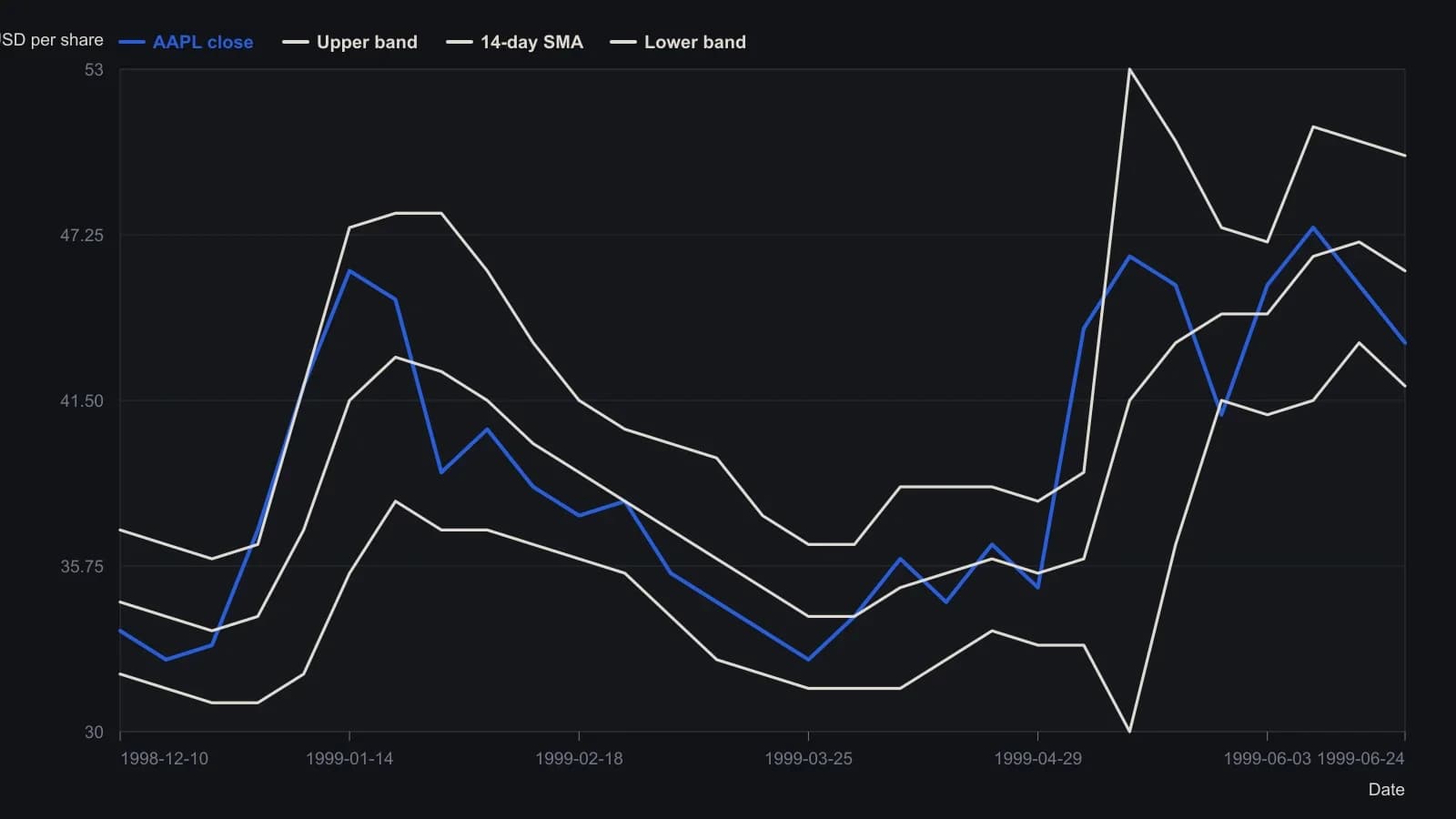

AAPL daily with 14-period two-sigma Bollinger Bands

Weekly samples read off the daily Apple Computer chart in Figure 2. Two-standard-deviation bands around the 14-day average hold most of the winter range and then gap wide on the May 1999 surge, which is the contrast the article draws with a fixed 3 percent envelope on the same bars.
Weekly samples read off the daily Apple Computer chart in Figure 2. Two-standard-deviation bands around the 14-day average hold most of the winter range and then gap wide on the May 1999 surge, which is the contrast the article draws with a fixed 3 percent envelope on the same bars.AAPL · daily · 1998-12-10T00:00:00.000Z to 1999-06-24T00:00:00.000Z

Outer bands are the 14-day simple moving average of the close plus or minus two standard deviations, as given in the source. Coordinates are digitized from the raster, so they are approximate to the nearest half dollar.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
