Constructing volatility-scaled Bollinger envelopes

The envelope is three lines: a middle moving average and outer lines placed two standard deviations away from that path. Width can change with volatility, and the relative strength index is specified only to confirm what the finished bands show.

  • Build the envelope as a middle moving average with a customary 20-day lookback, then place the upper and lower lines two standard deviations from that path.
  • Use a standard-deviation offset instead of a fixed-percentage offset so the envelope can change width with market volatility.
  • Read price at or beyond the outer lines as a possible overbought-oversold condition, then apply the stated tightening, continuation, and reversal rules.
  • Leave the relative strength index out of the band arithmetic; it is specified only to confirm what the finished envelope shows.
Entries in this reading3 entries
Current trackBollinger Bands84 readingsRelative Strength Index186 readingsMoving average449 readings

A three-line envelope

The envelope is drawn as three lines: a middle moving average, an upper line, and a lower line. That sandwich is meant to frame a range of price movement. The outer lines sit a stated number of standard deviations away from the central moving average so the width can change with volatility.

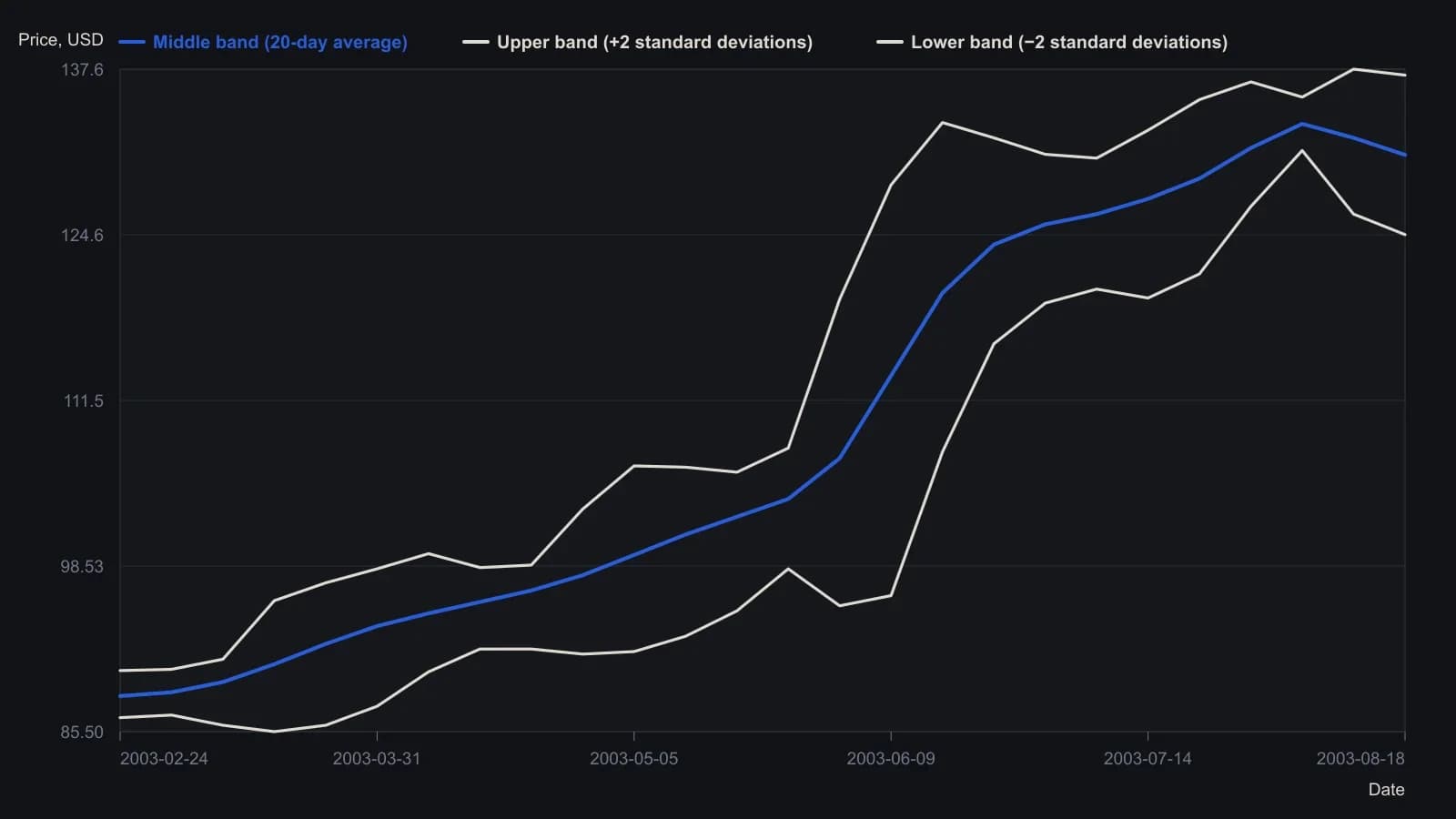

Daily EBH with a 20-day two-sigma envelope

On daily EBH the 20-session average is flanked by rails two standard deviations away. The envelope stays tight through the spring coil, then gapes open on the June advance and is still wide into August, with the last printed rails at 137.13 and 124.59 around a 130.86 midline. Weekly samples were read from the published figure; those three closing prints were taken from the scale.
On daily EBH the 20-session average is flanked by rails two standard deviations away. The envelope stays tight through the spring coil, then gapes open on the June advance and is still wide into August, with the last printed rails at 137.13 and 124.59 around a 130.86 midline. Weekly samples were read from the published figure; those three closing prints were taken from the scale.EBH · Daily · 2003-02-24T00:00:00.000Z to 2003-08-18T00:00:00.000Z

The source fixes the middle path at a 20-day moving average and the offsets at two standard deviations. Only month ticks are dated on the figure; weekly x values are interpolated from those labels. The year 2003 is taken from Stocks & Commodities V. 21:10 (October 2003), not printed on the plot. Intermediate levels are approximate; do not treat them as ticks.

How the middle path and offsets are built

The middle line is specified as a moving average with a customary 20-day lookback. That moving average is the central path of the envelope. The upper line is the middle moving average plus two standard deviations. The lower line is that same average minus two standard deviations.

Those outer placements are the standard-deviation offset: the volatility measure added to and subtracted from the central moving average to locate the upper and lower lines.

Why width is tied to volatility

The outer offsets use standard deviations rather than a fixed percentage so the width can change with market volatility. A fixed-percentage envelope, illustrated with a 3 percent offset, is described as adjusting poorly during extreme advances or declines. Tying band width to the standard deviation of the moving average is presented as making the envelope more adaptable and better at containing prices.

How the finished envelope is read

Price at or above the upper line is treated as a possible overbought condition. Price at or below the lower line is treated as a possible oversold condition. That overbought-oversold reading comes from the construction itself: price at or beyond the upper line may be treated as stretched upward, and price at or beyond the lower line as stretched downward.

Stated reading rules include sharp moves after the bands tighten, continuation when price leaves the bands, reversal after extremes print outside then inside, and a tendency for a move that starts at one band to reach the other.

A confirmation companion, not a band input

The envelope is intended to be used together with the relative strength index to confirm what the bands show. In that role the relative strength index is a companion oscillator used alongside the bands to check observations rather than to compute the bands themselves.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
