Constructing exponential-deviation-bands from a midline-average

Exponential-deviation-bands center on a midline-average of close and set width from a recursively smoothed absolute deviation. After the lookback elapses, the three series can be rebuilt from that lookback, a deviation-multiplier, and a choice of simple or exponential midline.

  • The envelope is centered on a midline-average of close, simple or exponential, over a chosen lookback, and the first width measure is the absolute distance from that midline to the latest close.
  • That absolute distance is recursively smoothed with the smoothing-multiplier, which is 2 divided by one plus the lookback length, so recent deviations receive more weight than older ones.
  • Upper and lower envelopes add and subtract the smoothed deviation scaled by a deviation-multiplier, commonly set to 2, from the same midline-average.
  • Relative to a standard-deviation envelope of the Bollinger type, the construction is described as more recent-weighted and as producing a lower breakout-count.
Entries in this reading3 entries
Current trackBollinger Bands84 readingsExponential smoothing117 readingsMoving average449 readings

Center the band on a midline-average

The construction centers a band on a midline-average of close over a chosen lookback. That midline-average may be a simple moving average or an exponential moving average.

The first width measure is the absolute distance from this midline-average to the latest close.

Apply the smoothing-multiplier

That absolute distance is recursively smoothed with the same multiplier used in exponential averaging. The smoothing-multiplier is 2 divided by one plus the lookback length, so recent deviations receive more weight than older ones.

Form the outer envelopes

Upper and lower envelopes are formed by adding and subtracting the smoothed deviation, scaled by an explicit deviation-multiplier, from the same midline-average. The deviation-multiplier is commonly set to 2.

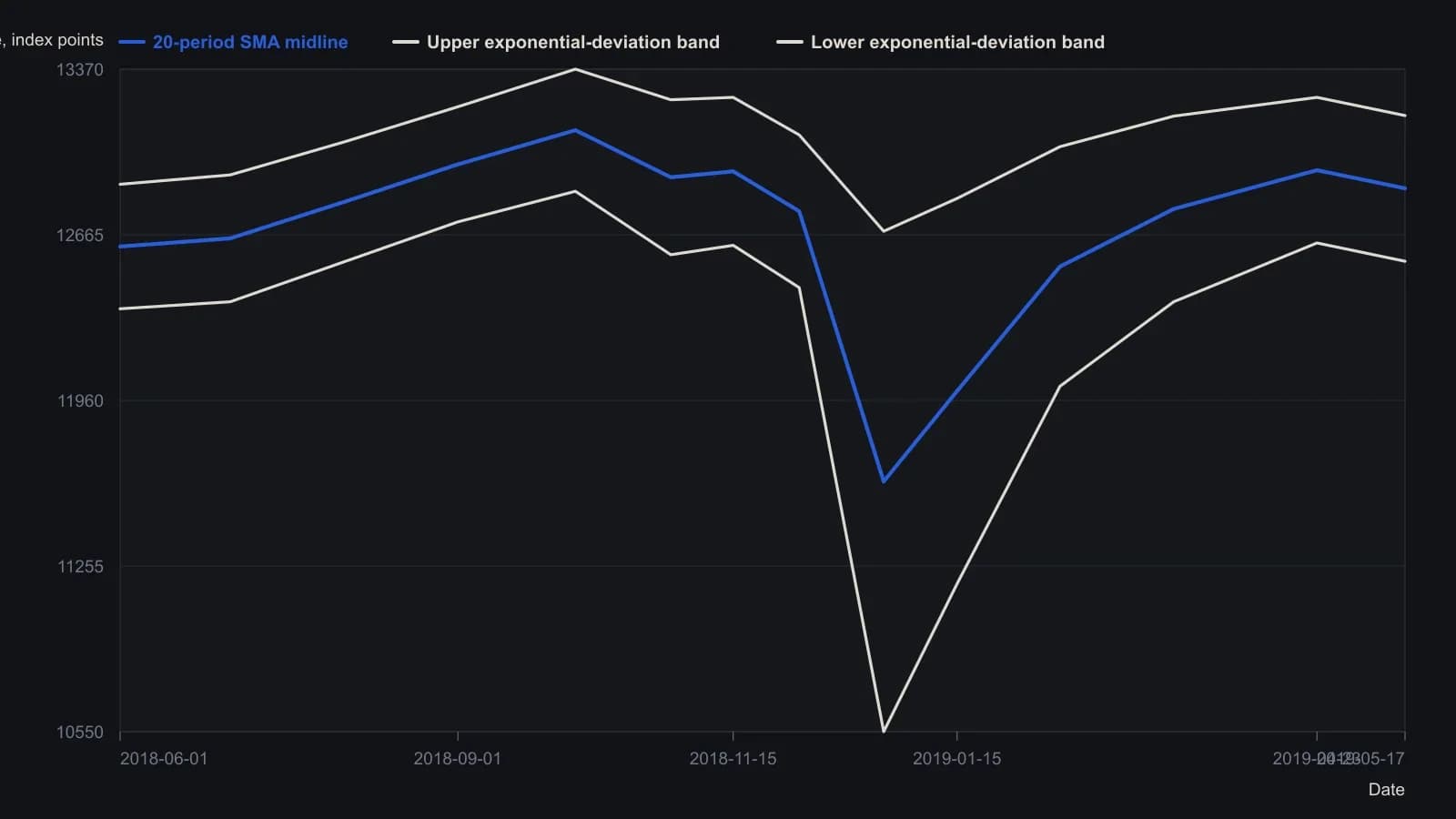

Exponential-deviation bands on daily NYSE Composite

A 20-period SMA midline with a 2× exponentially smoothed absolute-deviation envelope on daily NYSE Composite. The envelope stays relatively tight through the 2018 grind, then blows out as price tags the lower band at the December crash before recovering inside the band. Last-bar levels are the TradeStation numeric readout; earlier points are read off the plotted SMA-centered overlay.
A 20-period SMA midline with a 2× exponentially smoothed absolute-deviation envelope on daily NYSE Composite. The envelope stays relatively tight through the 2018 grind, then blows out as price tags the lower band at the December crash before recovering inside the band. Last-bar levels are the TradeStation numeric readout; earlier points are read off the plotted SMA-centered overlay.NYSE Composite ($NYA) · Daily · 2018-06-01T00:00:00.000Z to 2019-05-17T00:00:00.000Z

Chart header prints TASC Jul 2019 inputs Periods=20, DevMult=2, UseSMA=true, with last-bar readout midline 12862.47, upper 13172.57, lower 12552.38, last 12738.36 on 17 May 2019. A second, faster overlay is visible on the source chart and was not digitized. Midline points other than the last bar are the midpoint of the two envelopes, which is the indicator identity Upper/Lower = midline ± 2×ED. Raster precision is tens of index points, not the readout’s hundredths.

Contrast with a Bollinger-type envelope

Relative to a standard-deviation envelope of the Bollinger type, this exponential-deviation construction is described as weighting recent data more heavily and producing fewer outer-band crossings. That comparison is a breakout-count contrast, not a claim about use in a market.

Inputs needed to plot the three series

Reference implementations expose the lookback, the deviation-multiplier, and a switch between simple and exponential midlines as the only construction inputs needed to plot the three series after the lookback has elapsed.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
