Reading Relative Strength Index extremes on one price axis with Bollinger Bands and moving averages

A Relative Strength Index on a 0 to 100 scale sits in a separate pane and is hard to line up with price by eye. RSI bands restate chosen oscillator levels as implied closes so those cutoffs can be compared with Bollinger Bands and a moving average on the price chart.

  • A Relative Strength Index that lives on a 0 to 100 scale in a separate pane is harder to align visually with price and trend than overlays drawn on the price chart.
  • RSI bands are the hypothetical close that would make the current bar print a chosen Relative Strength Index level, given the prior close and prior oscillator state.
  • Plotting those implied-price bands on the price pane lets 70 and 30 crossings be read without matching a lower oscillator pane by eye.
  • Once Relative Strength Index levels are restated as price bands, they can be read on the same chart as Bollinger Bands and moving averages.
Entries in this reading3 entries
Current trackBollinger Bands84 readingsRelative Strength Index186 readingsMoving average449 readings

Why a separate pane is hard to align with price

A Relative Strength Index is a 0 to 100 oscillator of averaged up versus down closes over a stated lookback, commonly read against 70 and 30. When that oscillator lives in a separate pane, it is harder to align visually with price and trend than overlays drawn on the price chart.

RSI bands invert chosen oscillator cutoffs into implied prices so Relative Strength Index extremes, Bollinger Bands, and a moving average can be compared on one price axis instead of being stitched together across panes.

What RSI bands are

RSI bands are the hypothetical close that would make the current bar print a chosen Relative Strength Index reading, given the prior close and prior oscillator state. They are drawn as overlays on the price chart.

The construction can target any oscillator level and lookback. 70 and 30 are the usual pair because they match common overbought and oversold cutoffs.

A 14-bar construction at 70 and 30

A worked construction uses a 14-bar lookback and targets of 70 and 30, updating running averages of up and down closes to solve for the implied close at each target.

Very short lookbacks make the implied-price bands highly volatile. An optional clamp can hold each band within about 10 percent of the current price.

Reading 70 and 30 on the price pane

Plotting the implied-price bands on the price pane lets 70 and 30 crossings be read without matching a lower Relative Strength Index pane by eye.

The shape of the price-space bands can mark protruding highs or lows that would not generate a conventional 70/30 Relative Strength Index cross.

The same axis as Bollinger Bands and moving averages

Once Relative Strength Index levels are restated as price bands, they can be read on the same chart as other price-based models such as Bollinger Bands and moving averages.

Bollinger Bands are a price-space envelope that can sit on the same axis once those oscillator levels are restated as implied prices. A moving average is a price-space smoother that becomes combinable with Relative Strength Index in the same way.

Other custom-scale indicators

The same invert-to-price-space step can be applied to other custom-scale indicators that otherwise require a separate window.

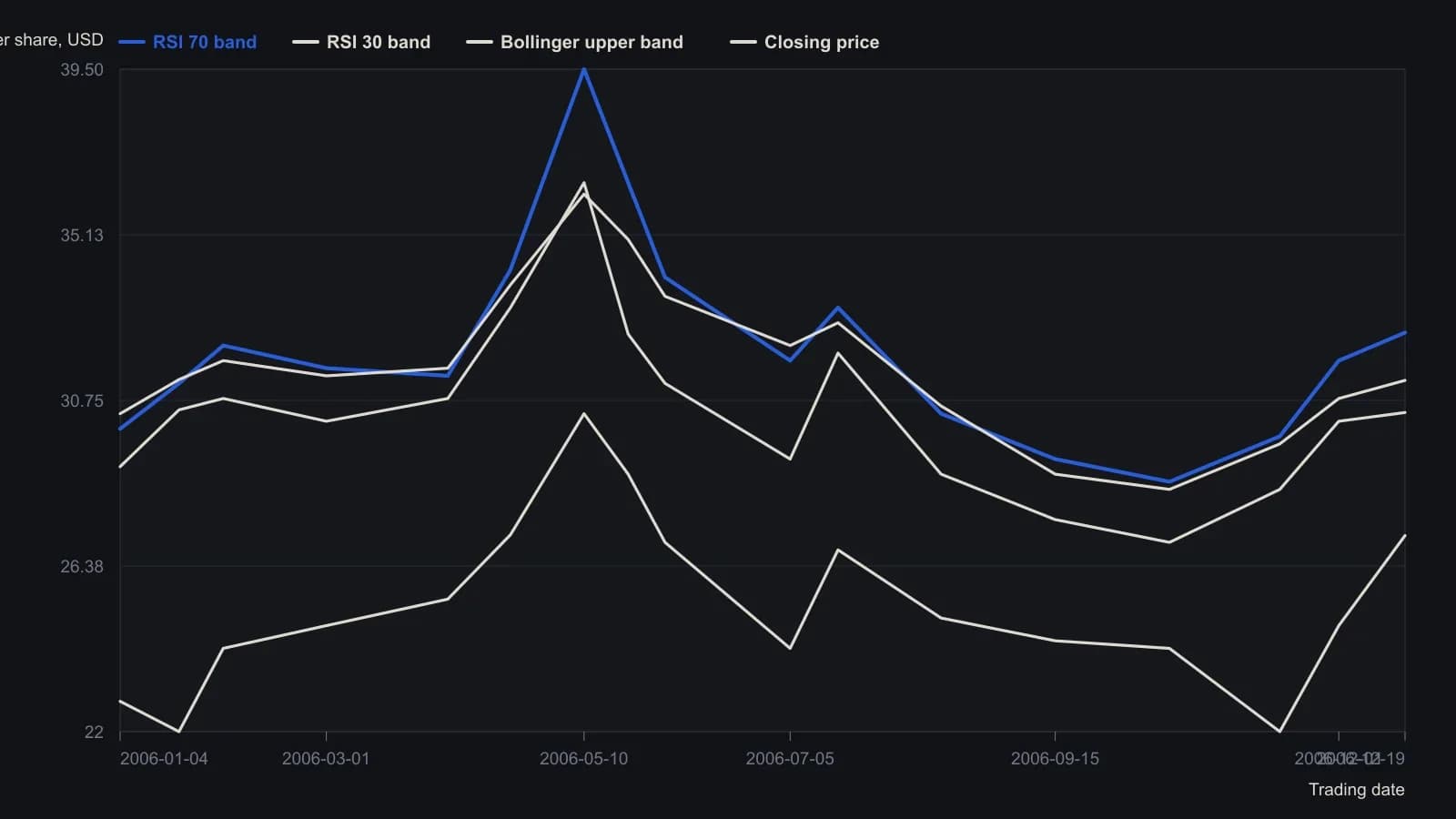

Alcoa daily price with RSI 70/30 bands and Bollinger upper band

Alcoa’s 2006 daily chart restates the 70 and 30 RSI cutoffs as implied dollar prices so those levels sit on the same axis as the close and the 15-bar, two-sigma Bollinger upper band. A trader can see the May spike drive the 70 band above the envelope, the July and November 30-band troughs that never wait on a pane-to-pane RSI cross, and the December close still inside both sets of bands. The 19 December 2006 point uses the printed snapshot on the figure; earlier points were read from the plotted curves.
Alcoa’s 2006 daily chart restates the 70 and 30 RSI cutoffs as implied dollar prices so those levels sit on the same axis as the close and the 15-bar, two-sigma Bollinger upper band. A trader can see the May spike drive the 70 band above the envelope, the July and November 30-band troughs that never wait on a pane-to-pane RSI cross, and the December close still inside both sets of bands. The 19 December 2006 point uses the printed snapshot on the figure; earlier points were read from the plotted curves.AA · Daily · 2006-01-04T00:00:00.000Z to 2006-12-19T00:00:00.000Z

The figure header fixes RSI bands at 70 and 30 and Bollinger Bands on close with length 15 and two standard deviations. The lower pane is labeled RSI(15); the article’s AmiBroker listing uses a 14-bar RSI. Digitized values are approximate except the printed 19 December 2006 readings.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
