Walk-forward robustness evaluation for optimized systems

A combined indicator and neural-network system is evaluated as one locked procedure: choose which rule inputs may be searched, reserve later data the search cannot see, and keep the rules only if they still emit coherent signals after costs and competing objectives.

  • Choose which rule inputs may be searched, reserve later data the search cannot see, and keep the rules only if they still emit coherent signals after costs and competing objectives.
  • Each parameter can be left fixed or included in the search, and turning parameters out of the search or tightening their ranges is presented as a control against curve-fitting.
  • Walk-forward analysis locks parameters after an earlier sample, then inspects them on a paper-trading window and later unused data before a further forward stretch.
  • Robustness testing checks whether locked rules still behave acceptably when costs, scored objectives, or unused data change.
Entries in this reading3 entries
Current trackRobustness testing58 readingsSystem optimization85 readingsWalk-forward analysis95 readings

A single system under test

Conventional indicators and neural-network models can be combined into one trading system that is then backtested and optimized.

System optimization is a controlled search over selected rule parameters, with other inputs held fixed and search bounds set in advance. Each parameter can be left fixed or included in the search, and the allowed range for a searched parameter can be chosen or changed.

Turning selected parameters out of the search or tightening their ranges is presented as a control against curve-fitting and over-optimization. Curve-fitting is fitting rules so closely to historical data that later unused data no longer support the same behavior.

Unused later data

A system can be backtested and optimized, then examined on later unused data, including using a paper-trading interval to select parameters for a further forward stretch. Walk-forward analysis locks parameters after an earlier sample and then generates signals on later unused data. A paper-trading window is a reserved interval after optimization used to inspect locked rules before a later forward stretch.

One illustrated evaluation used eight years of optimization data, two years of paper-trading data, and two subsequent years of later data. A system can be placed on a price chart, optimized, inspected through an equity-curve indicator, and then reviewed on a later interval by extending the chart. An out-of-sample check reviews signals and equity after the tested range is extended past the optimization window.

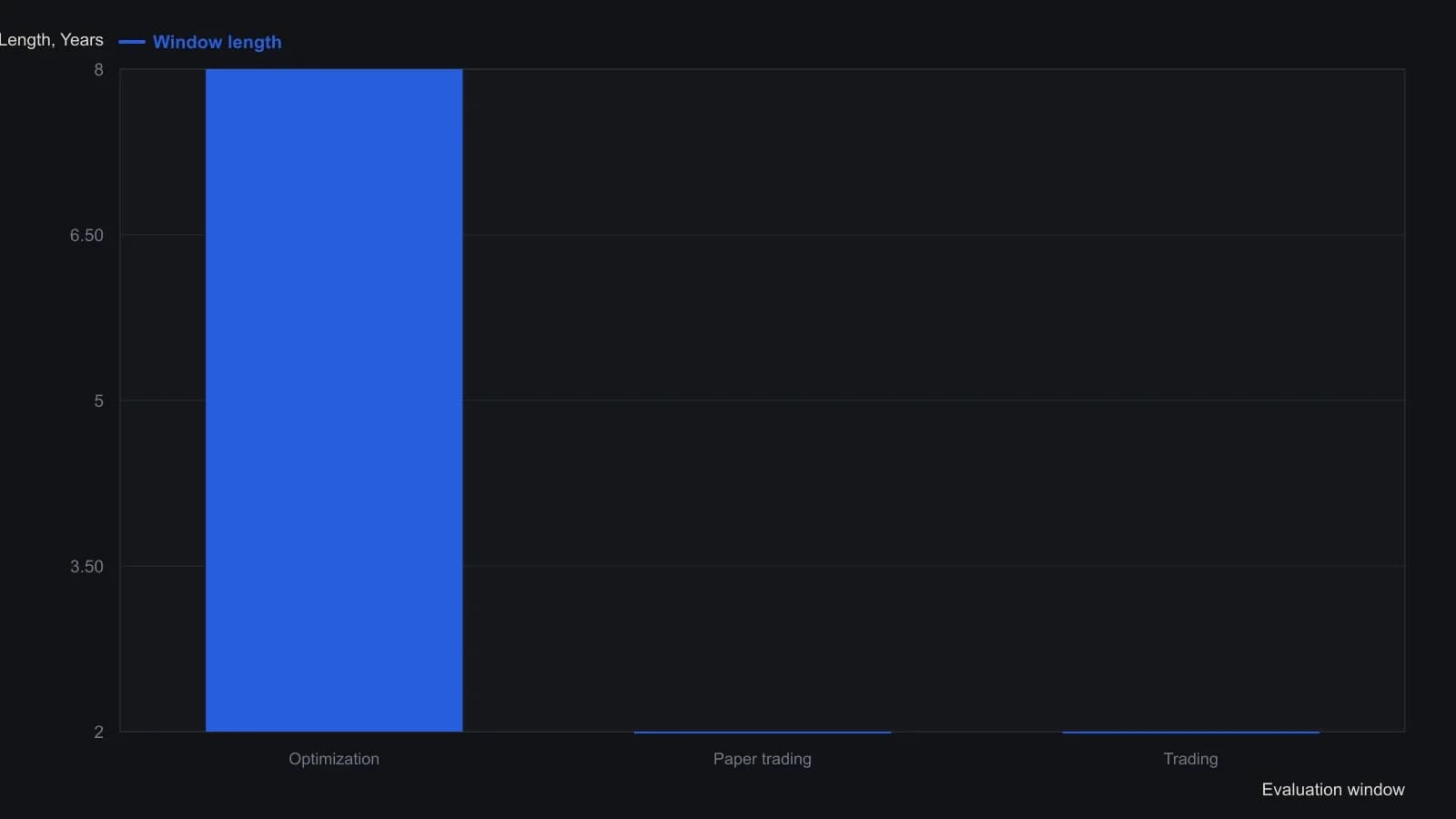

Walk-forward windows reserved on the AAPL test

The review locks eight years for the optimizer, then holds out two years of paper trading and two years of live trading that the search is not allowed to see. Those lengths are stated in the article and shown on the strategy Dates tab. A trader should treat only the last four years as an honest check that the locked entry and exit rules still fire after costs.
The review locks eight years for the optimizer, then holds out two years of paper trading and two years of live trading that the search is not allowed to see. Those lengths are stated in the article and shown on the strategy Dates tab. A trader should treat only the last four years as an honest check that the locked entry and exit rules still fire after costs.AAPL · Daily · 2006-01-01T00:00:00.000Z to 2018-04-15T00:00:00.000Z

The tester kept the parameter set that did best on the later paper-trading slice, then applied it through the final trading window. The sample starts in 2006; the last chart date shown is 15 April 2018.

Costs and competing objectives

Backtests can accept explicit inputs for order-size costs, pyramiding, brokerage fees, and slippage. The search can be scored on different objectives, including the gap between winning and losing trades, the largest drawdown, account return, and account return multiplied by equity-curve correlation.

An optimization objective is the scored goal that ranks candidate parameter sets during a search. Robustness testing checks whether locked rules still behave acceptably when costs, scored objectives, or unused data change.

Inputs and markets

The same evaluation workflow can use built-in indicators, custom indicators, or values returned from an external compiled library, and can be applied across stocks, foreign exchange, commodities, indexes, and options.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
