Constructing a camarilla-grid from a completed lookback range

A camarilla-grid locks a finished lookback high, low, and close, then places five mirrored support and resistance pairs. The inner-offsets scale from the lookback-range, the outer-ratio-pair uses the high-to-low ratio, and the next session reads each pair as an area the market can confirm or kill.

  • Camarilla pivot levels are built from a completed lookback high, low, and close, not from the live bar.
  • The inner-offsets sit the same distance above and below the lookback close, using 1.1 times the lookback-range divided by 12, 6, 4, and 2.
  • The outer-ratio-pair sets the fifth resistance as the lookback close multiplied by lookback high over lookback low, then reflects that distance below the close.
  • The same grid can host fade-style hypotheses at the third-pair-band and breakout-style hypotheses at the fourth-pair-break.
Entries in this reading2 entries
Current trackPivot point45 readingsSupport and resistance170 readings

What a camarilla-grid is

A camarilla-grid is a five-pair ladder of resistance and support built from a completed lookback high, low, and close. The construction does not use the live bar.

The lookback that supplies those three prices is a user-chosen window of bars or a prior completed session. It is not a single fixed calendar rule.

Placing the inner-offsets

Resistance and support levels one through four sit equal distances above and below the lookback close. Those inner-offsets use 1.1 times the lookback-range divided by 12, 6, 4, and 2.

The lookback-range is the high-minus-low span of the chosen prior window, and it is the scale of the inner four pairs.

Adding the outer-ratio-pair

The fifth resistance equals the lookback close multiplied by lookback high over lookback low. The fifth support is that same distance reflected below the close.

Those two rungs are the outer-ratio-pair.

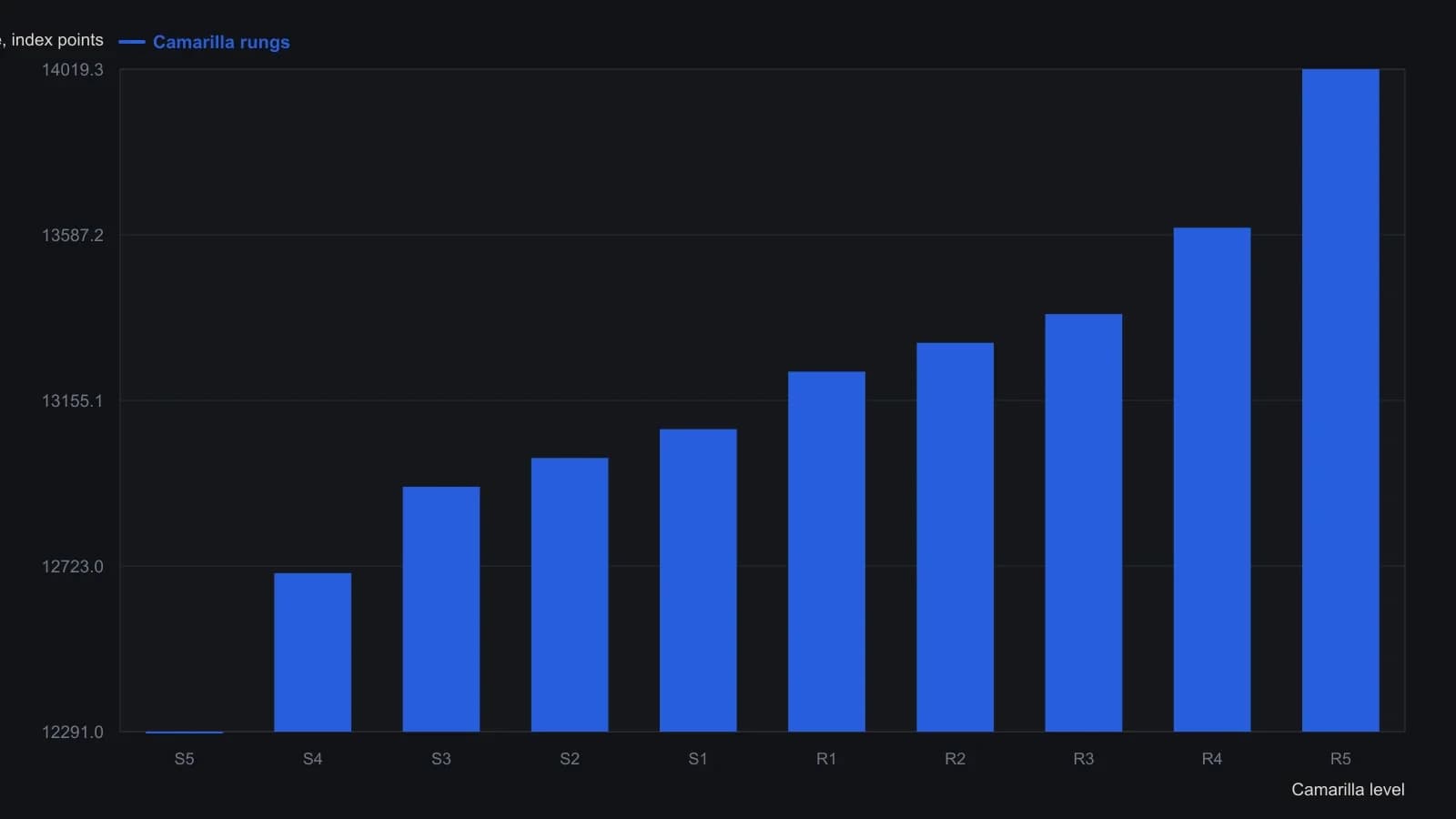

Camarilla rungs on daily $INDU from a completed lookback

Ten labeled camarilla rungs on the daily Dow, read off the eSignal price tags. Inner pairs R1–R4 and S1–S4 sit a fixed fraction of the lookback range away from the locked close; the outer R5/S5 pair uses the high-to-low ratio. Next session treats each pair as an area that price can confirm or kill.
Ten labeled camarilla rungs on the daily Dow, read off the eSignal price tags. Inner pairs R1–R4 and S1–S4 sit a fixed fraction of the lookback range away from the locked close; the outer R5/S5 pair uses the high-to-low ratio. Next session treats each pair as an area that price can confirm or kill.$INDU · D · 2012-12-17T00:00:00.000Z to 2013-01-14T00:00:00.000Z

Level prices are the printed axis tags on the eSignal daily $INDU chart (January 2013 window). They are exact to two decimals as labeled, not interpolated from the candles. The last print 13507.32 is the then-current index, not a camarilla rung.

Areas on the next session

The constructed levels are used as general support and resistance areas rather than as exact prices.

Relative to classic pivot spacing, the camarilla-grid sits closer together and is therefore applied on intraday charts.

A common multi-time-frame construction takes the previous session's daily high, low, and close and plots the resulting grid on the next session's intraday bars.

One grid, two hypothesis styles

The same grid can host fade-style hypotheses around the third pair and breakout-style hypotheses at the fourth pair. The third-pair-band is the S3 and R3 zone used to frame inside-band versus outside-band hypotheses. The fourth-pair-break is the S4 and R4 rungs used to frame continuation hypotheses once price leaves the inner band.

One session-based application allows at most one trade per day and flattens remaining positions at the session close.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
