Drawing the Triangle pattern before Breakout confirmation and the Stop-loss order

A Triangle pattern is constructed from two converging trendlines that meet at an apex. This article teaches that construction first, then how Breakout confirmation is defined and how a Stop-loss order keeps the hypothesis honest.

  • A Triangle pattern is constructed from two converging trendlines, one through adjacent peaks and one through adjacent troughs, that meet at an apex.
  • The three named constructions are ascending, descending, and symmetrical, and each trendline needs at least two reversal points.
  • Breakout confirmation is the first decisive violation of one of the two trendlines and is the event the construction is meant to anticipate.
  • Waiting for the initial breakout before acting, then placing a Stop-loss order, is presented as the more conservative way to treat a false breakout.
Entries in this reading3 entries
Current trackTriangle pattern55 readingsStop-loss order144 readingsBreakout confirmation172 readings

How a Triangle pattern is drawn

A triangle is constructed from two converging trendlines, one through adjacent peaks and one through adjacent troughs, that meet at an apex.

Each trendline needs at least two reversal points. More approaches without a lasting excursion outside the lines strengthen the construction.

Ascending, descending, and symmetrical constructions

The three named constructions are ascending (flat highs, rising lows), descending (flat lows, falling highs), and symmetrical (neither side horizontal).

What counts as Breakout confirmation

A breakout is the first decisive violation of one of the two trendlines and is the event the construction is meant to anticipate.

A Stop-loss order after the first breakout

Waiting for the initial breakout before acting, then placing a protective stop, is presented as the more conservative way to treat a false breakout.

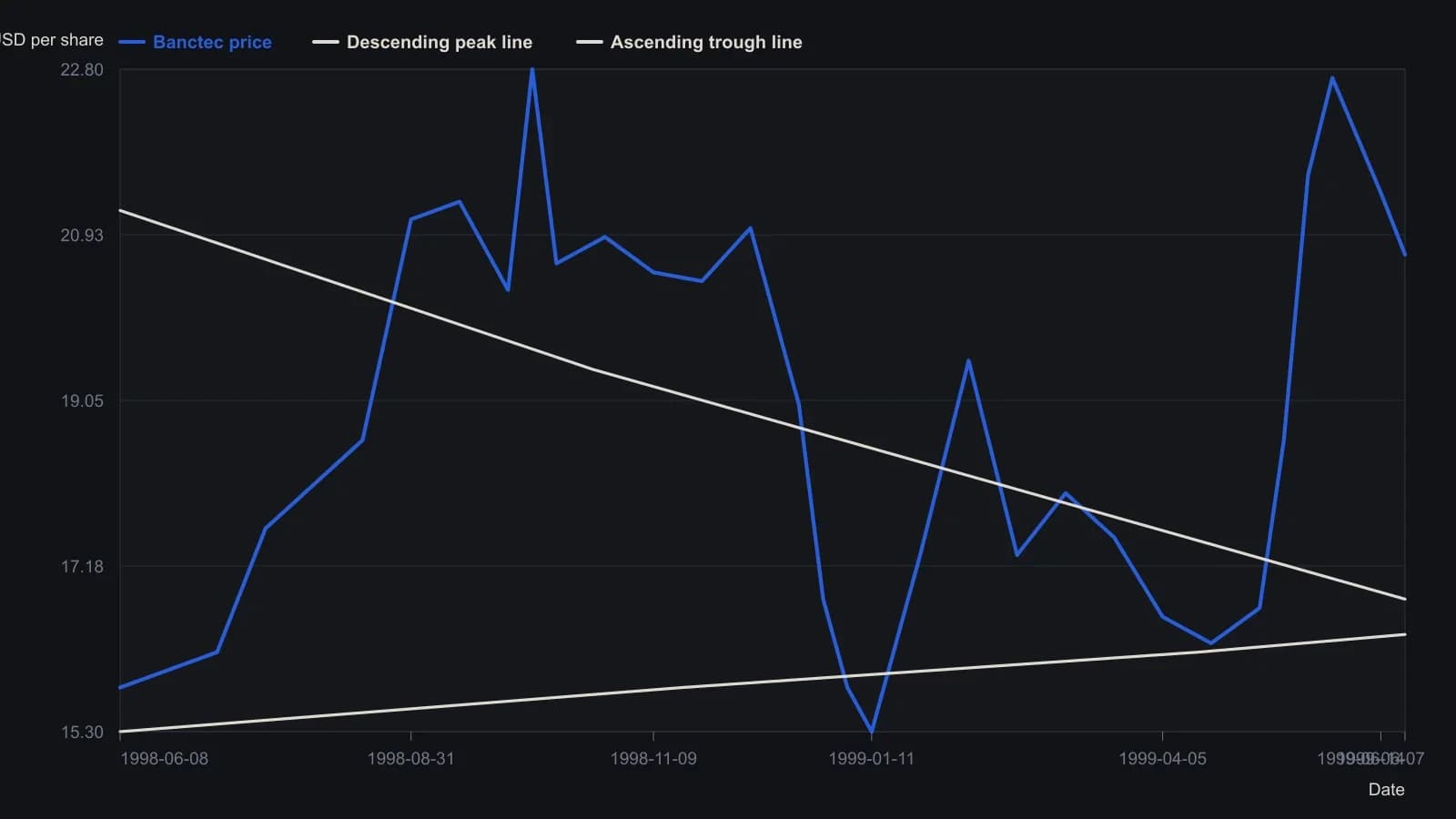

Banctec symmetrical triangle and the May upside breakout

Banctec trends up into the autumn, then coils through winter between a falling line of highs and a rising line of lows. The May thrust through the upper line is the continuation breakout the pattern is drawn to catch. Weekly-ish prices were read from the published MetaStock pane, not from a printed table.
Banctec trends up into the autumn, then coils through winter between a falling line of highs and a rising line of lows. The May thrust through the upper line is the continuation breakout the pattern is drawn to catch. Weekly-ish prices were read from the published MetaStock pane, not from a printed table.Banctec · Daily · 1998-06-01T00:00:00.000Z to 1999-06-30T00:00:00.000Z

Closes are digitized from the raster to about one tenth of a point. The source prints a 0.5 price grid and does not list a numerical series, so the path is sampled rather than bar-by-bar.

Projecting a target and trailing the stop

A common target construction measures the widest vertical span of the triangle and projects that distance from the breakout point in the breakout direction.

After price has moved a meaningful distance from the broken trendline, the stop used against a false breakout can be trailed, then tightened as the projected target is approached.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
