Eleven-bar commodity channel index from typical price and mean deviation

A commodity channel index is a three-part ratio: typical price, a simple-average center, and a 0.015-scaled mean-deviation term. An 11-period worksheet shows the same steps, and the lookback can be chosen by the user.

  • A commodity channel index can be constructed with any lookback length the user chooses.
  • Typical price is the arithmetic mean of a bar's high, low, and close, and an 11-period version then takes a simple moving average of those typical prices.
  • Mean deviation averages the absolute differences between the current moving average and each typical price in the lookback.
  • The index equals today's typical price minus today's moving average, divided by 0.015 times today's mean deviation.
Entries in this reading1 entry
Current trackCommodity Channel Index40 readings

A commodity channel index is a ratio that places typical-price distance from a moving-average baseline over a scaled mean-deviation term. A commodity channel index can be constructed with any lookback length the user chooses. Lookback is the number of observations used for both the simple moving average and the mean-deviation window.

Typical price

Each bar's typical price is the arithmetic mean of high, low, and close.

The 11-period center and mean deviation

An 11-period version next takes a simple moving average of those typical prices over the same 11 observations.

The 11-period mean deviation averages the absolute differences between the current moving average and each of the last 11 typical prices. Mean deviation is the average absolute gap between the current moving-average baseline and each typical price inside the lookback.

The scaled ratio

The index equals today's typical price minus today's moving average, divided by 0.015 times today's mean deviation. The scaling constant is the 0.015 factor applied to mean deviation in the denominator of the ratio.

An 11-period worksheet

The same 11-period construction can be arranged as a worksheet that produces a commodity channel index series on the Dow Jones Industrial Average.

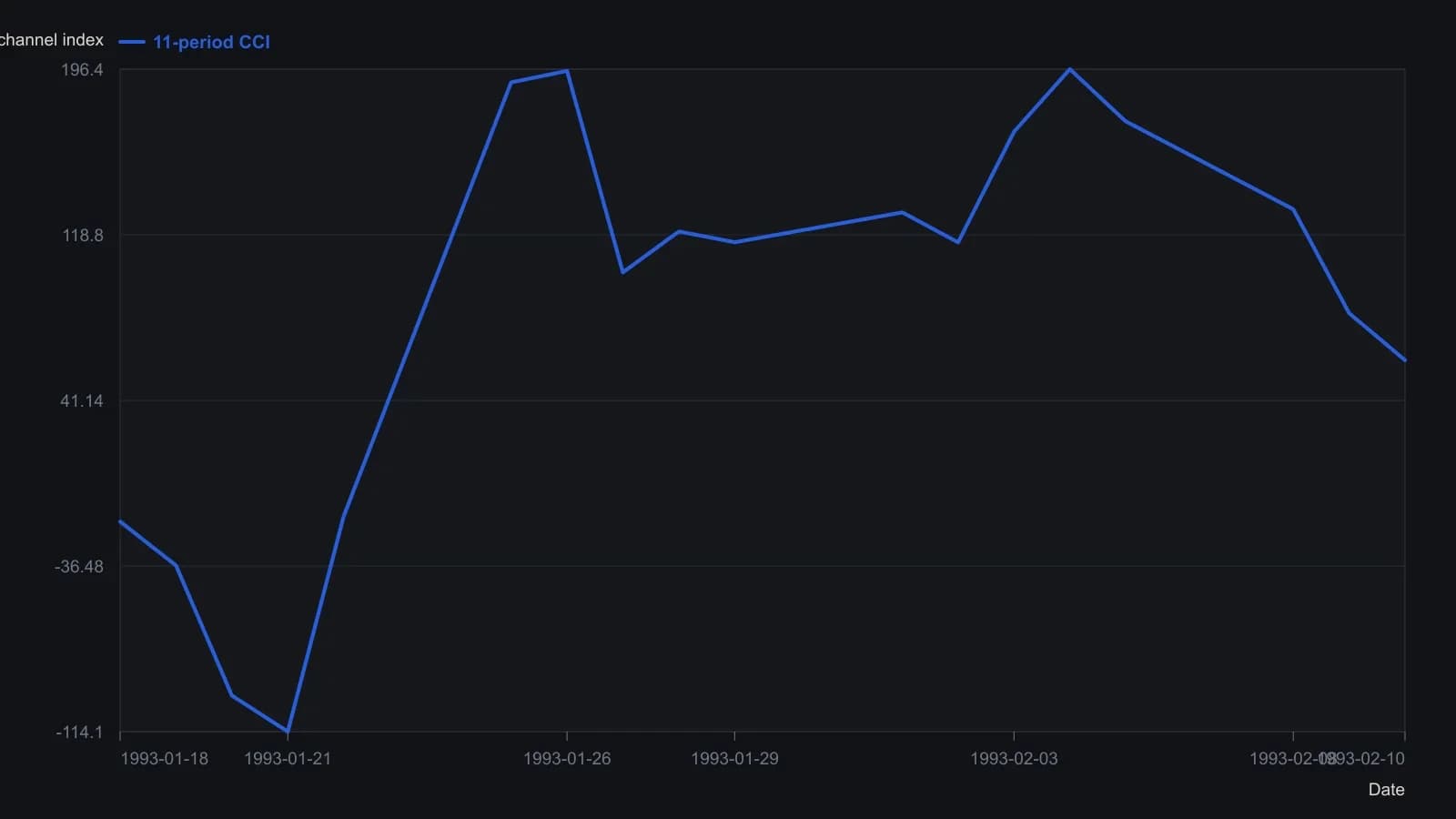

Eleven-period CCI on the Dow Jones Industrial Average

The 11-bar CCI on the Dow starts slightly negative, falls to about −114 on 21 January, then flips sharply positive and holds between +60 and +196 into early February. Every point is the CCI column of the sidebar Excel worksheet, not a curve traced off a printed chart.
The 11-bar CCI on the Dow starts slightly negative, falls to about −114 on 21 January, then flips sharply positive and holds between +60 and +196 into early February. Every point is the CCI column of the sidebar Excel worksheet, not a curve traced off a printed chart.Dow Jones Industrial Average · daily · 1993-01-18T00:00:00.000Z to 1993-02-10T00:00:00.000Z

The worksheet uses an 11-day lookback on typical price, so CCI is blank until 18 January 1993. The mean-deviation term is scaled by Lambert’s 0.015 constant.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
