Building the commodity channel index from typical price

Rebuild the commodity channel index as successive series: a typical price from high, low, and close, a simple moving average over a chosen lookback, and a mean-deviation denominator scaled by 0.015.

  • The first series is a typical price formed by adding the period high, low, and close and dividing by 3.
  • A simple moving average of those typical prices uses any lookback the user selects; an 11-period window is one illustration.
  • Mean deviation averages the absolute differences between the current moving average and each typical price inside that same window.
  • The index is a ratio: latest typical price minus latest moving average, divided by mean deviation multiplied by 0.015.
Entries in this reading1 entry
Current trackCommodity Channel Index40 readings

Assembling the index in order

Editorial framing: this note treats the commodity channel index as a classroom assembly problem. Rebuild the typical price series, the lookback average, and the scaled mean-deviation denominator so the constant 0.015 is a visible design choice rather than a black-box setting. That framing is a TradersWeek interpretation of the construction, not a statement from the archive workflow.

The archive workflow builds the commodity channel index as a ratio from those intermediate series. The lookback period may be any length the user selects, and the same window is used for both the moving average and the mean deviation.

Typical price as the first series

The first constructed series is a typical price. A typical price is a single period value formed by averaging that period's high, low, and close. In this workflow the average is formed by adding the period high, low, and close and dividing by 3.

A lookback average of typical prices

The next series is a simple moving average of those typical prices over the chosen lookback. The simple moving average is the unweighted average of typical prices inside that window. The archive workflow illustrates the step with an 11-period window.

Mean deviation in the same window

Mean deviation is taken over the same lookback period as the moving average. It averages the absolute differences between the current moving average and each of the typical prices inside that window.

The finished ratio

The commodity channel index is a ratio that compares how far the latest typical price sits from its lookback average, scaled by mean deviation. The numerator is the latest typical price minus the latest moving average. The denominator is the current mean deviation multiplied by the constant 0.015. That constant is the scaling factor applied to mean deviation.

Spreadsheet columns for each series

Each intermediate series can be stored in successive spreadsheet columns so the finished ratio is recomputed from those cells. The typical price, the simple moving average, and the mean deviation stay available as inputs to the ratio.

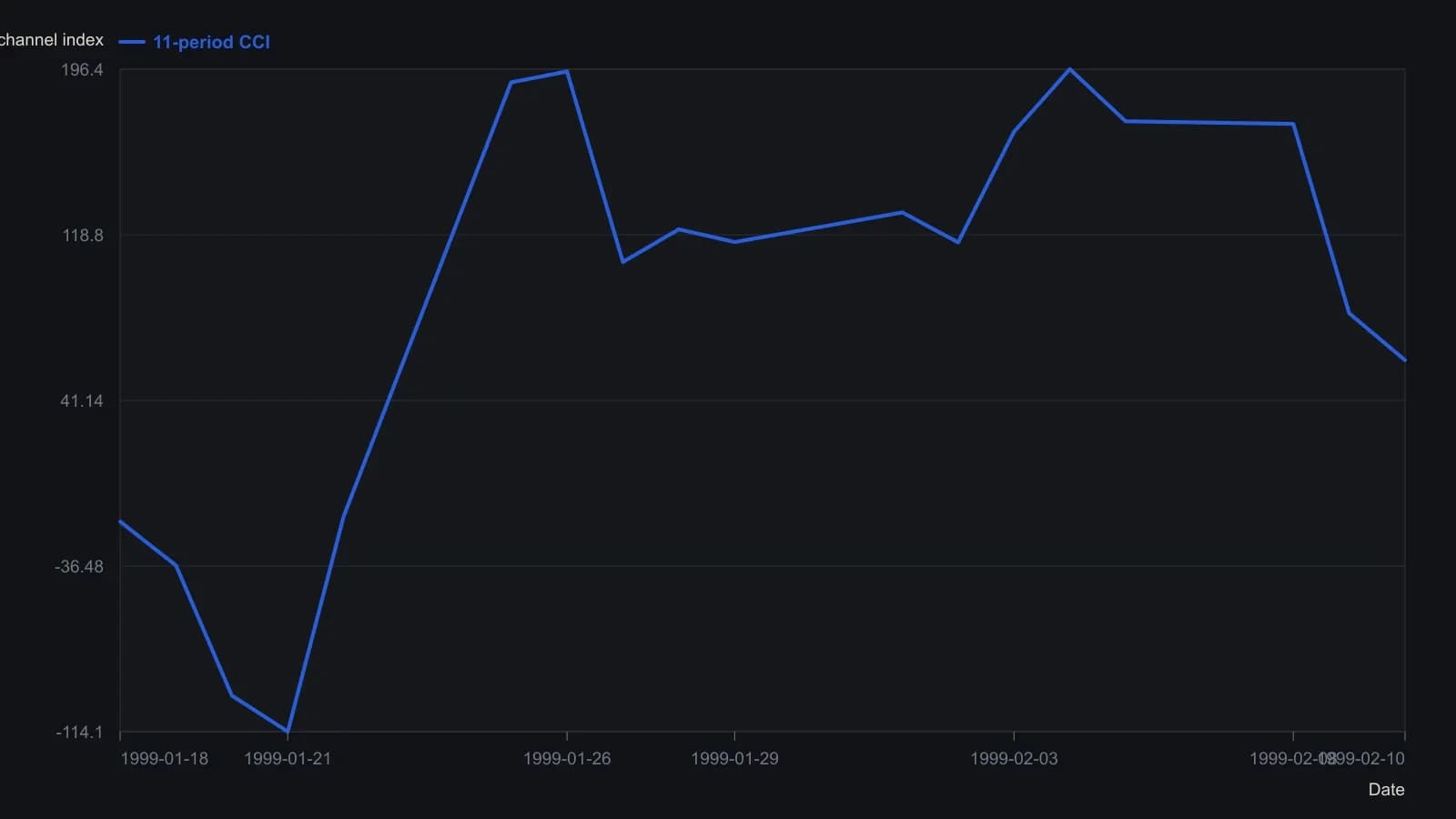

11-period CCI on the Dow Jones Industrial Average

Once the 11-day window fills, CCI swings from deeply negative into a strong overbought stretch as typical price pulls away from its moving average. Values are taken cell by cell from the source spreadsheet, not traced from a plot.
Once the 11-day window fills, CCI swings from deeply negative into a strong overbought stretch as typical price pulls away from its moving average. Values are taken cell by cell from the source spreadsheet, not traced from a plot.Dow Jones Industrial Average · daily · 1999-01-18T00:00:00.000Z to 1999-02-10T00:00:00.000Z

Lookback is 11 sessions. CCI uses (typical price minus the 11-day SMA) divided by 0.015 times the 11-day mean deviation. Columns F–H start on the 11th row because the window is not yet full.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
