Constructing the true strength index from double-smoothed momentum

The true strength index applies the same two-stage exponential moving average to signed and unsigned one-period price changes, then forms their period-by-period ratio. The construction smooths one-period momentum rather than the price series.

  • The true strength index is constructed by exponentially smoothing one-period price changes, not by smoothing the price series itself.
  • Signed one-period momentum and its absolute value each receive a first-stage 14-period exponential moving average, then a second 3-period pass that completes the double-smoothing.
  • The twice-smoothed signed change is the directional numerator and can be used by itself as a directional indicator.
  • The finished true strength index is the period-by-period ratio of that numerator to the same 14-then-3 sequence applied to the absolute one-day change.
Entries in this reading2 entries
Current trackExponential smoothing183 readingsMoving average597 readings

Smoothing change, not price

The true strength index is constructed by exponentially smoothing one-period price changes, not by smoothing the price series itself. Those changes are one-period momentum: the signed change from the previous sampling interval to the current one. The matching unsigned magnitude is the absolute value of that change.

The exponential moving average

An exponential moving average is a recursive moving average that blends the newest observation with the prior average. It is a convex blend of the newest observation and the previous average, with a smoothing constant strictly between 0 and 1. That smoothing constant can be taken from a simple moving-average length n as 2 divided by n plus 1.

First-stage averages on both series

Both the signed one-day change and its absolute value receive a first-stage 14-period exponential moving average whose smoothing constant is 2/(14+1), or 0.1333.

The double-smoothing step

Each first-stage series is then passed through a second, 3-period exponential moving average whose smoothing constant is 2/(3+1), or 0.50. That second pass is double-smoothing: a second exponential moving average applied to the output of the first exponential moving average, rather than to the raw series.

Directional numerator and matching denominator

The twice-smoothed signed change is the directional numerator of the index and can also be used by itself as a directional indicator. The denominator is the same 14-then-3 exponential sequence applied to the absolute one-day change.

The finished ratio

The finished true strength index is the period-by-period ratio of those two double-smoothed series: twice-smoothed signed one-period changes over twice-smoothed absolute one-period changes.

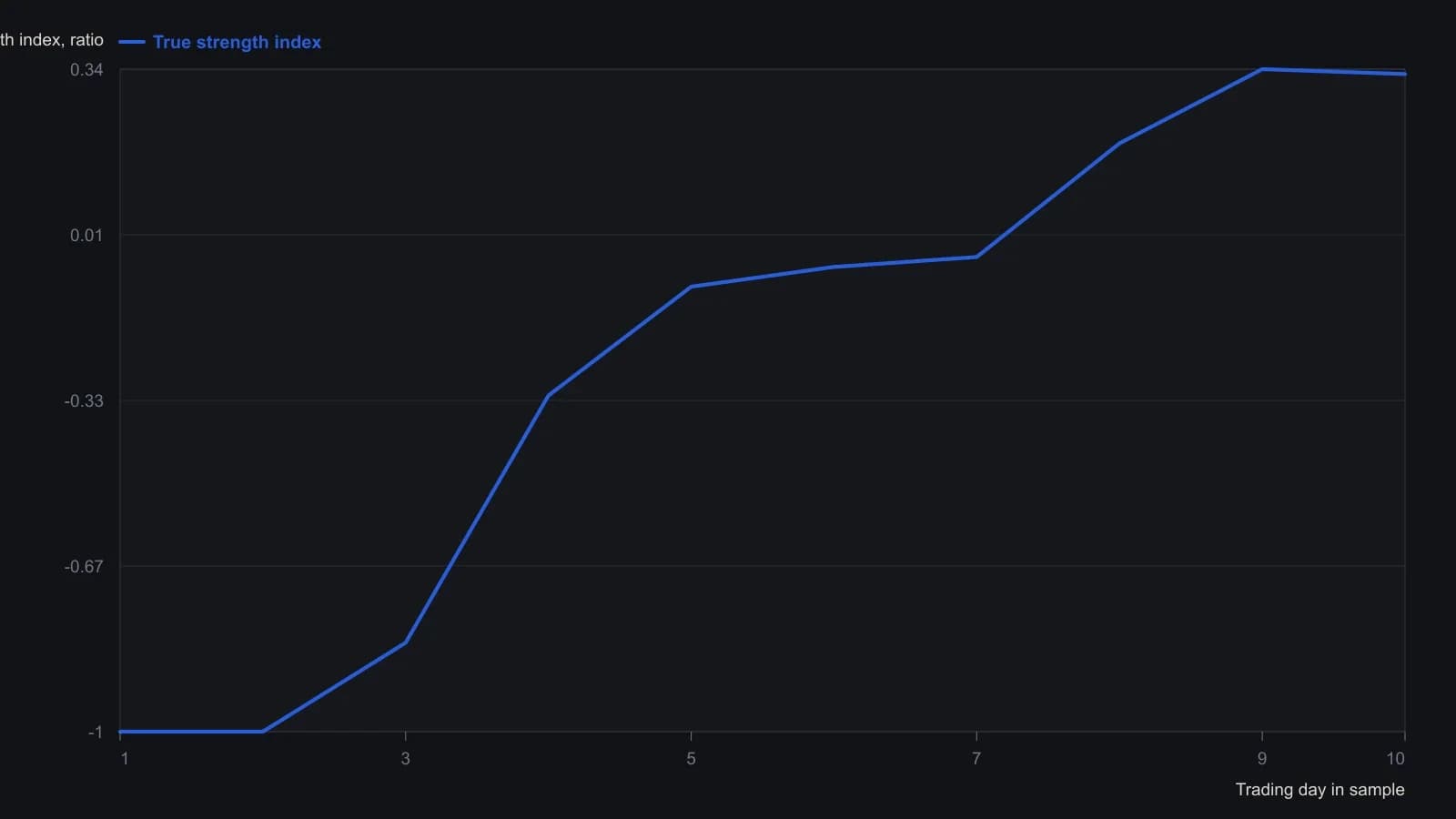

True strength index from the 14-day then 3-day double smooth

The oscillator starts pinned at −1.00 while the two double-smoothed series have equal magnitude, then climbs and crosses through zero after the +5.6 up session, finishing near +0.33. Every point is the finished TSI column in the sidebar spreadsheet: each session’s 3-day EMA of the 14-day EMA of one-day change, divided by the same two averages applied to the absolute change.
The oscillator starts pinned at −1.00 while the two double-smoothed series have equal magnitude, then climbs and crosses through zero after the +5.6 up session, finishing near +0.33. Every point is the finished TSI column in the sidebar spreadsheet: each session’s 3-day EMA of the 14-day EMA of one-day change, divided by the same two averages applied to the absolute change.21 January – 1 February 1991 · 1991-01-21T00:00:00.000Z to 1991-02-01T00:00:00.000Z

First-stage alpha is 2/(14+1)=0.1333; second-stage alpha is 2/(3+1)=0.50. Opening EMAs are seeded with that day’s one-period momentum. Two successive printed rows both carry the date 910125, so the series is plotted in table order rather than on a calendar axis. The table stores the raw F/H ratio, not the common 100× scaling.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
