Constructing Gann fans as currency support and resistance

A Gann fan is drawn from a significant high or low after the chart is squared to a 1x1 price-time ratio, and each ray is read as sequential support or resistance rather than as a simple retracement mark.

  • Time targets start from a 360-unit circle time map. Selected degree intervals and the 13-, 26-, 39-, and 52-week marks are projected from a significant high or low as candidate reversal dates.
  • The one-by-one line is the 45-degree diagonal of a price-time square. Companion Gann-fan rays use fixed price-time ratios, and the flatter 2x1 through 8x1 set is preferred over the steep 1x2 through 1x8 set.
  • A fan break through one ray is treated as a move toward the next ray, so each line functions as sequential support or resistance.
  • Currency examples show price tracking the 45-degree line into a low, then treating later fan lines as resistance. Overlapping fans from more than one origin are treated as stronger than a single set, on both daily and weekly charts.
Entries in this reading3 entries
Current trackGann angles47 readingsTrendline139 readingsSupport and resistance227 readings

A Gann fan is a family of rays from a significant high or low at fixed price-time ratios. Those rays are read as sequential support and resistance rather than as simple retracement marks.

Project dates from the circle time map

Time-target construction starts from a 360-unit circle time map and projects selected degree intervals from a significant high or low as candidate reversal dates. Quartering a year drawn on that circle produces 13-, 26-, 39-, and 52-week marks treated as candidate reversal dates from a significant peak or trough.

The emblem construction inscribes a square and a triangle in the circle so they share one corner. That emblem pointer must sit on a significant high or low and yields five candidate reversal targets. Degree-based time targets can be rescaled by 365/360, or about 1.0139, to align circle degrees with calendar days.

Square the chart to a one-by-one line

The primary trendline is the 45-degree diagonal of a price-time square, defined by a 1x1 price-time ratio. That one-by-one line is the primary trend trajectory. Departures from that line are read as strengthening or weakening of the trend.

Add the companion fan rays

Companion fan lines are built from fixed price-time ratios that map to 82.5, 75, 71.25, 63.75, 45, 26.25, 18.75, 15, and 7.5 degrees. The flatter 2x1 through 8x1 set is preferred over the steep 1x2 through 1x8 set.

Gann fan ray angles by price-time ratio

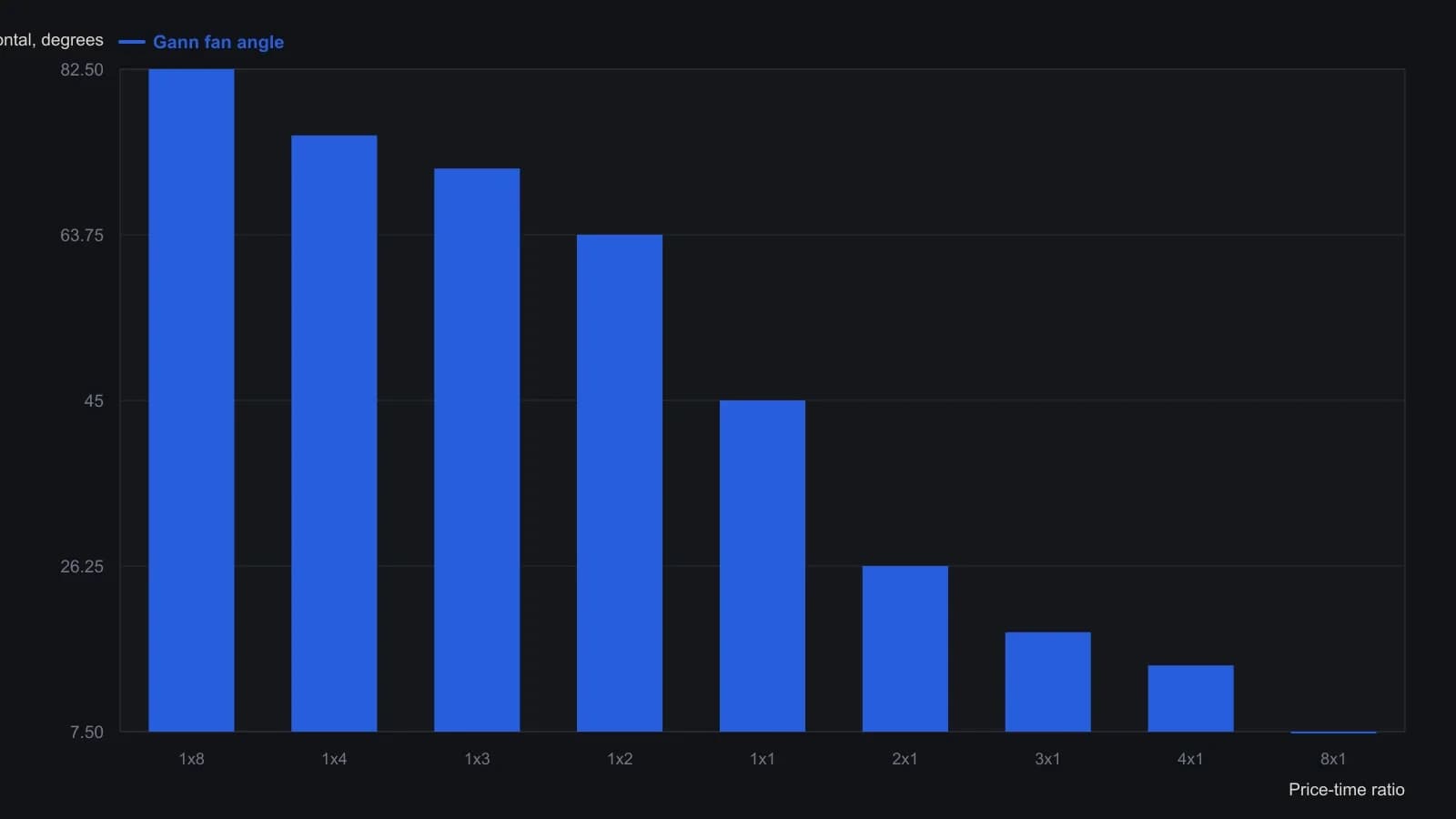

Once a currency chart is squared, the 1x1 ray is the 45-degree spine and every other listed ratio is a named support or resistance test the next swing can invalidate. The degrees are the exact column from Luca’s Gann ratio table in the article, not a digitized candle path.
Once a currency chart is squared, the 1x1 ray is the 45-degree spine and every other listed ratio is a named support or resistance test the next swing can invalidate. The degrees are the exact column from Luca’s Gann ratio table in the article, not a digitized candle path.

The article treats the steep 1x2, 1x3, 1x4 and 1x8 rays as rarely useful; breaks are read along the flatter 2x1, 3x1, 4x1 and 8x1 lines toward the next ray.

Read each ray as the next support or resistance test

A break of one fan line is treated as a signal that price is likely to travel toward the next fan line, so each ray functions as sequential support or resistance. A fan break is that traverse through one ray, read as a move toward the next ray in the same fan.

Currency charts and overlapping fans

Currency-chart examples show price tracking the 45-degree line into a low, then treating later fan lines as resistance that either holds or, if broken, opens a test of the next line. Overlapping fans drawn from more than one origin are treated as stronger support and resistance than a single fan set. The same construction is shown on both daily and weekly currency charts.

Educational research material, not investment advice. Historical source context does not establish present-day performance.
