Chart Settings controls how a chart looks and which panels surround it — candle style, price scale, on-chart marks, grid, colours and more. Every change applies instantly and is saved in your browser, so your layout is waiting for you next time.
Open it from the gear icon in the top toolbar. The panel is draggable and grouped into five collapsible sections. A Restore Defaults button at the bottom resets everything.
gear icon in the top toolbar and the open Chart Settings panel
Style
Sets the core look of the price series and its scale.
- Candle Type — how each bar is drawn: Candle Solid (filled bodies, the default), Candle Stroke (hollow bodies), Up Stroke (only rising candles hollow), Down Stroke (only falling candles hollow), OHLC (open-high-low-close bars), or Area (a filled line built from closing prices).
- Price Axis — how the vertical scale is calculated: Normal (absolute price), Percentage (percent change across the visible range), or Log (logarithmic, so equal percentage moves take equal space — handy over very large ranges).
- Scale Position — put the price scale on the Right (default) or the Left.

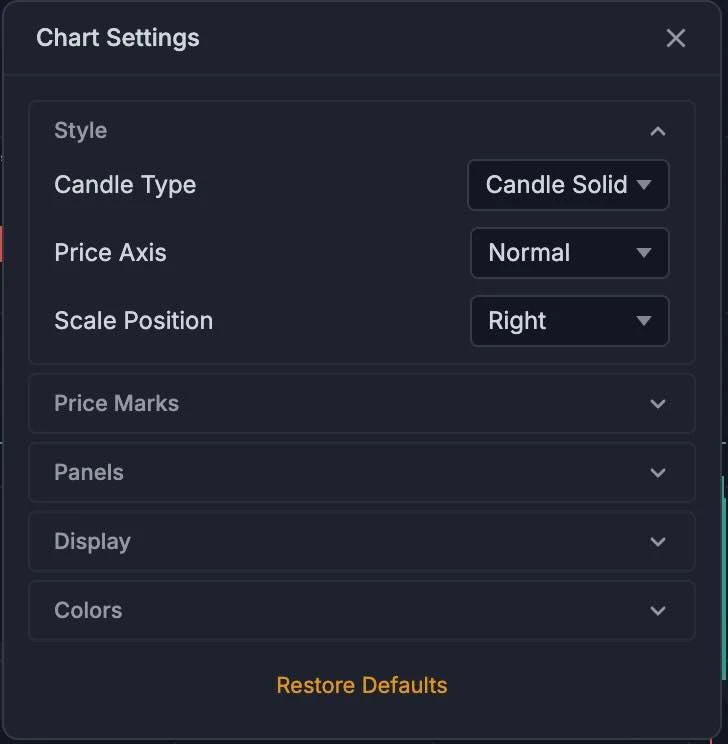

Style section expanded
Price Marks
Labels drawn directly on the price scale.
- Last Price — the live price tag on the axis (on by default).
- High Price — marks the highest point of the visible range.
- Low Price — marks the lowest point of the visible range.
- Indicator Values on Scale — shows each indicator's latest value as a tag on the price axis (off by default).

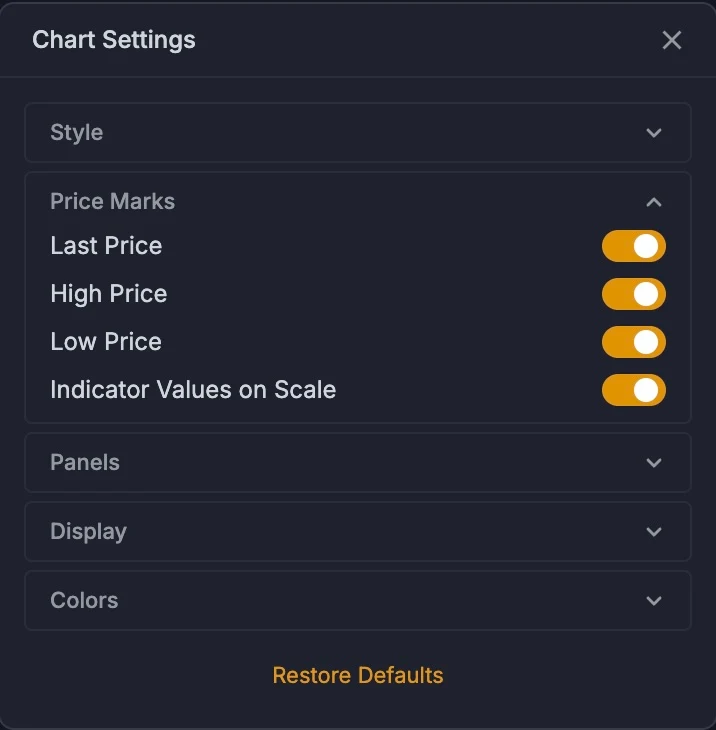

Price Marks section expanded
Panels
Show or hide the widgets around the chart.
- Volume — the volume histogram beneath price (on by default on desktop, off on mobile to save space).
- Session Overlay — shades trading sessions on the chart (off by default).
- Watchlist — the symbol-list panel.
- Order Panel — the order-entry panel.
- Trading — the paper-trading panel.
- Floating Trade Widget — a compact, movable buy/sell widget over the chart (off by default).

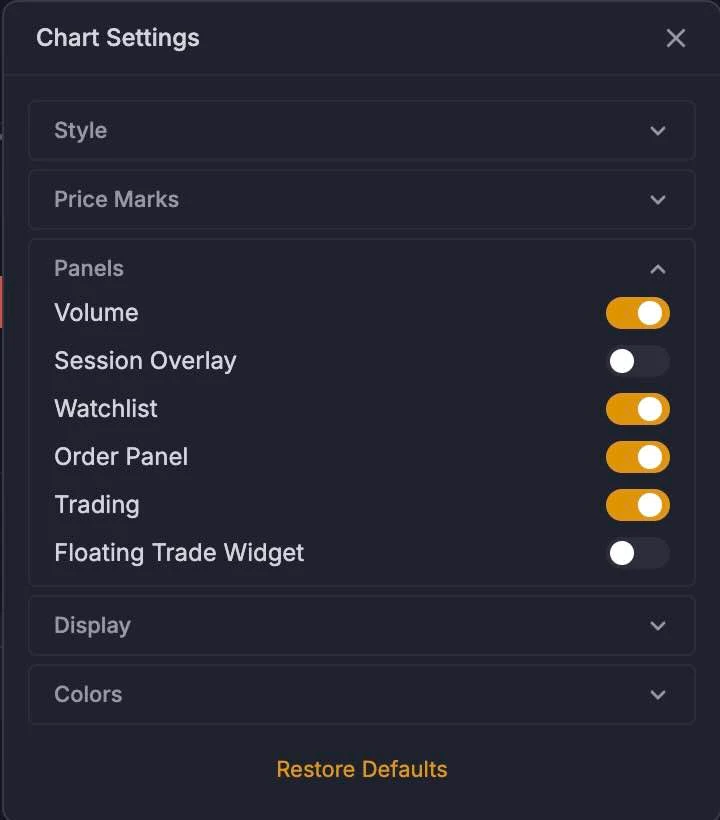

Panels section expanded
Display
Toggles for the chart's structural elements.
- Grid — the background grid lines.
- Crosshair — the crosshair that follows your cursor.
- Tooltip — the OHLC tooltip on the candle under the cursor (off by default; indicator legends stay visible regardless).
- Price Axis — show or hide the vertical price axis.
- Time Axis — show or hide the horizontal time axis.
- Reverse Y — flip the price scale so it counts downward (occasionally useful for inverse instruments).

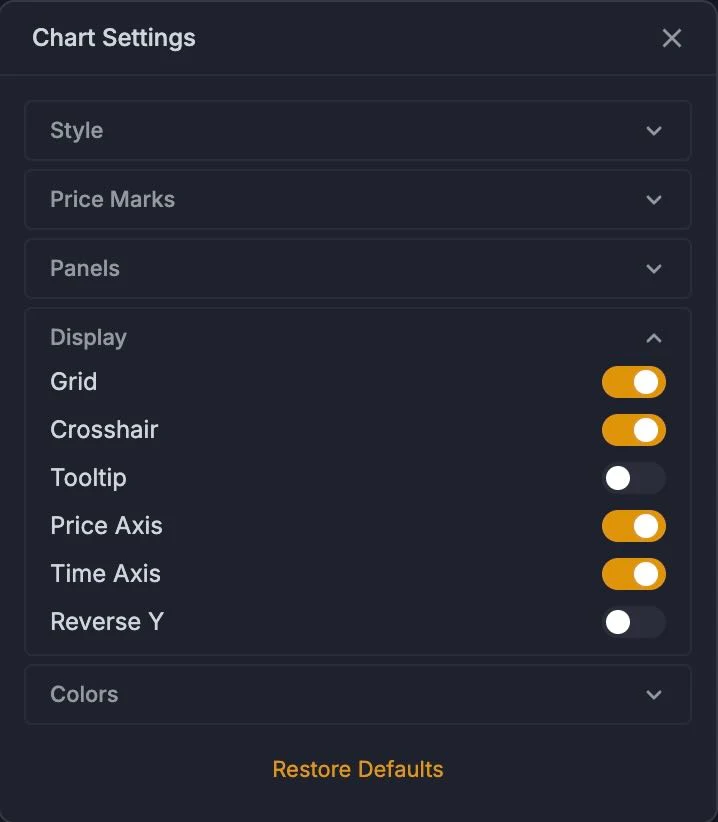

Display section expanded
Colors
Recolour the candles and grid to taste.
- Presets — one-click bull/bear palettes; pick one and both candle colours update.
- Bull Candle — custom colour for rising candles.
- Bear Candle — custom colour for falling candles.
- Grid — the grid-line colour.
- Reset Colors — return to the current theme's defaults.

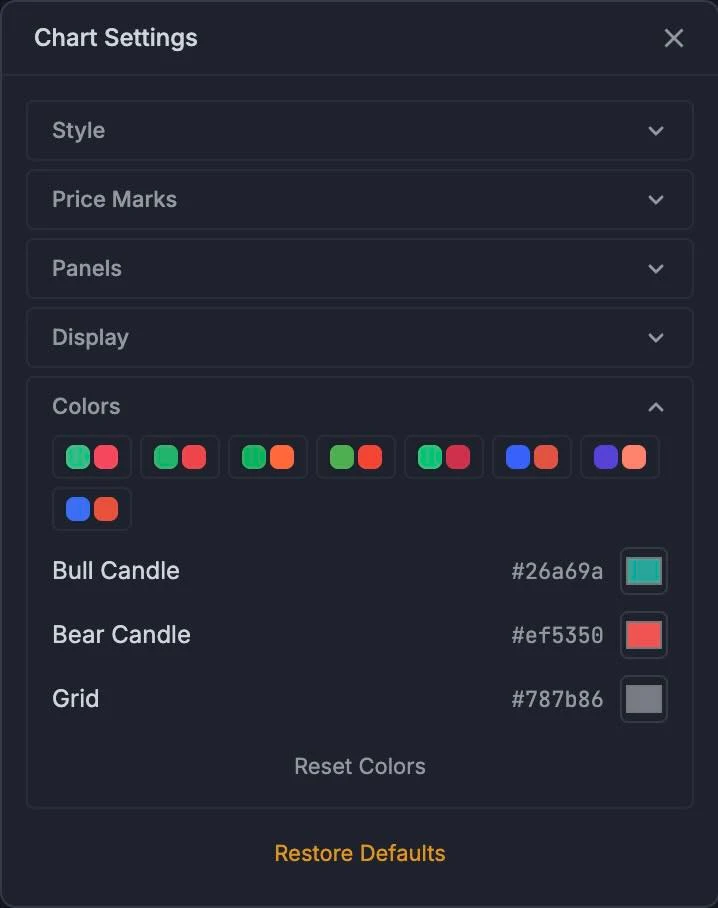

Colors section with presets and colour pickers
Restore defaults and saving
Restore Defaults resets every setting in the panel to its original value. All settings are stored in your browser, per device — clearing site data or switching browsers starts fresh.
Set it once, and every chart you open feels like yours.
