Assembling a recursive median oscillator as a two-stage adaptive filter
A recursive median is built as an exponential moving average of a five-bar median of the chosen price series. A high-pass stage then converts that result into a zero-centered oscillator meant to be compared with the relative strength index on the same chart, and with ordinary moving-average calculations that extreme observations can distort.
- The recursive median stage is an exponential moving average of a five-bar median of the chosen price series, meant to resist extremes that distort ordinary averaging.
- The first smoothing coefficient comes from a cosine-and-sine formula whose only free parameter is the low-pass period, which defaults to 12.
- A high-pass stage with a period that defaults to 30, and a 0.707 scaling inside the same trigonometric formula, converts the recursive median into a zero-centered oscillator.
- Implementations expose the low-pass period, high-pass period, and median window as configurable inputs, and the oscillator is meant to be compared with the relative strength index as an unfiltered baseline.
What the construction does
The recursive median stage is built as an exponential moving average of a five-bar median of the chosen price series. That median-first step is motivated as a way to remove extreme price or volume observations that distort ordinary averaging calculations.
A moving average, in this setting, is a conventional averaging calculation that is easily distorted by those extremes. The median-first construction is meant to resist that distortion.
The recursive median stage
The first stage takes a five-bar median of the chosen price series and applies an exponential moving average to that median. The first smoothing coefficient is computed from a cosine-and-sine formula whose only free parameter is the low-pass period, defaulting to 12.
An adaptive filter, as the term is used here, is a recursive smoother whose coefficients are computed from chosen lookback periods so the output can track a series with less lag than a simple average.
The high-pass stage
A second high-pass stage, parameterized by a high-pass period that defaults to 30, converts the recursive median into a zero-centered oscillator. The high-pass coefficient uses a 0.707 scaling inside the same trigonometric formula used for the low-pass coefficient.
Comparing the oscillator with familiar baselines
The resulting oscillator is intended to be compared with the relative strength index as an unfiltered baseline on the same chart. The relative strength index is a well-known bounded oscillator used here as that unfiltered comparison baseline for the recursive median construction.
A moving-average calculation on the same series remains the ordinary average that extreme price or volume observations can distort, which is the contrast the median-first construction is meant to provide.
Inputs the construction exposes
Implementations expose the low-pass period, high-pass period, and median window as configurable inputs, with the median window defaulting to 5.

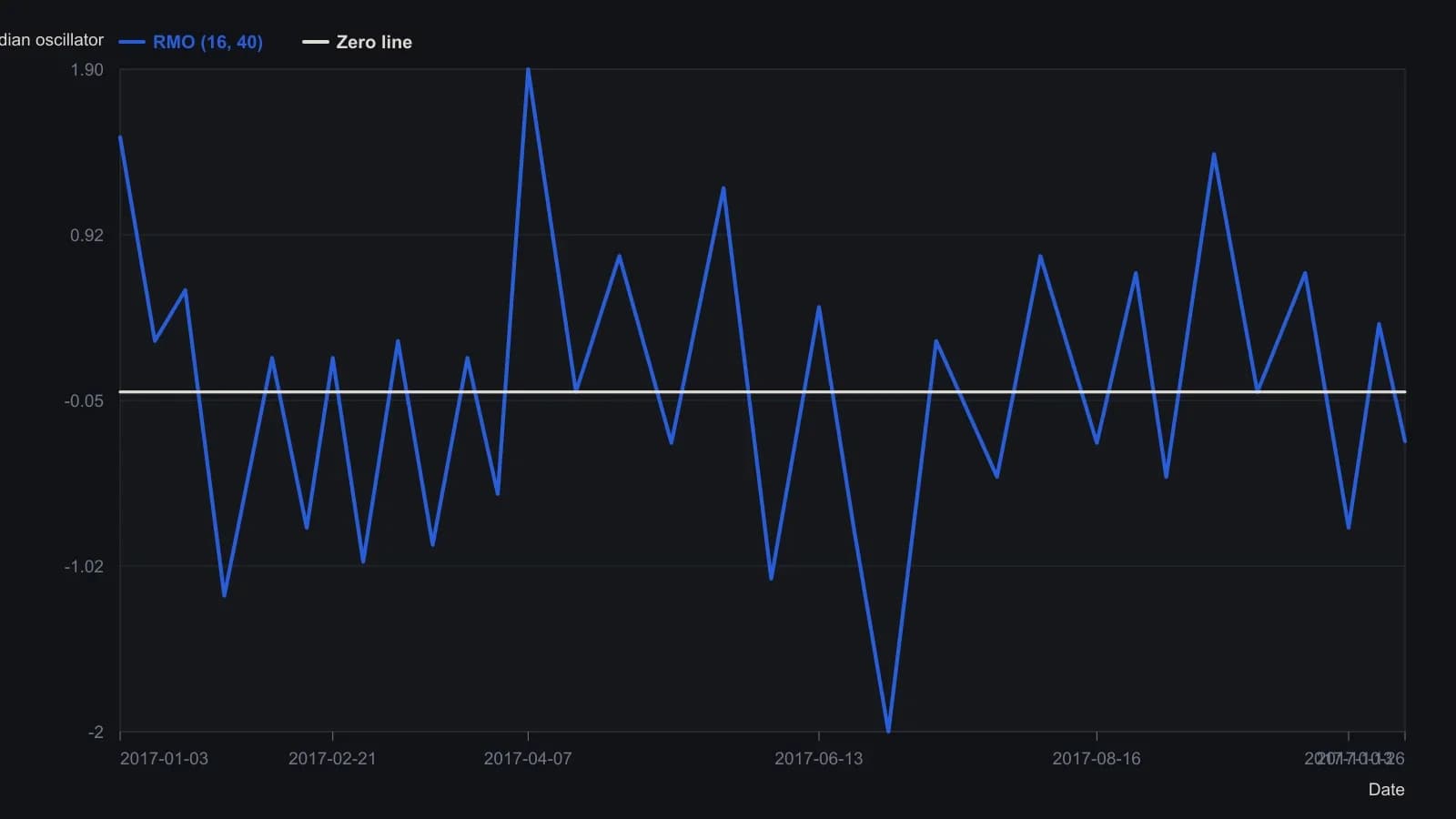

Recursive median oscillator on daily SPY
AmiBroker used a five-bar median with low-pass 16 and high-pass 40. Intermediate readings are approximate to one decimal; only the final labeled print is exact.
